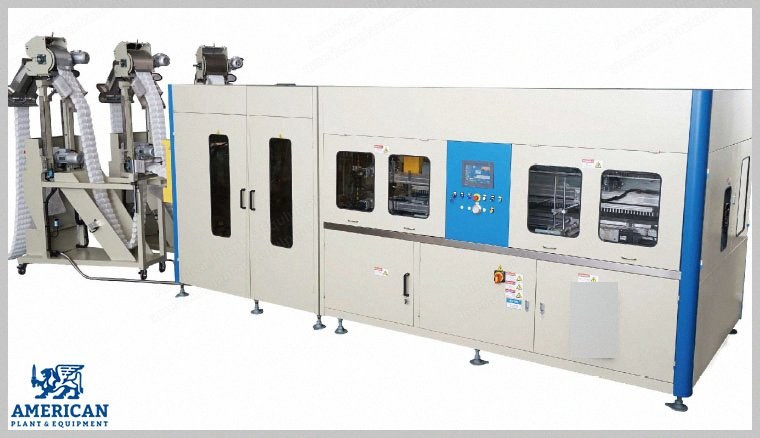

Description Overview Spring diameter: Ø 37 to 75 mm Pocket spring height: 55 to 250 mm Production capacity: 12 to 14 strings per minute One coiler will make one row of coils, and the assembler will accept 3 rows at the same time Hot Melt Glue System Hot melt application system: Nordson Capacity of glue tank: 15 kg, 18 kg, or 30 kg Gluing methods: continuous gluing mode, interrupted gluing mode Hot melt glue specifications: uses pellets or pieces Viscosity at 125 °C: 6100 cps Viscosity at 150 °C: 2300 cps Viscosity at 175 °C: 1100 cps Softening point: 85 ± 5 °C Assembling Features Electronically controlled assembling platform Can assemble zoned tape Can assemble zoned mattress Can be adjusted by operator for different numbers of turns Raw Materials Fabric density: 65 to 80 g/m Fabric width: 450 to 2200 mm Inner diameter of fabric roll: minimum 60 mm Outer diameter of fabric roll: maximum 600 mm Utilities and Power Air consumption: 0.3 cubic meters per minute Air pressure: 0.6 to 0.7 mpa Total power: 15 kW Voltage: 480 volts, 3-phase, 60 or 50 Hz (as per customer) Input current required: 25 amps Normal operating temperature: +5 °C to +35 °C Weight Weight: approximately 4500 kg
