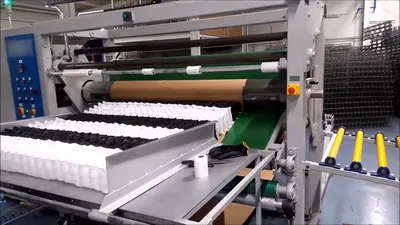

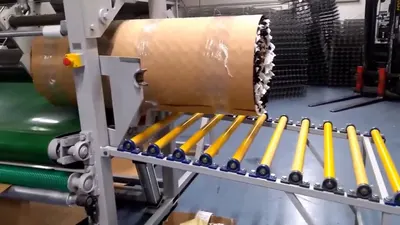

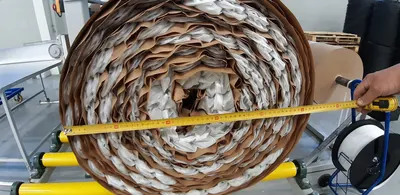

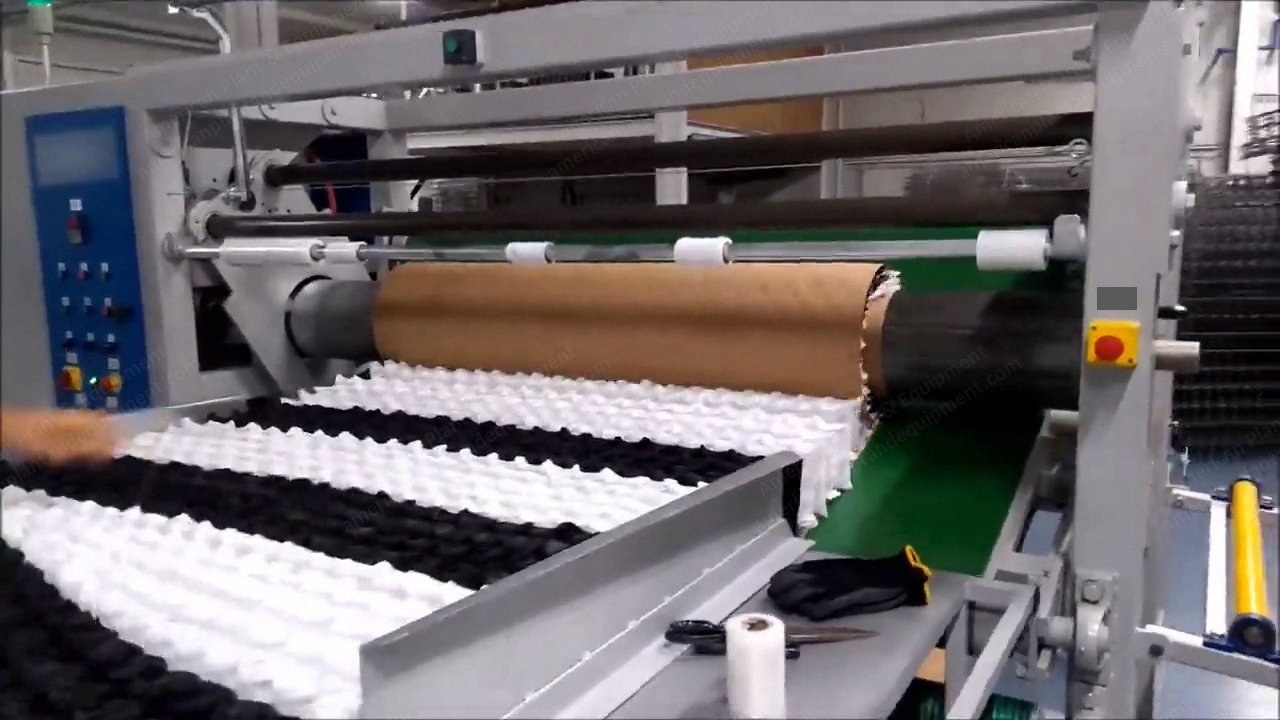

Description Overview For rolling up pocket springs and Bonnell springs Maximum roll width: 2000 mm Maximum roll diameter: 700 mm Packing 10 springs of 2000 mm length yields roll diameter of 550 mm Feed table included Specifications Roll speed control allows smooth rolling up of springs By manipulating air-pressure, it allows for adjustable paper tension compression With electric roll ejector, 35 second ejection time With stability regulation feature for roller Paper pressure controlled by actuator Tape and extraction door opening Total power: 4 kW Intermittent power used for roll ejection: 3 kW Dimensions Height: 2500 mm Width (includes roll loader): 5000 mm Length (includes loading table and paper stand): 5000 mm Condition and notes For a spring unit 200 mm high, springs can be rolled but must be compressed with the pre-compression table Optional pre-compression table available for taller springs (such as 200 mm) Video available
