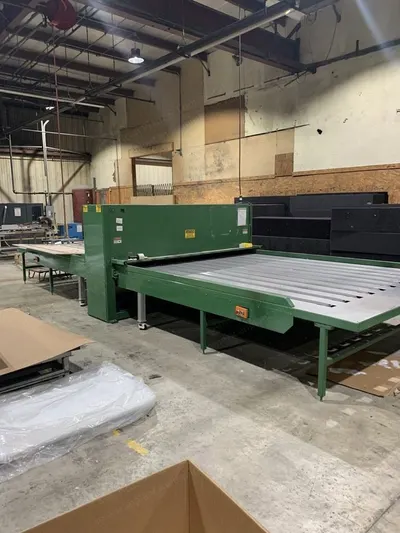

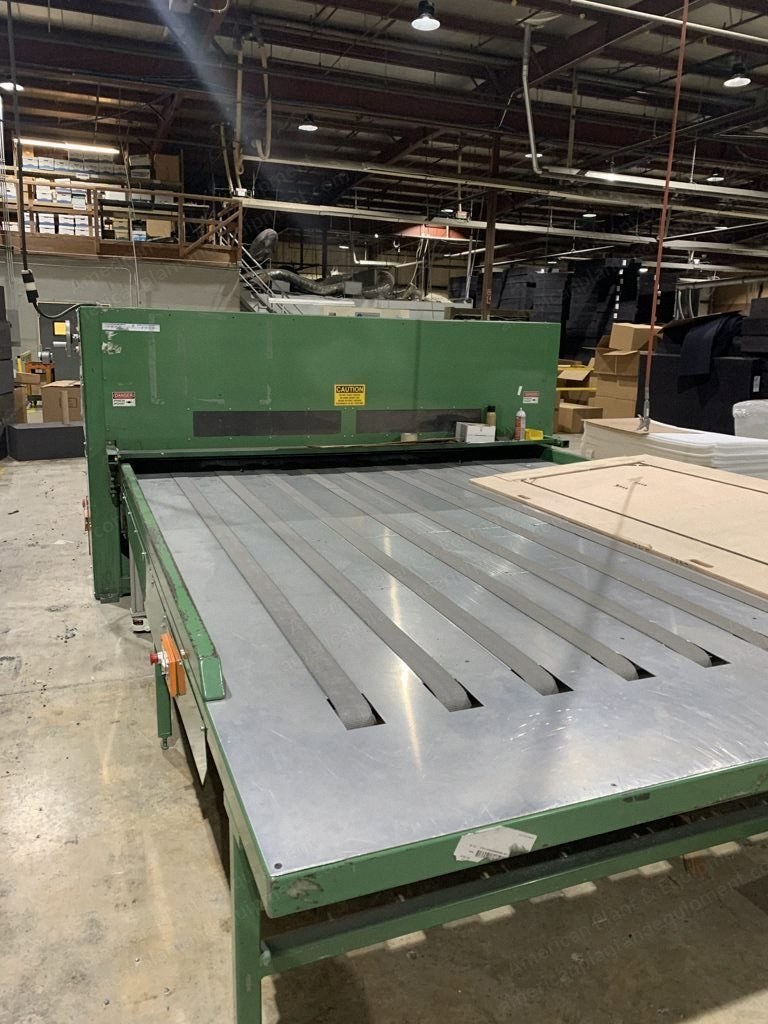

Die Cutters Inc., DC1-100, 2005, 100in Working Width, Flat Bed Die Cutter

Die Cutters Inc., DC1-100, 2005, 100in Working Width, Flat Bed Die Cutter Sold

Description

  1. Overview
    1. Make: Die Cutters Inc.
    2. Model: DC1-100
    3. Year: 2005
    4. Working width: 100 in
    5. Maximum die width: 105 in
    6. Maximum die length: unlimited
    7. Roller diameter: 12 5/8 in

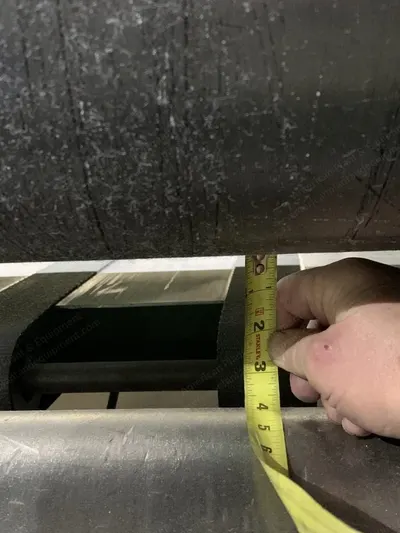

    8. Maximum opening height: 4 in
    9. Table height: 31 in
    10. Travel speed: 165 feet per minute
  2. Specifications
    1. Machine size: 105 in
    2. Floor space: 133 in x 312 in
    3. Height: 66 5/8 in
    4. Shipping weight: 7000 lbs
    5. Drive motors: 3 hp and 3 hp
    6. Start and stop controls: 4 locations
    7. Automatic/manual modes: yes, both
    8. Safety light curtain: yes
    9. Guarding meets OSHA regulations: yes
    10. With 0 to 30 second independent dwell timers
    11. Lockout/tagout on disconnect: yes
    12. Bonded urethane top cutting cylinder: yes
    13. Electrical specifications: 440 volts, 20 amp, 4-phase, 60 Hz and 220 volt, 35 amp, 3-phase, 60 Hz
    14. Weight: 3175
    15. Dimensions: 133x312x66.625 inches
    16. Roller diameter: 12 5/8 inches
  3. Condition
    1. Status: operational, was used to cut out mattress liners for a customer but the contract has been fulfilled and the machine is no longer needed
  4. Included
    1. Includes a spare neoprene roller
