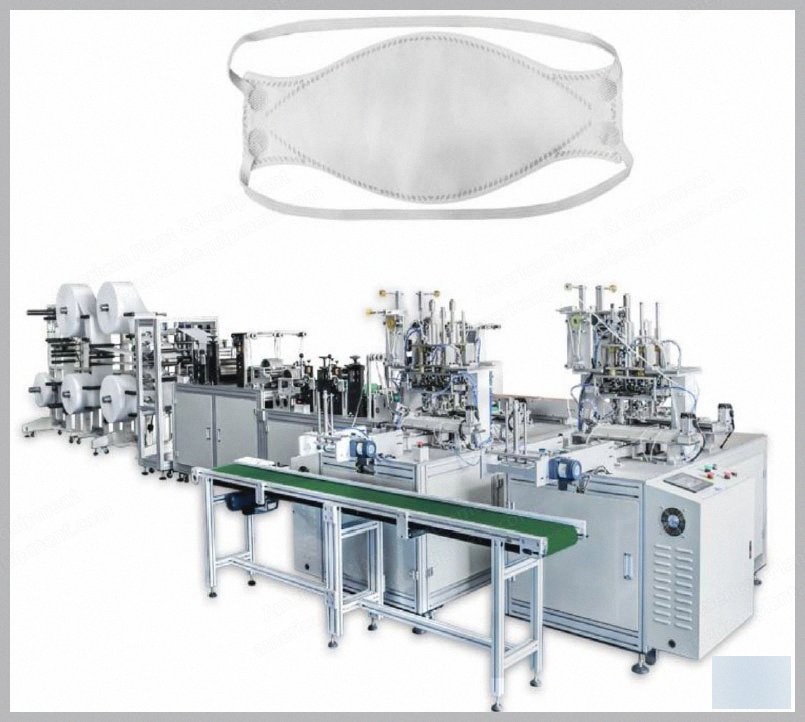

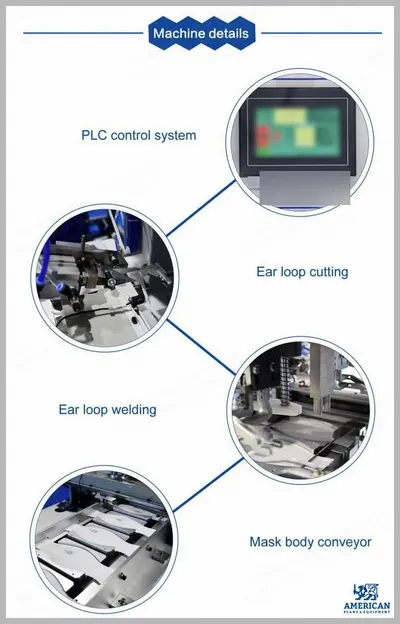

Description Overview Capacity: 45 to 50 pieces per minute Includes printing on masks Includes nose foam insertion (closed cell foam) Requires 1 to 2 operators With PLC controls Process Flow Raw material feeding Nose wire feeding Mask body forming Headband welding Final product output Specifications Weight: 1600 kgs Voltage: 220 volts Power: 6 kW Ultrasonic frequency: 20 kHz Gas pressure: 6 kg per cm2 Machine Composition Main control panel, 1 set Headband machine control panel, 2 sets PLC, 3 sets (one for each control panel), Delta brand Servo motor, 3 kW, 1 set, Huada brand, mask machine main motor Stepping motor, 2 sets, Leadshine brand, distributor 2 sets, earloop main motor 1 set Standard motor, 2 sets, Jingyan (Sino-German brand), earloop feeding Speed motor, 1 set, Jingyan brand, discharging Speed motor, 1 set, Jingyan brand, distributor feeding Speed motor, 2 sets, Jingyan brand, conveyor belt Standard motor, 4 sets, Kejing Hongrong brand, tension control for material frame Speed motor, 1 set, Jingyan, feeding Reduction motor, 1 set, feeding Frequency converter, 5 sets, Jingyan, distributor 1 set, tension control material frame 4 sets Touch screen, 3 sets, Taiwan Weiview or Delta brand, for each controller box Switching power supply, 3 sets, Japanese Omran brand, each controller box Switch relay, Omron or Idec Japanese brand Ultrasonic system, 6 sets, mask body 2 sets, earloop 4 sets Ultrasonic transducer, 6 pieces, mask body 2 sets, earloop 4 sets Ultrasonic horn, 6 pieces, mask body 2 sets, earloop 4 sets Cylinder, 1 set, Airtac brand Shape welding roller, 1 set Shape cutting roller, 1 set Final welding roller, 1 set Final cutting roller, 1 set Raw Material Specifications 1st layer (outer), polypropylene spunbond, 40 gsm, 250 mm width, 670+ masks per kg, <700 mm raw material roll diameter 2nd layer (middle), melt blown, 30 gsm, 250 mm width, 754+ masks per kg, <700 mm raw material roll diameter 3rd layer (middle), melt blown, 45 gsm, 250 mm width, 670+ masks per kg, <700 mm raw material roll diameter 4th layer (inner), polypropylene spunbond, 30 gsm, 250 mm width, 1005+ masks per kg, <700 mm raw material roll diameter Nose wire: double wire, 5 mm width, 2100+ masks per kg Ear band: flat type, 5 mm width, 1270+ masks per kg Dimensions, Packed for Freight 5 wooden cases Case 1: 1190 x 1190 x 1710 mm Case 2: 1190 x 1190 x 1710 mm Case 3: 1690 x 1190 x 1460 mm Case 4: 2240 x 1540 x 1610 mm Case 5: 1840 x 1690 x 2140 mm
