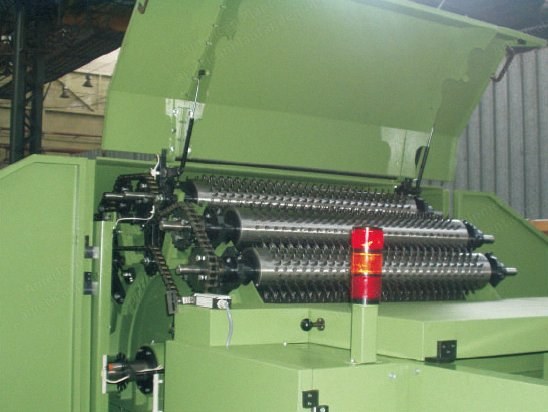

NovaStar, AB6N/1500, Working Width 1500mm, Capacity 1500-2000 kg/h (New)

NovaStar, AB6N/1500, Working Width 1500mm, Capacity 1500-2000 kg/h

Description

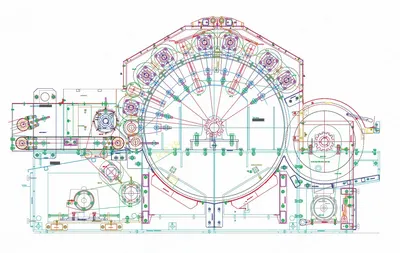

  1. Overview
    1. Carding willow
    2. Working width: 1500 mm
    3. Capacity: up to 1500 kg per hour
  2. Specifications
    1. Main cylinder diameter: 1160 mm, with 3 pairs of working/stripping rollers
    2. Doffer cylinder diameter: 560 mm

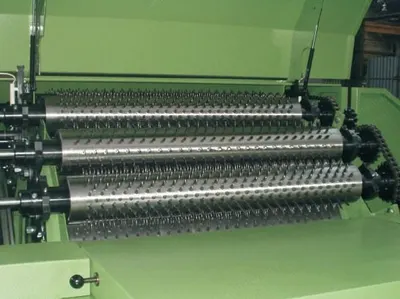

    3. Feed rollers equipped with toothed rings
    4. Feeding conveyor will be shortened to 600 mm and adapted for connection with the inclined conveyor
    5. Speed: 0 to 15 meters per minute
    6. Voltage: USA to be agreed
    7. Capacity: Up to 2000 kg/h
  3. Drives
    1. Main cylinder driven by 22 kW, Siemens Eff3 type motor
    2. Conveyor and feeding rollers driven by Lenze servomotor, 3 kW with frequency inverter type G500 vollservomotor type MCS
    3. Doffer driven by 4 kW Siemens Eff3 motor
  4. Controls and Safety
    1. Control panel built in on feed section (on the right side into production direction)
    2. All electrical connections will be marked
    3. Control type: Siemens ET200 with Profinet to connection with main control system
    4. Machine is equipped with top covers and side guards with electric blockades, Schmersal brand
    5. Not-Aus switch 2x type, Siemens brand
  5. Included Equipment
    1. Set of standard spare parts with:
    2. 2 pieces gearwheels for feeding rollers
    3. 100 pieces pins for main cylinder and workers
    4. 50 pieces pins for doffing roller
    5. 1 piece chainwheel for workers
    6. 1 set drive belts for main cylinder
    7. 1 set drive belts for doffing roller
