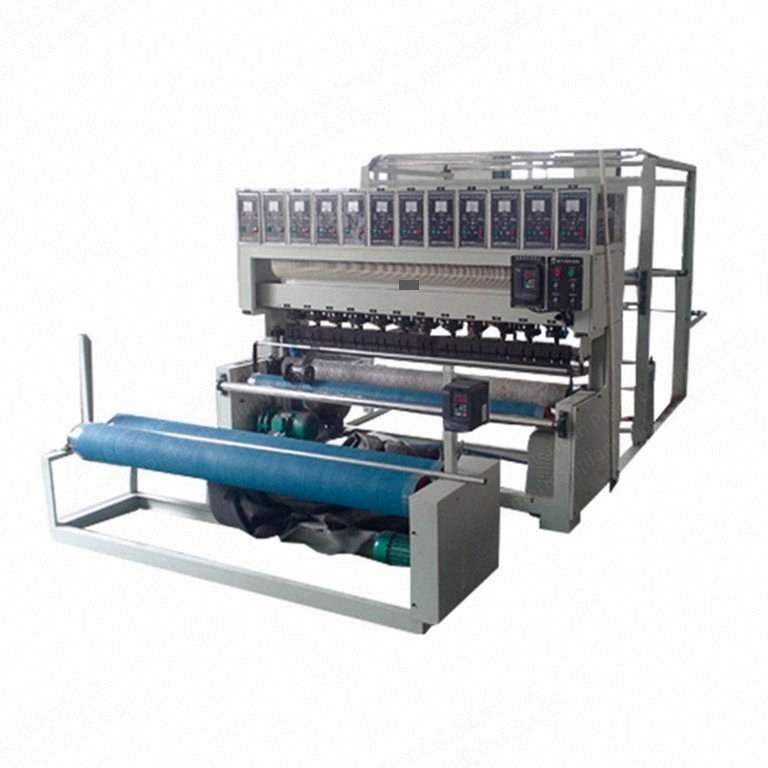

NovaStar, NN289, Ultrasonic Embossing Machine, Working Width 2400mm, 18 kW
Scroll to zoom
100%
Description
Overview
For all types of chemical fiber fabric, artificial leather, nonwoven fabric, sprayed cotton, thermoplastic film, chemical plastic sheet and other flat flexible materials for high-frequency ultrasonic embossing and laminating
Machine roller width: 2500 mm
Material width: 2400 mm
Production speed: 500 to 1500 meters per hour
Maximum unwinding diameter: 1000 mm
Maximum rewinding diameter: 1000 mm
Requires 5 operators
Composition
3 sets of unwinding devices for fabric
Embossing device
Rewinding device
Main Configuration
Frame: 12# channel steel and steel plate
Fabric unwinding device: 3 sets
Fabric guiding roller: 5 pieces
Tension device: 2 sets
Fixed roller: 2 pieces
Rolling unwinding device for loading fabric: 1 set
Hook device and roller: 1 set
Laminating and embossing device: 1 set

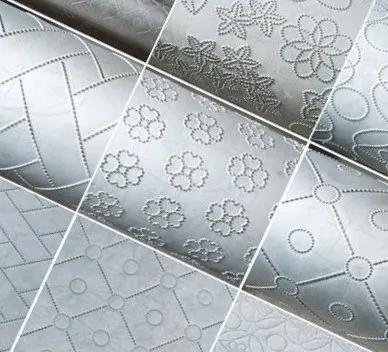

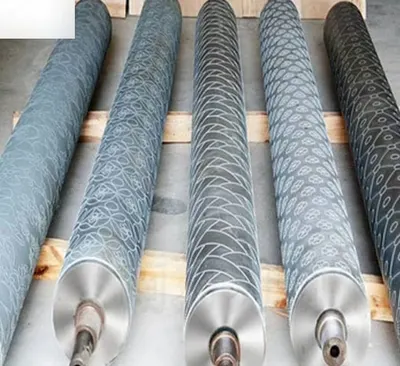

Design of roller: 1 piece + 4 pieces extra
Open roller: 2 pieces

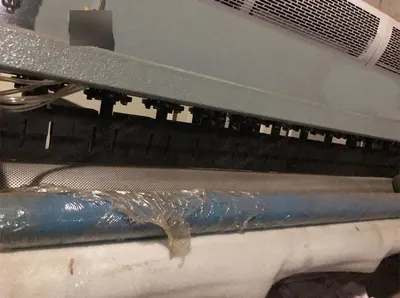

153 mm ultrasonic head: 16 sets + 1 free set
Control panel with ultrasonic generator: 1 set
Fabric guiding roller: 4 pieces
Pressing roller: 2 pieces
Footboard: 1 set
Motor: 1 set
Ultrasonic generator box: 16 sets + 1 free set
Transmission parts and electrical components: 1 set
Rewinding device: 1 set
Winding roller: 2 pieces
Counter: 1 set
Motor: 1 set
Transmission parts and electrical components: 1 set
Specifications
Air pressure: 0.8 Mpa, 0.3 cubic meters per minute
Dimensions: 5800 x 3050 x 2000 mm L x W x H
Voltage: 480 volts, 3-phase, 60 Hz
Total power: 18 kW
Weight: about 3500 kg
