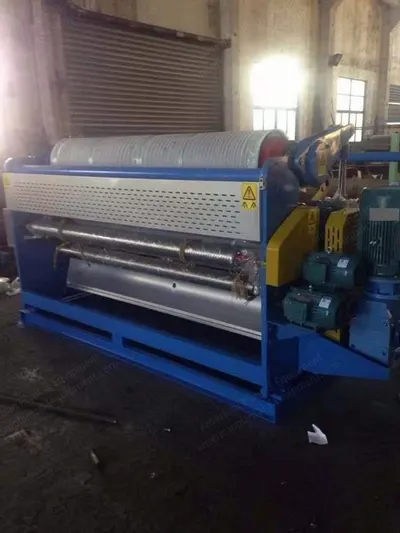

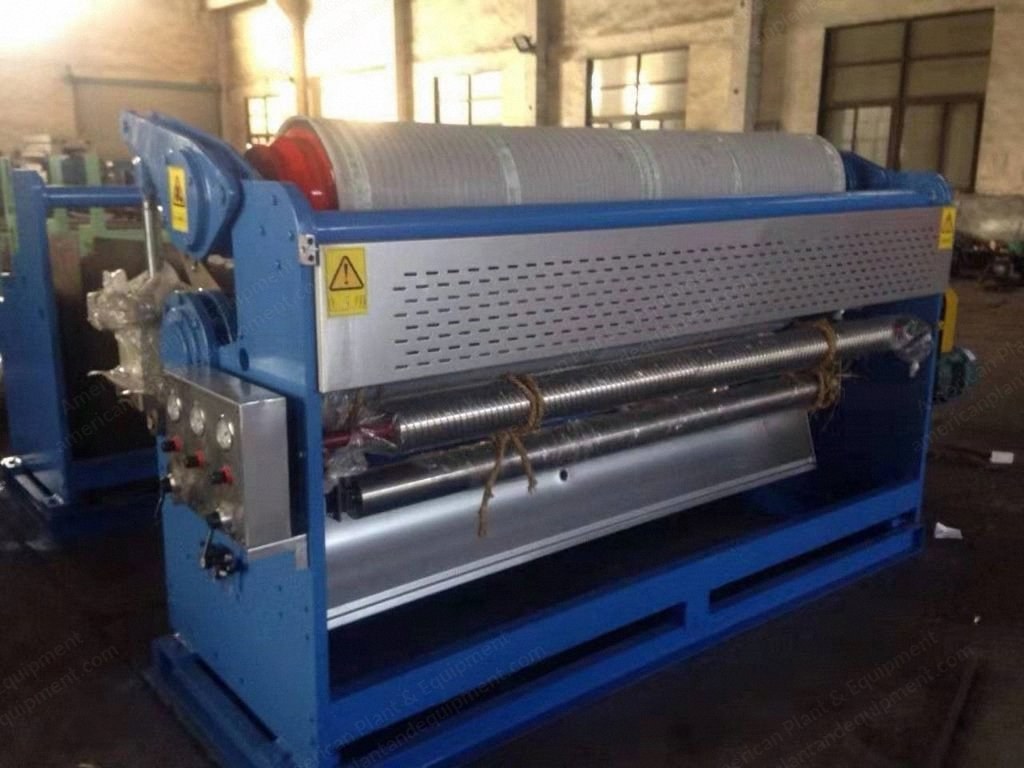

NovaStar, DG331, Two-Roller Heavy Padder, 4200mm Working Width, 12 Tons Pressure (New)

NovaStar, DG331, Two-Roller Heavy Padder, 4200mm Working Width, 12 Tons Pressure

Description

  1. Overview
    1. Two rollers covered with nitrile rubber
    2. Composed of roll, pressure device, expanding device, transmission system, stand, etc.
    3. Wall panels on both sides are Q235A 35mm steel plate
    4. Ground is made of 12 channel welded steel

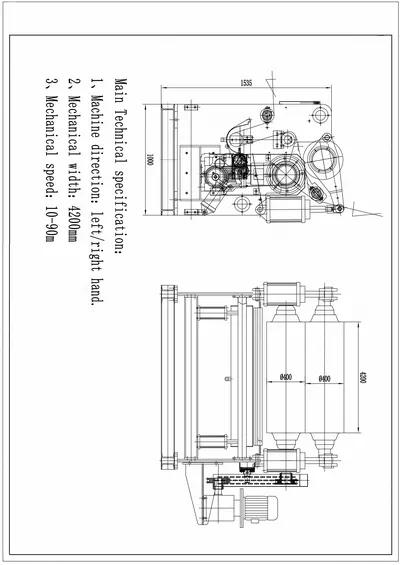

  2. Specifications
    1. Working width: 4200mm
    2. Machine direction: face feeding direction, drive on the left or right side
    3. Mechanical speed: 10 to 90 meters per minute
    4. Drive mode: AC motor, frequency control
    5. Reducer: Omet gear reducer
    6. Pressure: approximately 12 tons
    7. 200 x 130 self locking cylinders
    8. Side lever cylinder pressurization
    9. High pressure
    10. Small rolling surplus
  3. Roller Details
    1. Lower roller is 400mm circumference active rubber roller and rubber hardness is A95°
    2. Upper roller is 400mm circumference passive rubber roll, covered with NBR and hardness of rubber roller is A82°
    3. Lower part of padder is equipped with steam driven turnover rolling trough, which is convenient for cleaning and maintenance and can be used for fabric dipping before squeezing
    4. The fabric is expanded by rubber bending roller before squeezing point of the feeding padder to ensure smooth fabric

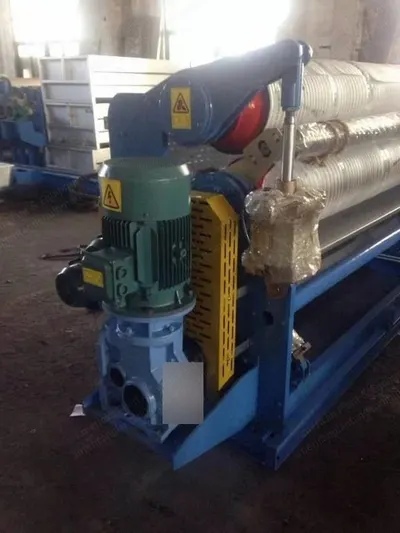

  4. Transmission
    1. Transmission of padder is driven by double row chain and equipped with Omet gear reducer
