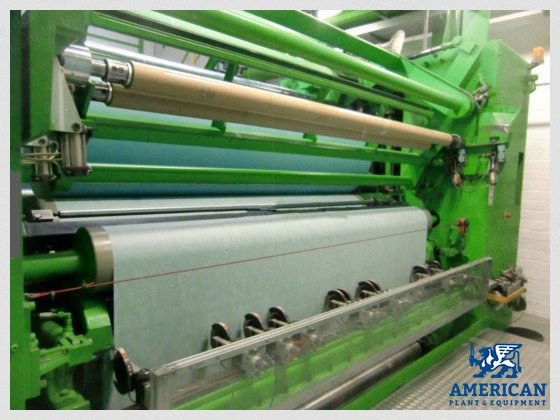

Edelmann, 640.05 Series, 1994, 2500mm Working Width, 14 Knives, 300 m/min

Edelmann, 640.05 Series, 1994, 2500mm Working Width, 14 Knives, 300 m/min

Description

  1. Overview
    1. Working width: 2500 mm
    2. Year: 1994
    3. Voltage: 380 V, 3-phase, 50 Hz
    4. Maximum fabric width: 2500 mm
    5. Cylinder width: 2600 mm
    6. Core size: 76 mm
    7. Winding diameter: 400 to 1250 mm
    8. Minimum slitting width: 50 mm, including movable take-up table
  2. Slitting System

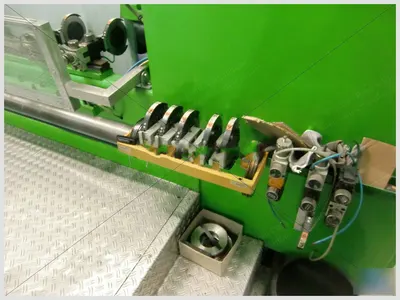

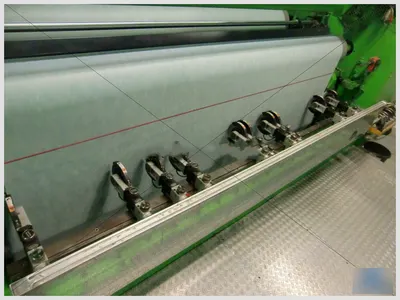

    1. 14 knives (shear cut principle) for longitudinal slitting with pneumatically expanding undercut shaft
    2. Speed: 20 to 300 meters per minute
  3. Inlet and Web Handling
    1. Inlet frame with deflection rollers
    2. Operating platform
    3. Automatic web tension control with measuring roller
    4. Automatic roll changing system with application and removal unit
  4. Winding System
    1. Support roller winding with 2 support rollers
    2. Designed for maximum winding diameters of 1250 mm
    3. Drive of each roller through 1 independent DC motor
    4. Winding shaft holding device with special magnet
    5. Outlet support roller and separate drive
  5. Measurement and Control
    1. Length measuring device with digital meter counter and electronic pre-selection
  6. Included Accessories
    1. Complete with winding shaft pulling device and transport trolley
