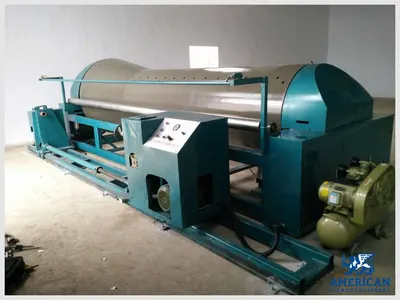

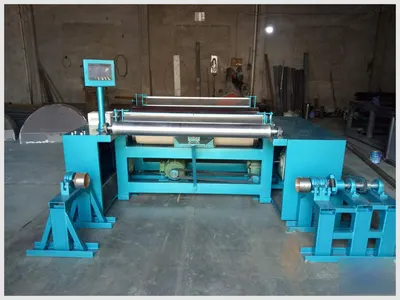

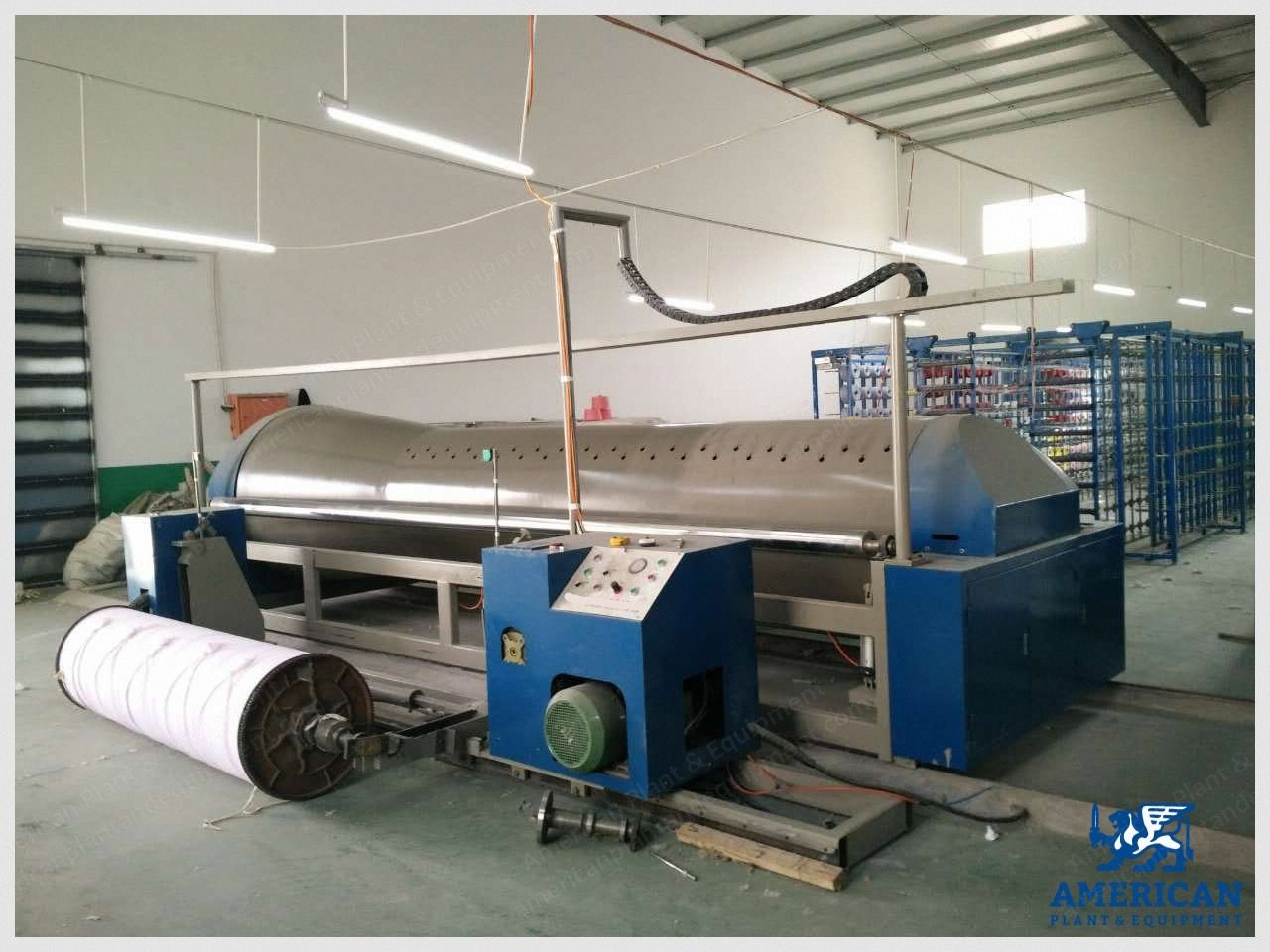

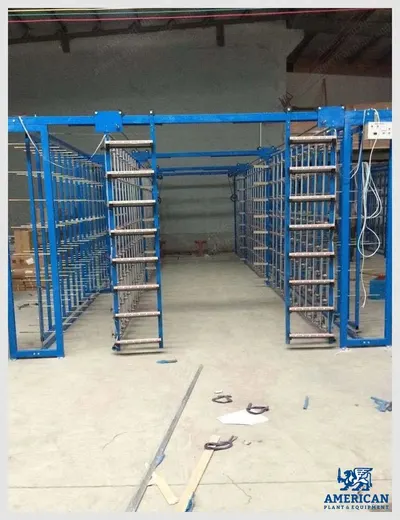

Description Overview High precision mechanical guiding bar speed regulation (maximum 45 grades of speed) Compressed air and steel belt brake Steel fixed cone angle drum (6.5” to 9”) Electric upper and lower shafts Bidirectional bobbin rack and electrically controlled lease box can be equipped Specifications Drum rotating speed: 0 to 600 meters per minute Back shaft rotating speed: stepless speed regulation Automatic length record (according to drum running number) and the length can be preset Automatic stop and brake Width: 2300 mm Applicable beam diameter: outside diameter 600 to 1000 mm Machine can take 600 to 1000 mm flange Cone angle drum: 6.5 to 9 inches Features Automatic stop sensor for yarn breakage Electronic loop counting system Auto beaming: life up/down system Included With 600 pieces creel
