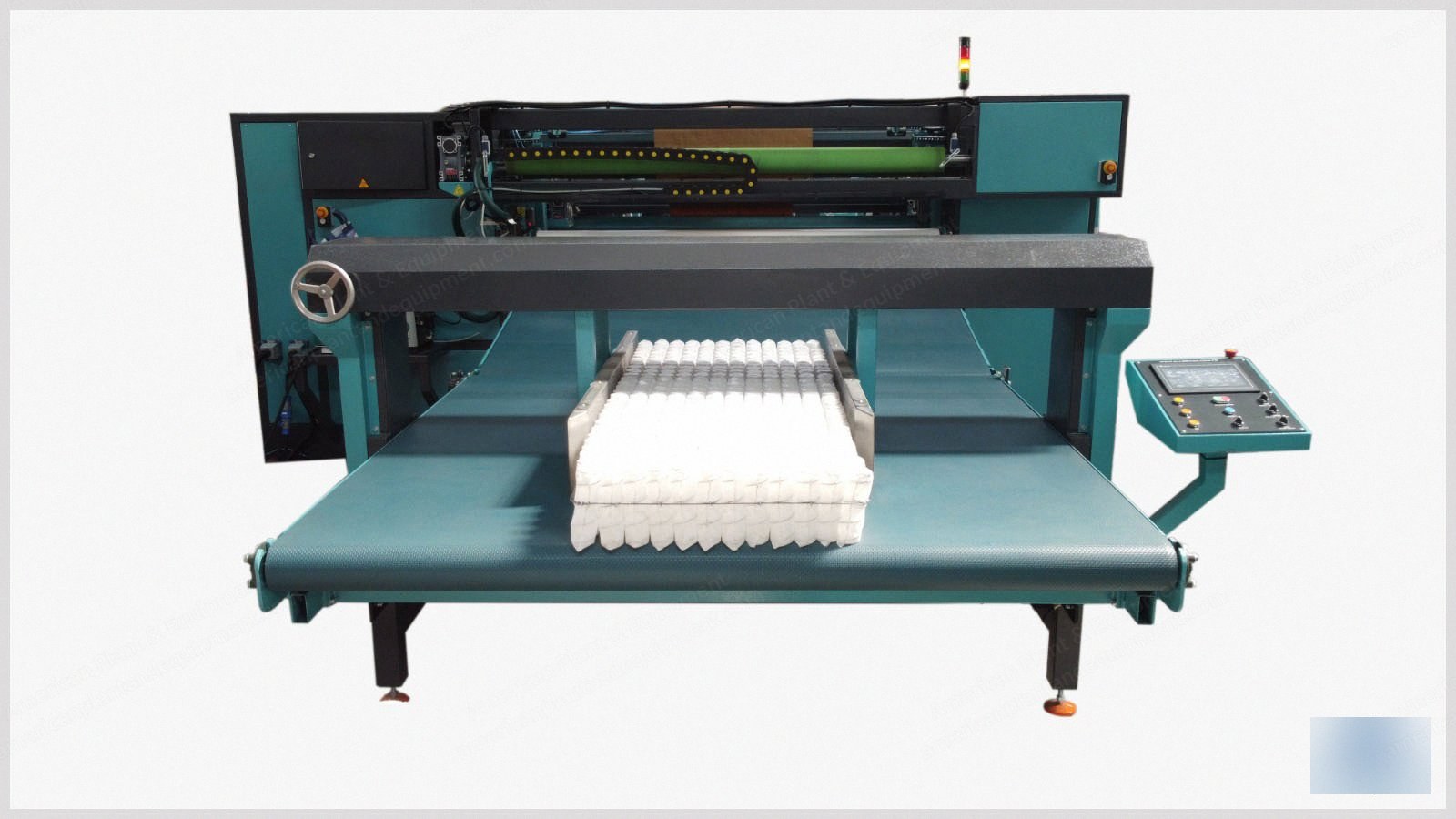

NovaStar, Pocket & Bonnel Spring Rollpack Machine, 2050mm Max Width, 14 Rolls/Hour (New)

NovaStar, Pocket & Bonnel Spring Rollpack Machine, 2050mm Max Width, 14 Rolls/Hour

Description

  1. Overview
    1. Plc control panel for fully automatic operation
    2. Spring winding speed control (speed adjustment)
    3. Automatic attaching, cutting and bonding the packaging of the product
    4. Adjustment of compression according to spring to be roll packed
    5. Spring types: bonnel-packaged springs and similar products suitable for wrapping
    6. Warning alert when product is finished (audio and light alerts)
  2. Specifications
    1. Maximum input width: 2050 mm
    2. Packs pocket springs between 50 mm and 220 mm tall
    3. Recommended packaging diameter: 500 to 650 mm
    4. Capacity: 14 rolls per hour
    5. Maximum roll diameter: 800 mm
    6. Control system: PLC with Touch Screen
  3. Features
    1. Automatic feeding system
    2. Centering unit on automatic feeding system
    3. Counter for number of products to be wrapped
