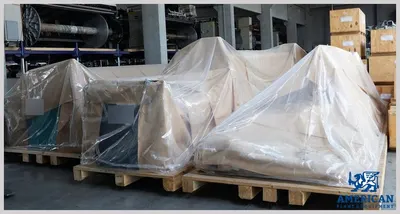

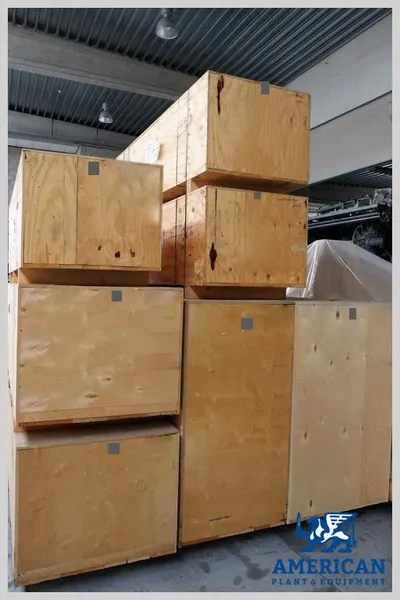

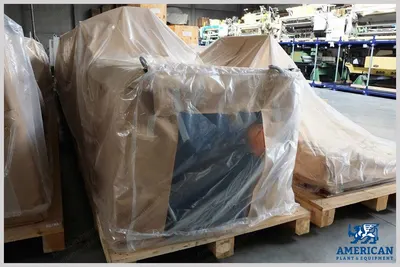

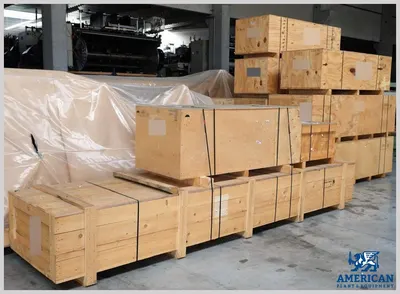

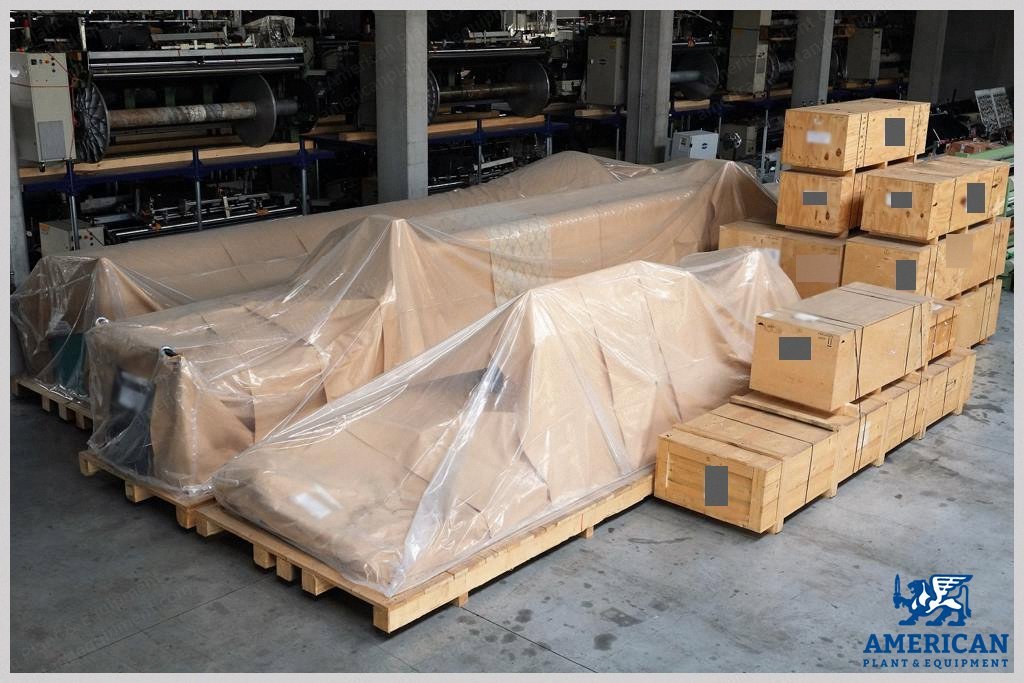

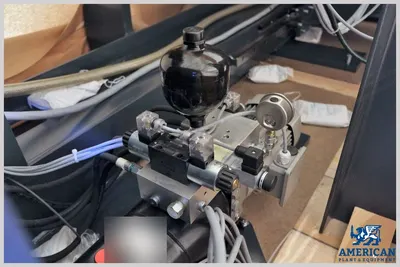

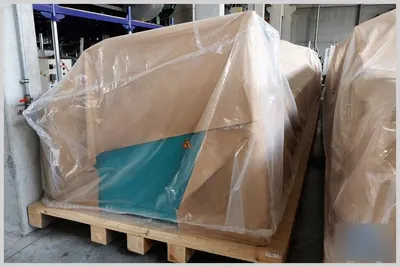

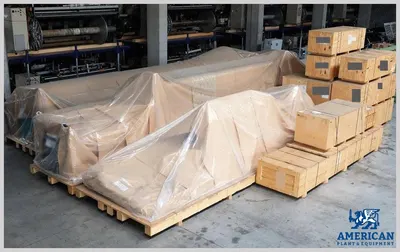

Description Overview Brand new machine still in original packaging Working width: 5400 mm Warping drum suitable for all types of yarns Drum size: 3000 mm x application height 350 mm Cone angle: 9° Maximum warp tension: 2000 N Maximum warping speed: 800 meters per minute Forward/backward motion speed variable from 5 to 20 meters per minute Drive and Braking Drive warping AC motor: 37 kW Hydraulic brake disks with ventilation on the warp drum Drive-beaming system with safety device Warping Section Details Maximum section width: 500 mm Coated compression roller 500 mm to produce constant winding density in all the warp sections SPS control computer with Windows application (touch screen) Beaming Specifications Separate beaming device Maximum beam tube length: 6100 mm Maximum beam diameter: 1250 mm Yarn tension force beaming 20,000 N at maximum beaming speed: 100 meters per minute Yarn tension force beaming 10,000 N at maximum beaming speed: 200 meters per minute Starting from warp beam Ø 440 mm Waxing and Accessories Coated roller waxing device for liquid wax Creel Specifications Horizontal high performance warp creel model GP-D (2 x 396 = 792 positions) having maximum 396 spindles in working position 6 levels Gauge horizontal 400 mm x vertical 360 mm Electronic creel stop motion type: Filgard Double disc tensioners type: Megatens (7 mm eyelet) with motorized self-cleaning system Data input station with touch screen Total length of creel: 14 m 85 Electrical Specifications 400 volts 3-phase 60 or 50 Hz SpecificationsCone angle: 9 degrees
