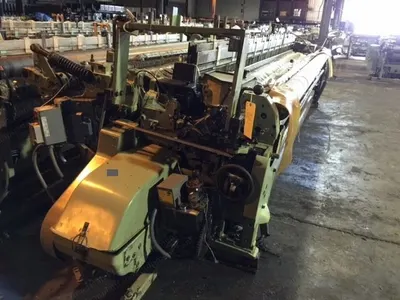

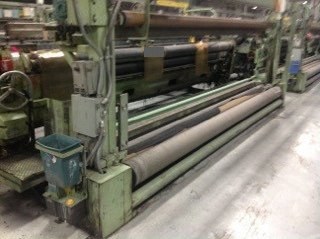

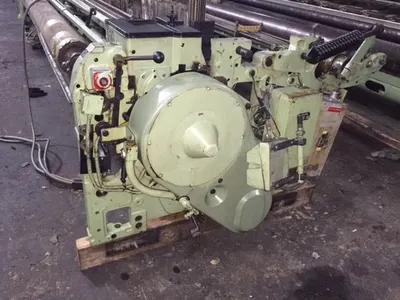

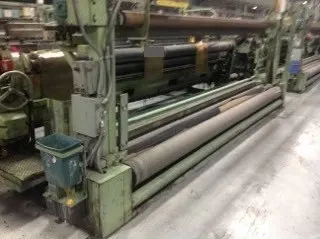

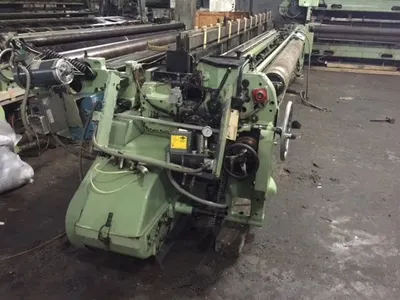

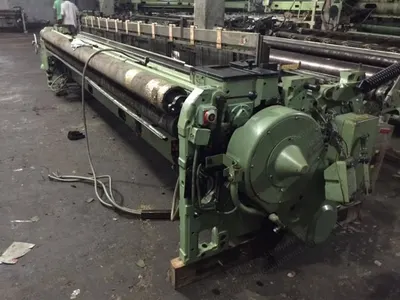

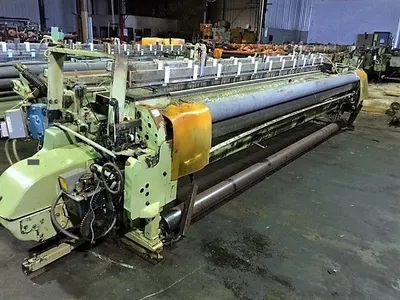

Sulzer, TW11, 1972, 4400mm Working Width, Single Color, Cam Motion, Upgraded to P7100

Sulzer, TW11, 1972, 4400mm Working Width, Single Color, Cam Motion, Upgraded to P7100 Sold

Description

  1. Overview
    1. Working width: 4400 mm (173 inches)
    2. Mechanically upgraded to P7100 for higher speed
    3. Year: 1972/1976
    4. Single color cam motion
    5. For polypropylene tape
    6. Especially suited for jumbo bags, geotextiles, agricultural textiles, sun-shading and suitable monofilament fabrics
  2. Specifications
    1. Each set with: 04/06 harness shafts as fitted on looms
    2. 04/06 cams, 04 harness frames
    3. Heddles and drop wires as on looms
    4. Both side tucking units

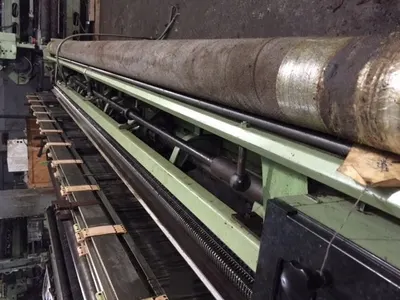

    5. Electronic let off with one single beam, diameter 940 mm
    6. 4 contact bars, electronic let-off
    7. Electronic weft loefe, single whip roll
    8. D1 projectile, 01 accumulator
    9. Bijour/mylube lubrication
    10. Off-loom take-up system (heavy duty specially built for PP)
  3. Conversion To P7100 From Tw11
    1. 19 mm torsion rod, torsion tube
    2. Picking shaft (hollow shaft)
    3. Back plate for picking unit (not needed for PU loom)
    4. 37 mm picking lever, barrel cam modified to accept larger rollers
    5. Firing cam, firing cam rollers (020, roller holder)
    6. Hollow shaft bushing (brass)
    7. Hollow shaft shims and seal, P7100 oil brake
    8. Shuttle brakes, bottom plate also modified to the thicker P7100 brake
  4. Condition
    1. Status: stopped, in warehouse, immediate delivery
  5. Quantity
    1. 12 sets
