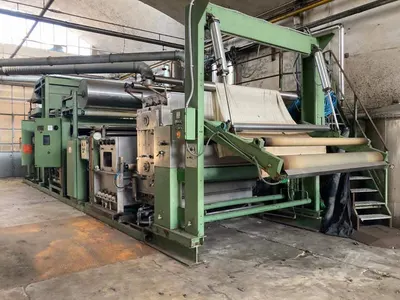

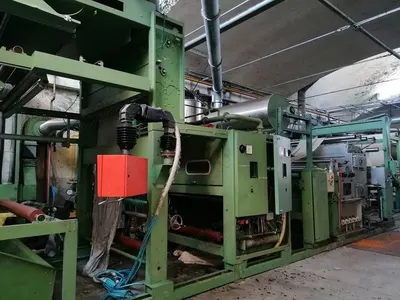

Osthoff, U 80 - Universal, 1986, 2000mm Working Width, Double Desizing Tank

Osthoff, U 80 - Universal, 1986, 2000mm Working Width, Double Desizing Tank

Description

  1. Overview
    1. Roller width: 2200 mm
    2. Working width: 2000 mm

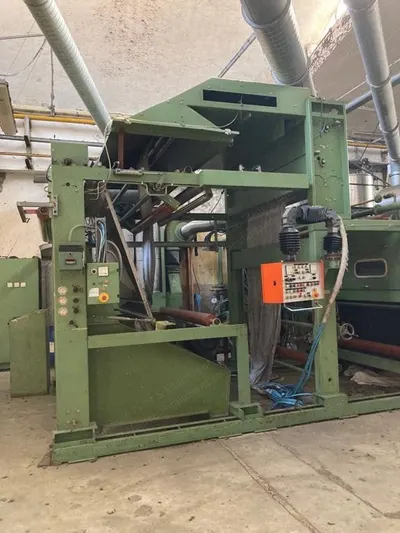

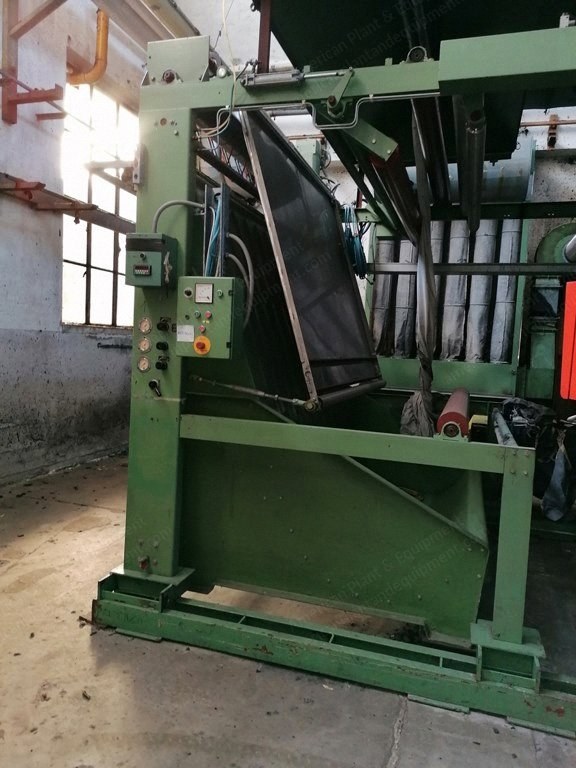

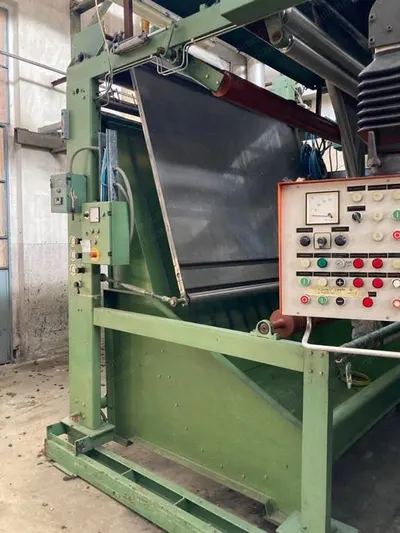

    3. Entry fabric frame with brake
    4. E+L fabric guide

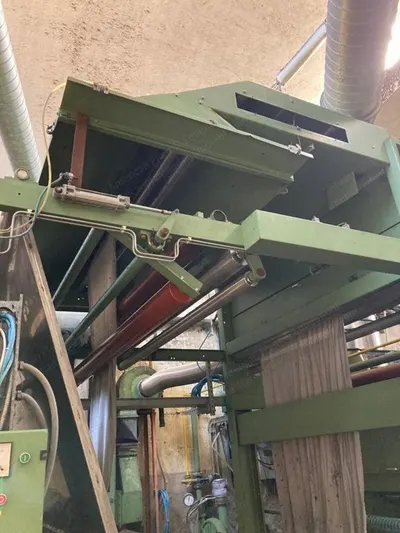

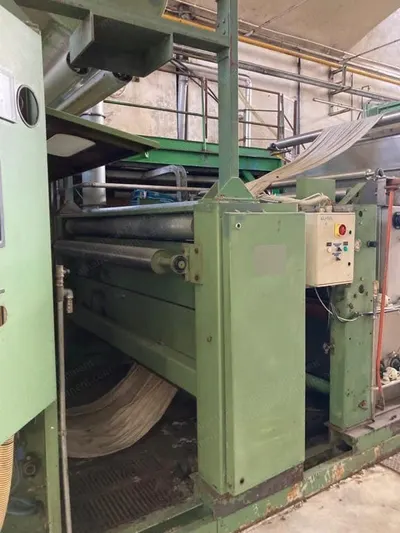

    5. J-box fabrics accumulator
    6. Machine is suitable for desizing and bleaching in semi-continuous mode
  2. Brushing And Singeing Unit

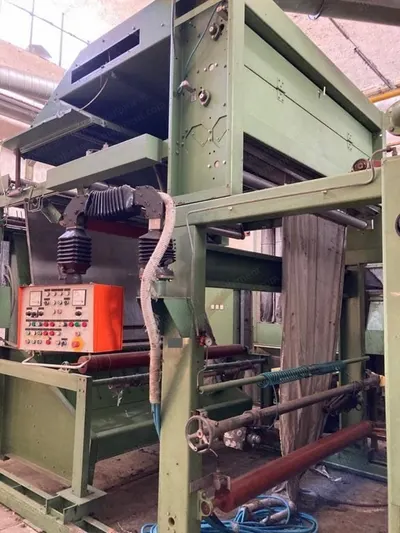

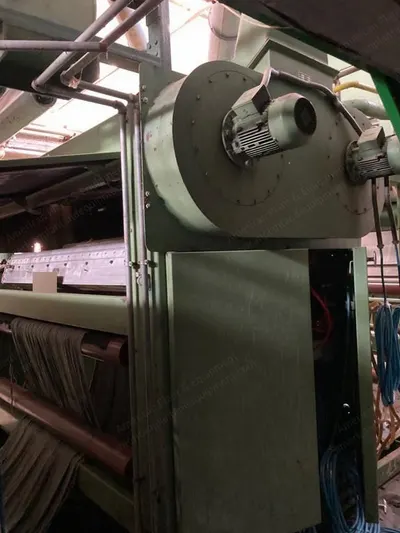

    1. Brushing/beating unit with 2 brush cylinders and suction device

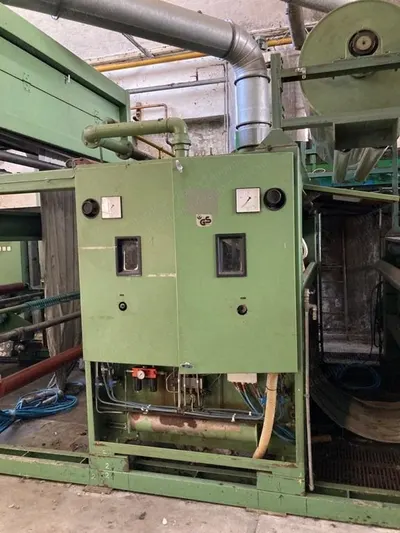

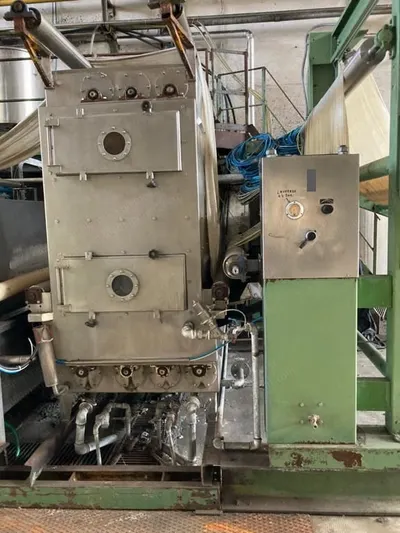

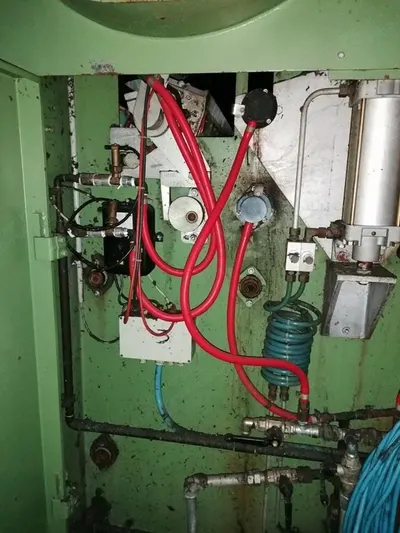

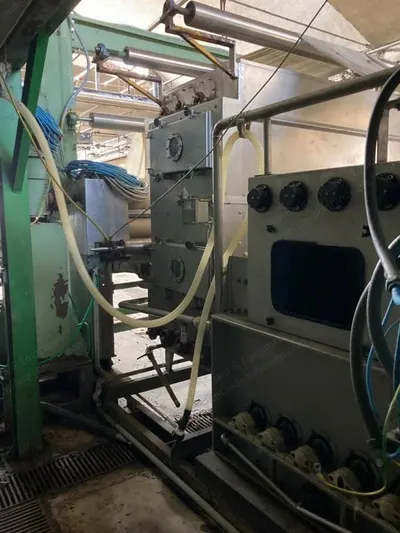

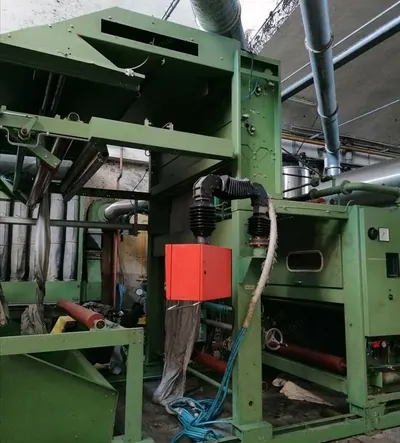

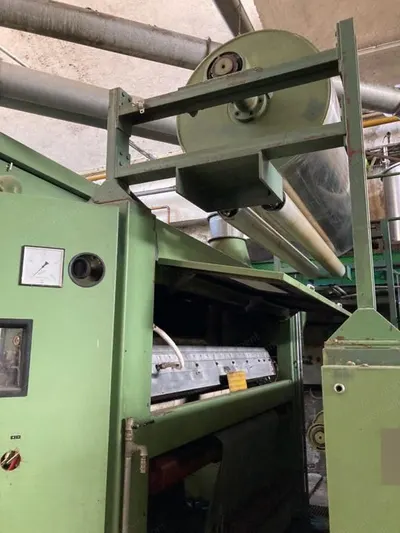

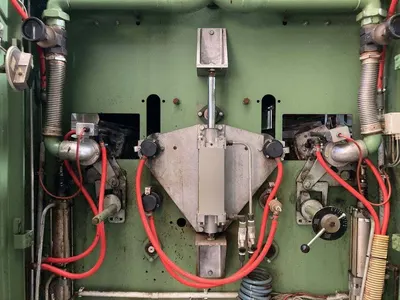

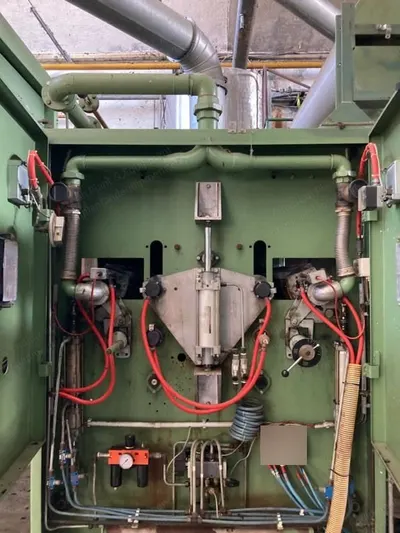

    2. Osthoff singeing unit
    3. 2 burners, type double-jet with automatic self-turning device at the stop of machine

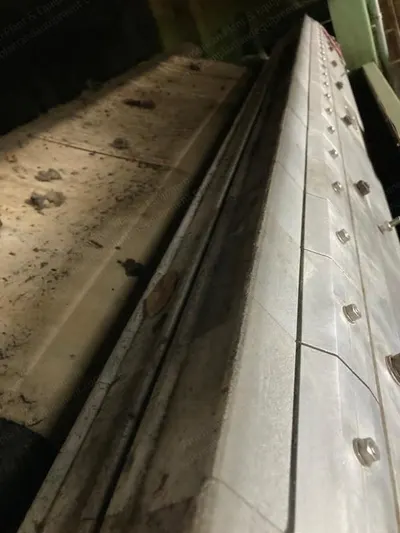

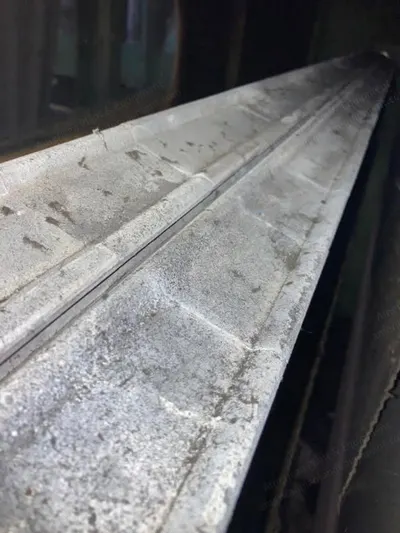

    4. The burner bricks were changed recently and are in perfect condition
    5. 3 burning positions: tangential, direct on to the fabric, direct on to the cylinders
    6. Adjustable parameters: flame-fabric distance, flame intensity
  3. Cooling Section

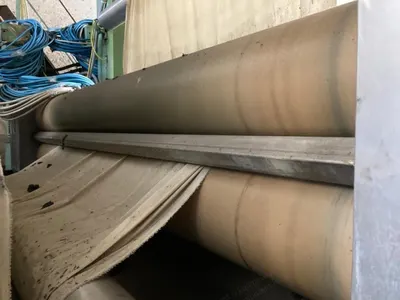

    1. 8 water-cooling cylinders

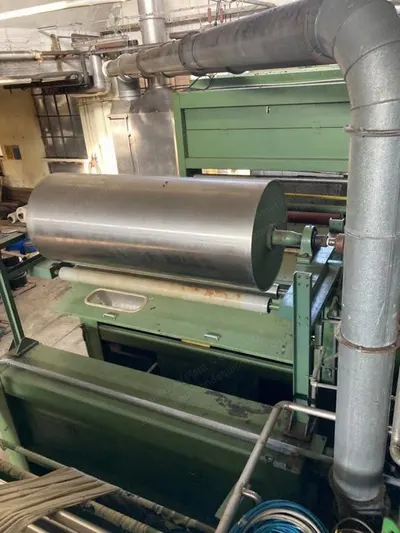

    2. 1 big cooling cylinder for cooling the fabric at the exit from singeing machine
  4. Waste Removal

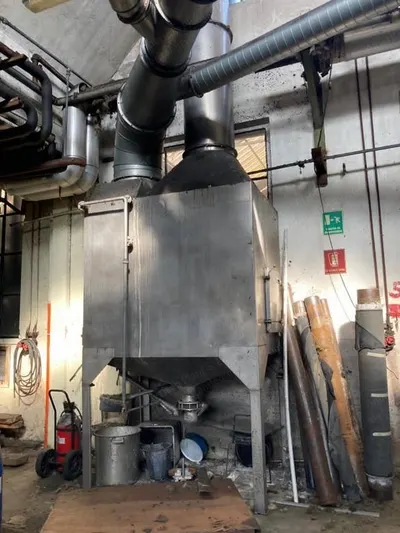

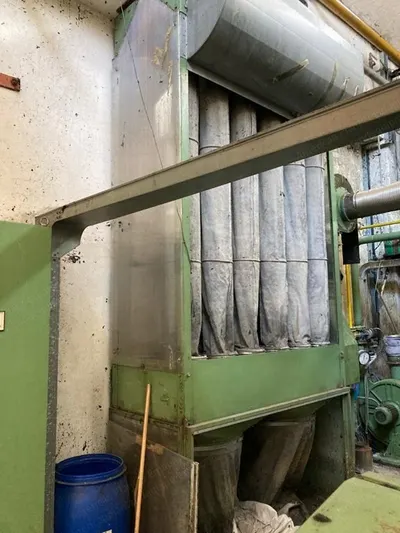

    1. Brushing/beating unit for burned waste, with 2 brush cylinders, suction device and stainless steel wet recovery tank for burned waste
  5. Desizing And Bleaching Section

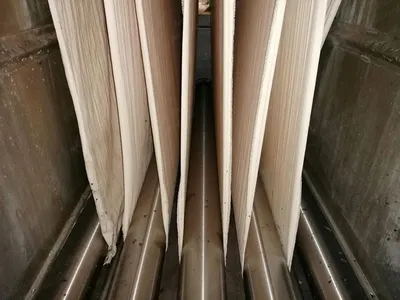

    1. Desizing tank, totally made of stainless steel, fabric contents 16 meters
    2. Desizing tank, totally made of stainless steel, fabric contents 12 meters
    3. Squeezing mangle with 2 bowls, diameter 250 mm, maximum squeezing pressure 10,000 kg

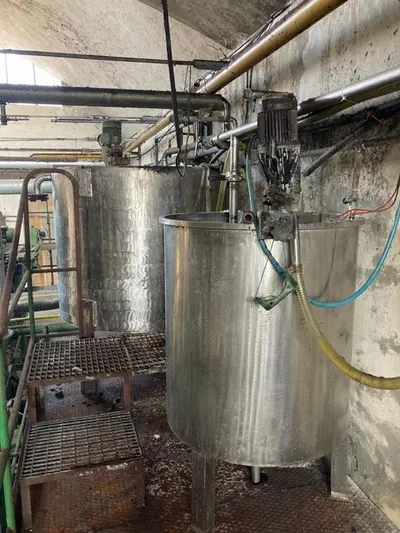

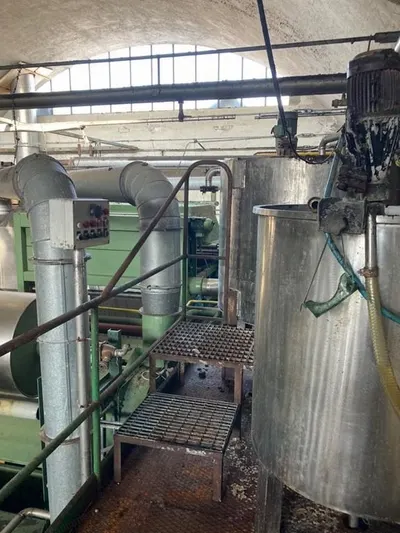

    4. 2 tanks, positioned on a mezzanine floor, complete with electro mixer
  6. Specifications
    1. Delivery: Tangential winding device for big rolls up to 1800mm diameter
