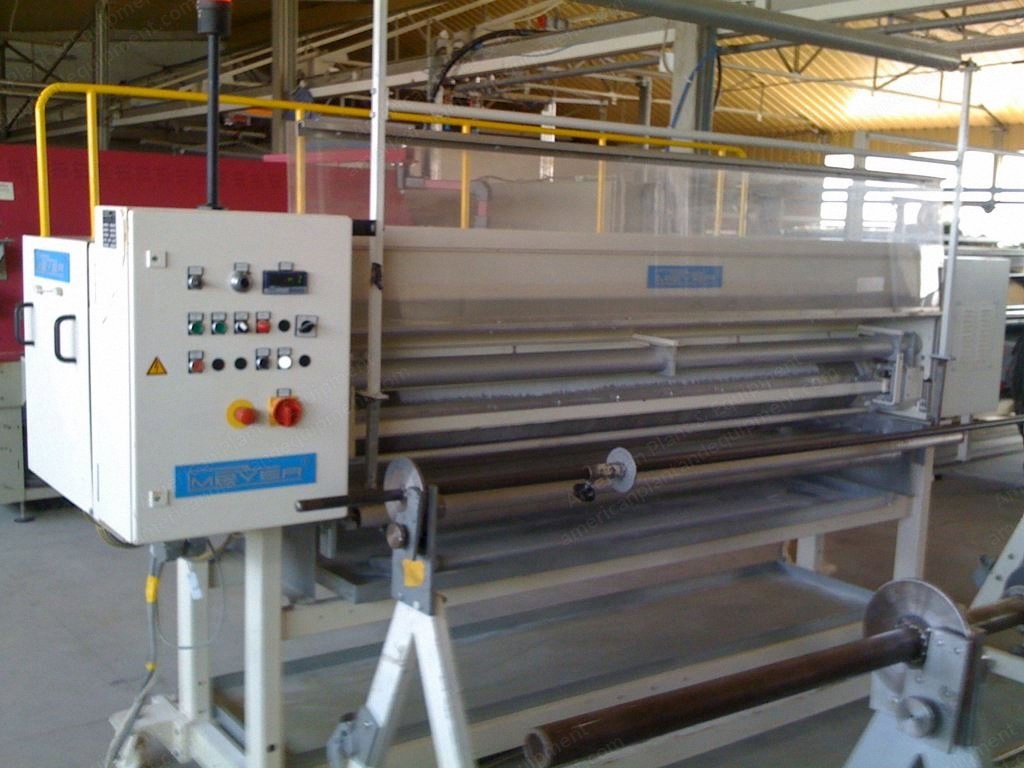

Schaetti Kannegiesser, TLM-V, 2003, Lamination Line, Working Width 2200mm

Schaetti Kannegiesser, TLM-V, 2003, Lamination Line, Working Width 2200mm Sold

Description

  1. Overview
    1. Composed of a Meyer PST-2300 powder scattering unit, a Schaetti Kannegiesser TLM-V lamination machine, and a Rhoss model CWA/EX cooler.
    2. No split sale possible.

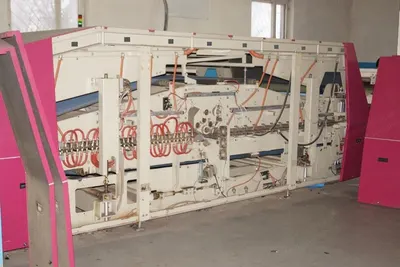

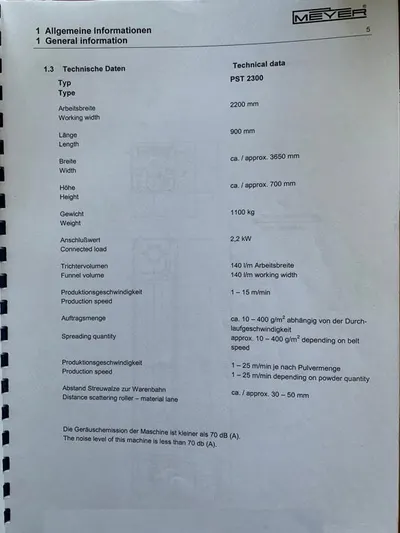

  2. Meyer PST-2300 Powder Scattering Unit
    1. Working width: 2200 mm.
    2. Year: 2005.
    3. Length: 900 mm.
    4. Width: approximately 3650 mm.
    5. Height: approximately 700 mm.
    6. Weight: 1100 kg.
    7. Connected load: 2.2 kW.
    8. Funnel volume: 140 l/m working width.
    9. Production speed: 1 to 15 meters per minute.
    10. Spreading capacity: approximately 10 to 400 gsm depending on belt speed.
    11. Production speed: 1 to 25 meters per minute depending on powder quantity.
    12. Distance scattering roller – material lane: 30 to 50 mm.
    13. Noise level: less than 70 db(A).

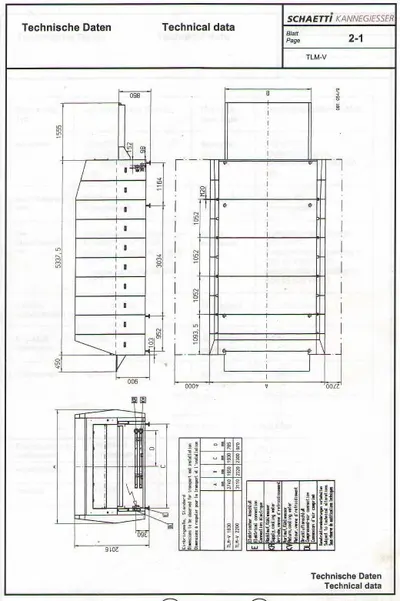

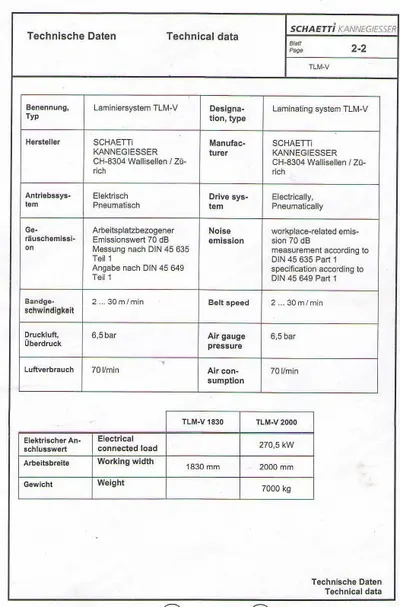

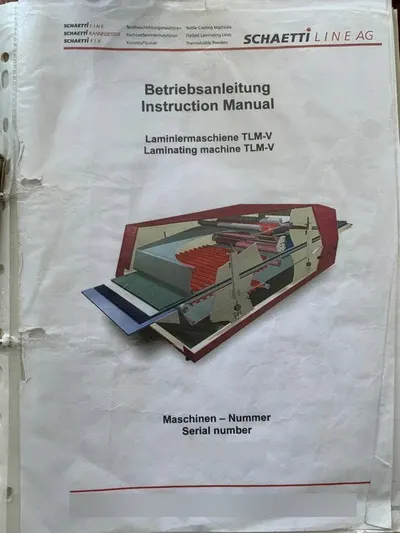

  3. Schaetti Kannegiesser TLM-V Lamination Machine
    1. Oven is electrically heated.
    2. Working width: 2000 mm.
    3. Flatbed design.
    4. Year: 2003.
    5. Drive system: electrical, pneumatic.
    6. Noise: 70 db(A).
    7. Belt speed: 2 to 30 meters per minute.
    8. Air gauge pressure: 6.5 bar.
    9. Air consumption: 70 liters per minute.
    10. Weight: 7000 kg.
    11. Connected load: 270.5 kW.

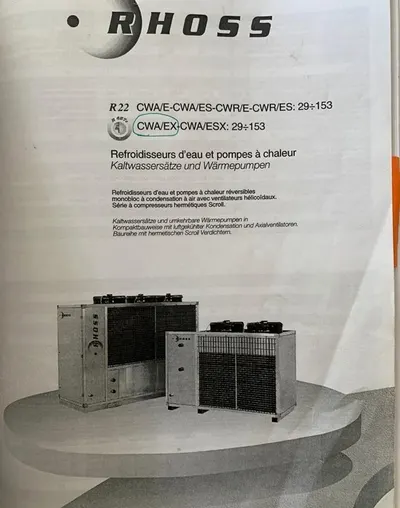

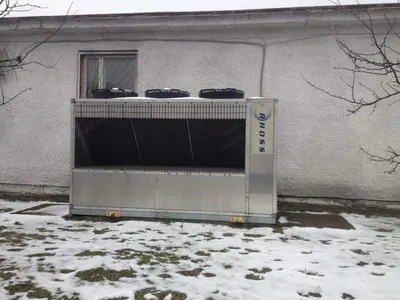

  4. Rhoss Model CWA/EX Cooler
    1. No additional specifications provided.
  5. Specifications
    1. Weight: 8100
    2. Connected load: 272.7 KW
