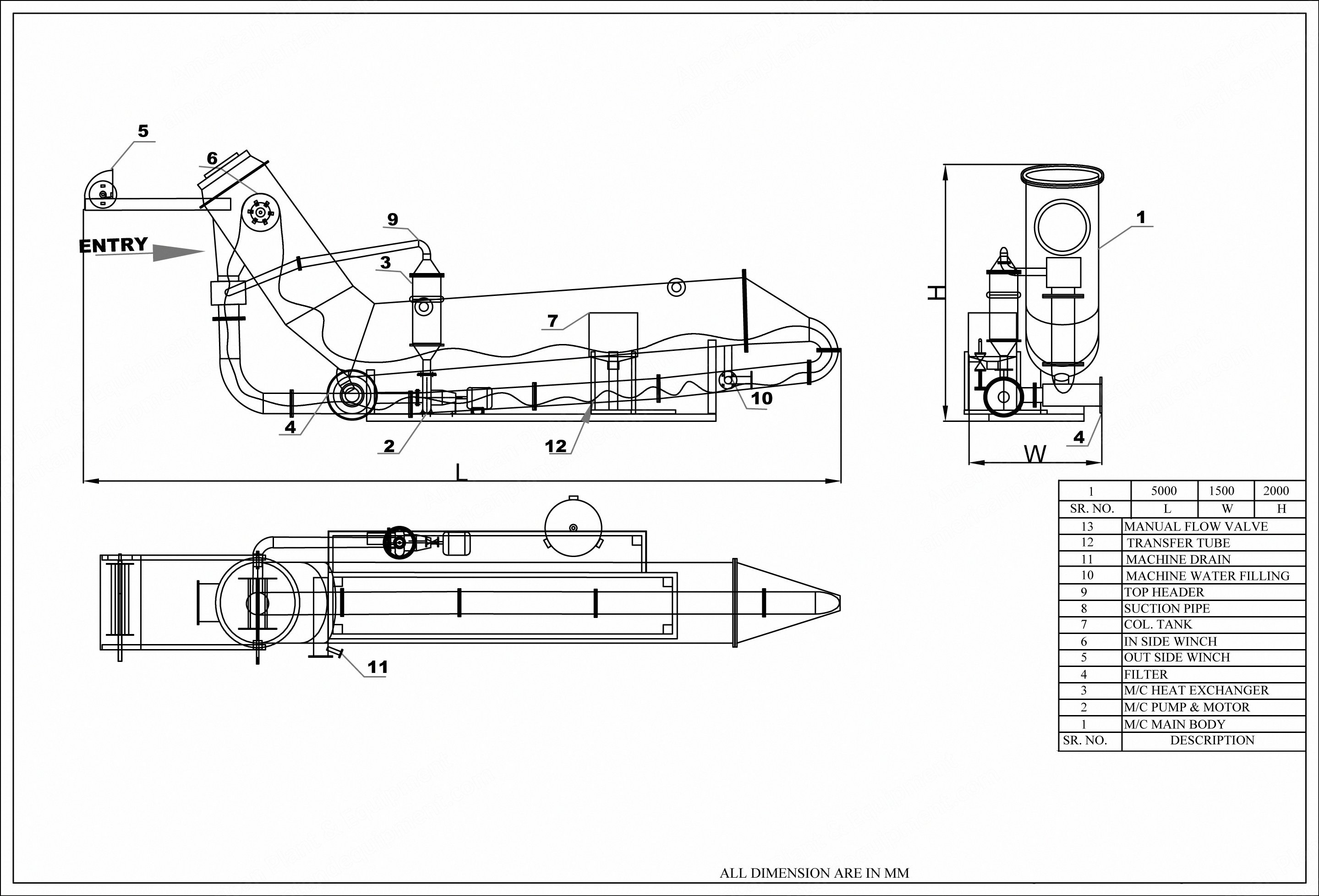

NovaStar, Sample Soft Flow Dyeing Machine, Capacity 5 kg, 135 deg C (New)

Overview

1. Fabric loading capacity: 50 kg

2. Liquor capacity: up to 1:9

3. Liquor ratio: 1:5 to 1:6 (depending on quality of fabric)

4. Vessel capacity: 5 kg

5. Vessel diameter: 1200 mm

6. Total length: 1700 mm

7. Total height: 2000 mm

8. Maximum working temperature: 135° C

9. Maximum working pressure: 3 kg per cm²

Specifications

1. Fabric mechanical speeds: 250 to 300 meters per minute

2. Fabric running speed: 150 to 250 meters per minute

3. Steam consumption: 4 to 5 kg per cm² for grey to dye cotton

4. Steam consumption: 1.5 to 3 kg per cm² for grey to dye poly

5. Steam pressure: 6 kg per cm²

6. Water pressure: 2 kg per cm²

7. Air pressure: 6 kg per cm²

8. Total connected power: 4 kW

Motor and Drive Details

1. Main pump motor: 3 hp / 5 hp / 7.5 hp / 10 hp with inverter drive

2. Inside reel motor: 1 hp and chamber

3. Outside reel motor: 0.5 hp, 200 rpm

4. Stirrer gear motor: 0.25 hp with every color tak

5. Inside winch: 1 hp

6. Tank injection pump: 0.5 hp, 3000 rpm

7. Unloading winch: 0.5 hp, 200 rpm gear

Pump and Piping

1. Pump: SS 316, 3 hp motor

2. Tube: 25 x 1

3. Tube diameter: 168 mm

4. Overflow nozzle size: diameter 190 mm x 168 mm

Tank and Valves

1. Tank capacity: 40 liters x 2

2. Auto fill: diameter 1” x 1

3. Auto drain: diameter 1” x 1

4. Automatic overflow: diameter 1” x 1

5. Heat (auto): diameter ¾”

6. Cool (auto): diameter ¾”
