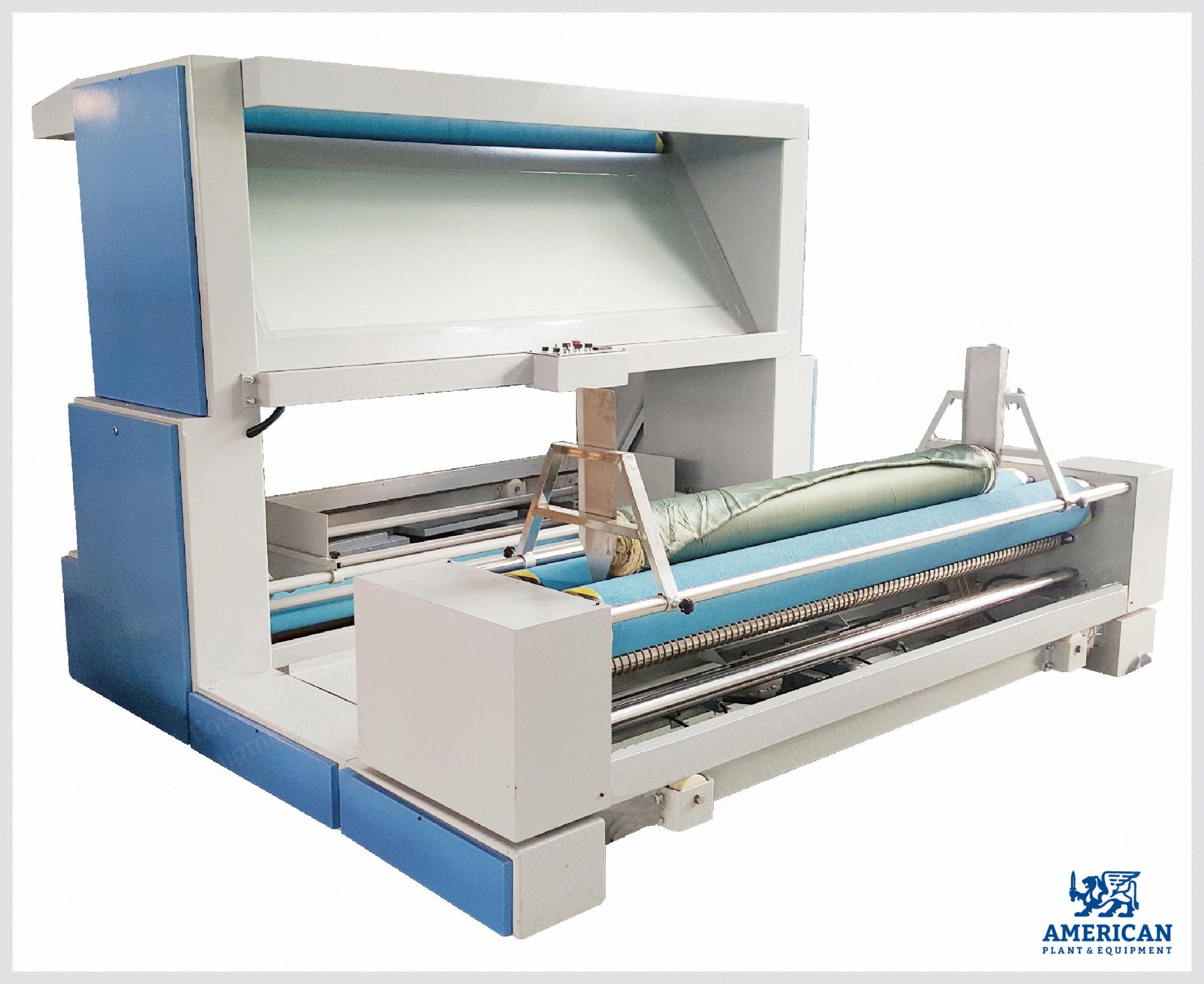

Description Overview Suitable for inspecting and rolling all kinds of woven cloths, finished and grey, roll into a round roll Infrared photoelectric screw rod automatically edge aligning, cylindrical rolled cloth is in good trim Rolling tension is adjustable according to different cloth categories Equipped with an electronic length counter, precisely counts cloth length Variable frequency speed control, positive and reverse revolve and infinitely variable speeds, suitable for reeling/unreeling cloth inspection The operator platform makes the inspecting table close to eyesight in order to facilitate the cloth amendment and the sorting of defective points Automatic stop device when without cloth Over and under light facility Optical bright light facility 45 degree angle for fabric inspection 1000 lux total tube light power Scroll roll for avoid crease Back side rolling unit automatic movement according to fabric Entry tension device Effective standing platform Reverse and forward fabric facility Extra optional sewing edge machine and heat sealing are provided for different technical requirements Technical Parameters Max. diameter: 900mm (customized) Working width: 2000mm Rolling speed: 0 to 60 meters per minute Edge-aligning accuracy: ±6mm Max error for length counting: 0.5% Dimension: 2860 (l) x 2650(w) x 2050(h) mm Weight: 1200 kg Component Infrared photoelectric screw rod: 1 piece Inverter: 3 pieces, brand Sanchuan Taiwan Electric counter: 1 piece Inverter: 3 pieces Automatic stop device: 1 piece Motor: 4 pieces, brand Deli German Led light: 2 pieces, top and bottom Fabric roller: 4 pieces
