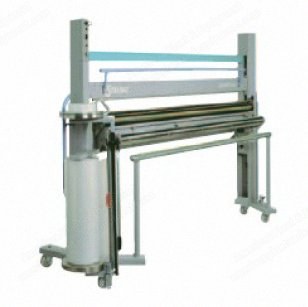

Description Overview Movable device for welding a plastic film to the warp ends in front of the reed Specifications Maximum warp width: 2200 mm Yarn count range: Nm 15 to 100, Ne 9 to 60, 10 to 67 tex Mains voltage selectable: 200 – 250 VAC 60 or 50 Hz Machine width: 3240 mm Machine height: 1500 to 1900 mm Machine depth: 850 to 1200 mm Working height (adjustable): 800 to 1200 mm Weight: 250 kg Power consumption: maximum 3 kVA Included 2 additional rolls of 1400 mm x 0.25 mm, approximately 100 meters 2 additional rolls of 55 mm x 0.25 mm, approximately 200 meters Installation in the amount of 20 hours included in the price
