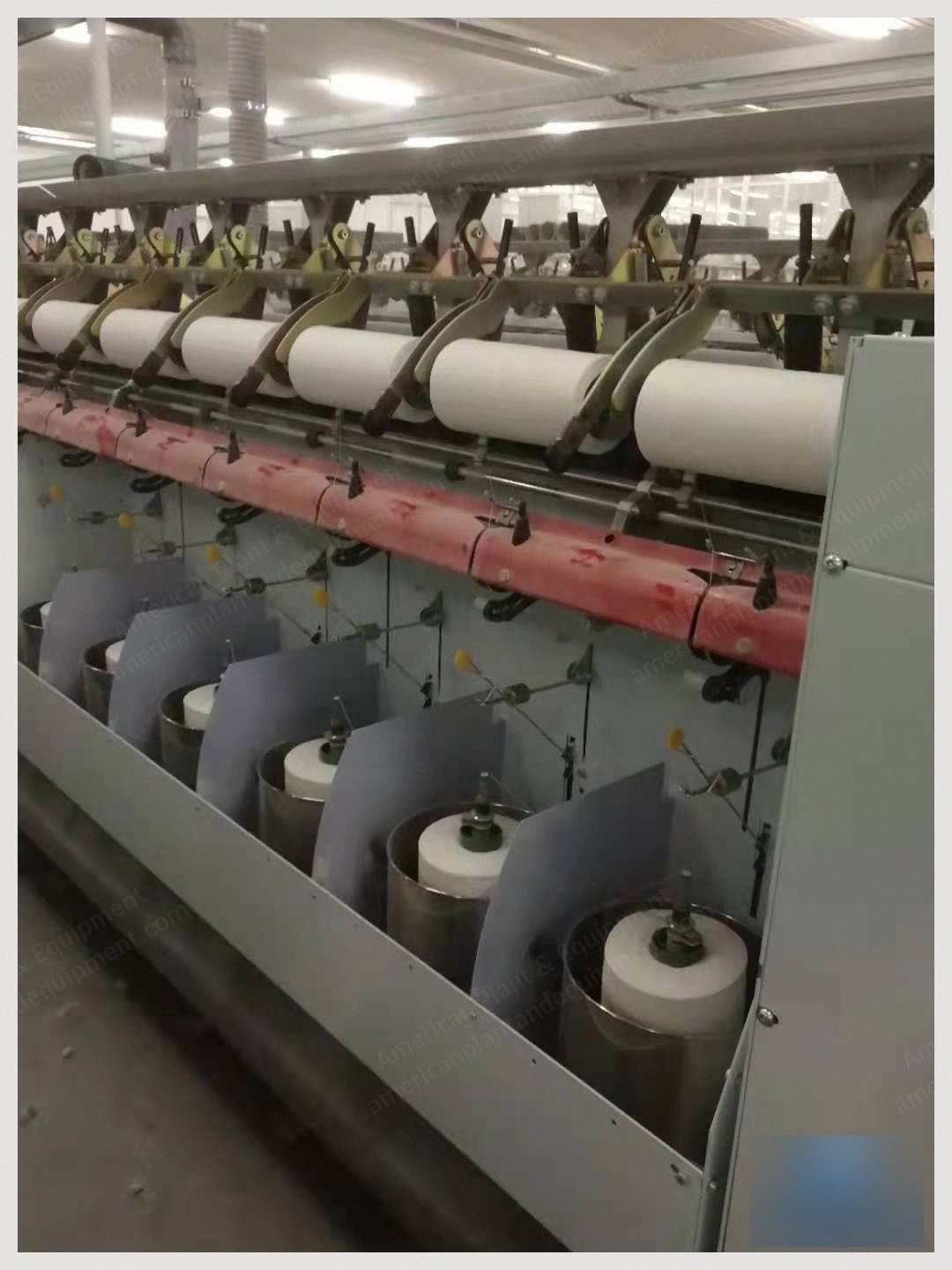

NovaStar, WN206, New, 120 Spindles, 10" Traverse, 335mm Spindle Gauge (New)

NovaStar, WN206, New, 120 Spindles, 10" Traverse, 335mm Spindle Gauge

Description

  1. Overview

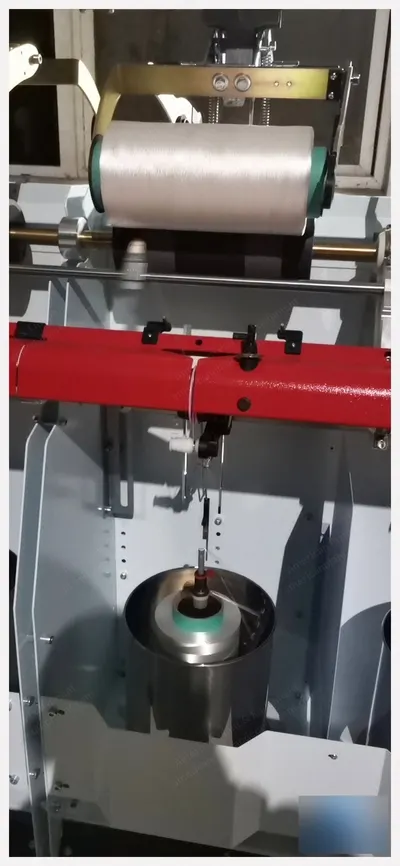

    1. Two-for-one twister, similar to VTS-05 type
    2. 120 spindles
    3. Spindle gauge: 335
    4. Number of sections: 10
    5. Machine color: light grey, charcoal
  2. Specifications
    1. Raw material: blending
    2. Range of counts: Ne3 to 24S
    3. Twist direction: S / Z
    4. Range of twist (T/m): 50 to 1800
    5. Feed package: untwisted yarn
    6. Cylindrical assembly wound package: see the sample tube from the customer
    7. Traverse: 10" (280mm)
    8. Maximum tube length: 290mm
    9. Inside diameter of tube: 44mm
    10. Maximum outside diameter of feed package: 240mm
    11. Take up: twisted yarn
    12. Cylindrical or conical cross wound package: see the sample tubes from the customer, (3x30" tube 78mm x 45mm)
    13. Traverse: 10 inch (280mm)
    14. Tube length: 290mm maximum
    15. Maximum diameter of feed package: 280mm
    16. Crossing angle: 30 to 43°
    17. Dimensions: 27000x1070mm
  3. Drive and Control
    1. Main drive and servo driver
    2. Spindle motor: 30 kW synchronized motor, Inovance frequency inverter
    3. Winding motor: 2.5 kW motor, Inovance frequency inverter
    4. Servo driver: 1.8 kW servo motor, Inovance servo driver
    5. PLC controller: Inovance system
    6. Touch screen: Inovance touch screen
    7. Anti-patterning device: controlled by PLC and servo driver
    8. Adjustment of TPM: any TPM from 80 to 2800
    9. Spindle drive, method of driving: Habasit tangential belt
    10. TFO spindle bearing: center bearing system rigidly fixed to spindle rail
    11. Spindle brake: operated by foot lever
  4. Take-Up and Tension
    1. Balloon thread guides: height adjustable per section on a scale with special surface treatment
    2. Take-up tension: by pre-takeup roller, individually adjustable yarn deviation with a roller
    3. Drive of take-up packages: by friction rollers
    4. Cradle: cradle with special pressuring device for uniform density
    5. Centering discs for the take-up tubes: simple ball and socket type
    6. Thread tension: tension capsule with 6 positions
    7. Pre-take-up: 60%
  5. Dimensions
    1. Overall length: 2390mm
    2. Overall width: 1070mm
    3. Required floorspace for 120 spindles: total length 27 meters, total width 1070mm
  6. Optional Items
    1. Air threading device
    2. Air lifting device
    3. Waxing device
    4. Tail yarn device
    5. Front wall
    6. Oil lubrication (flyer)
