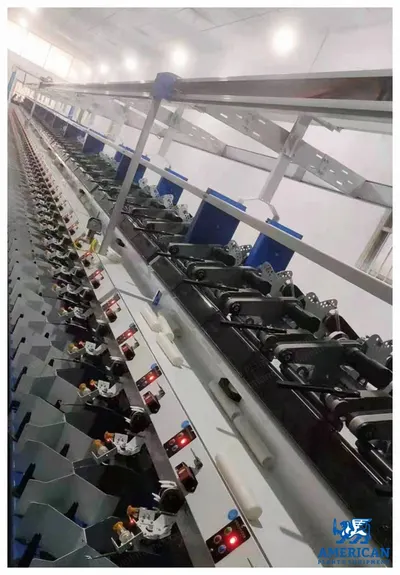

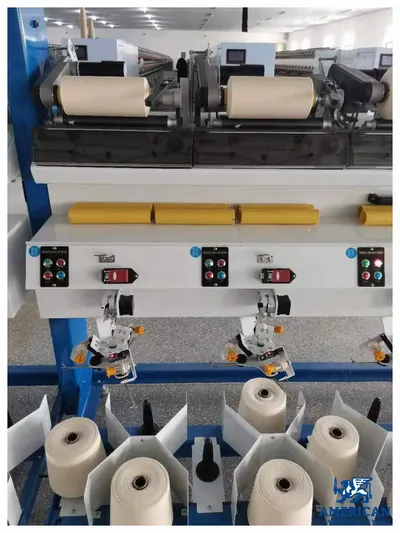

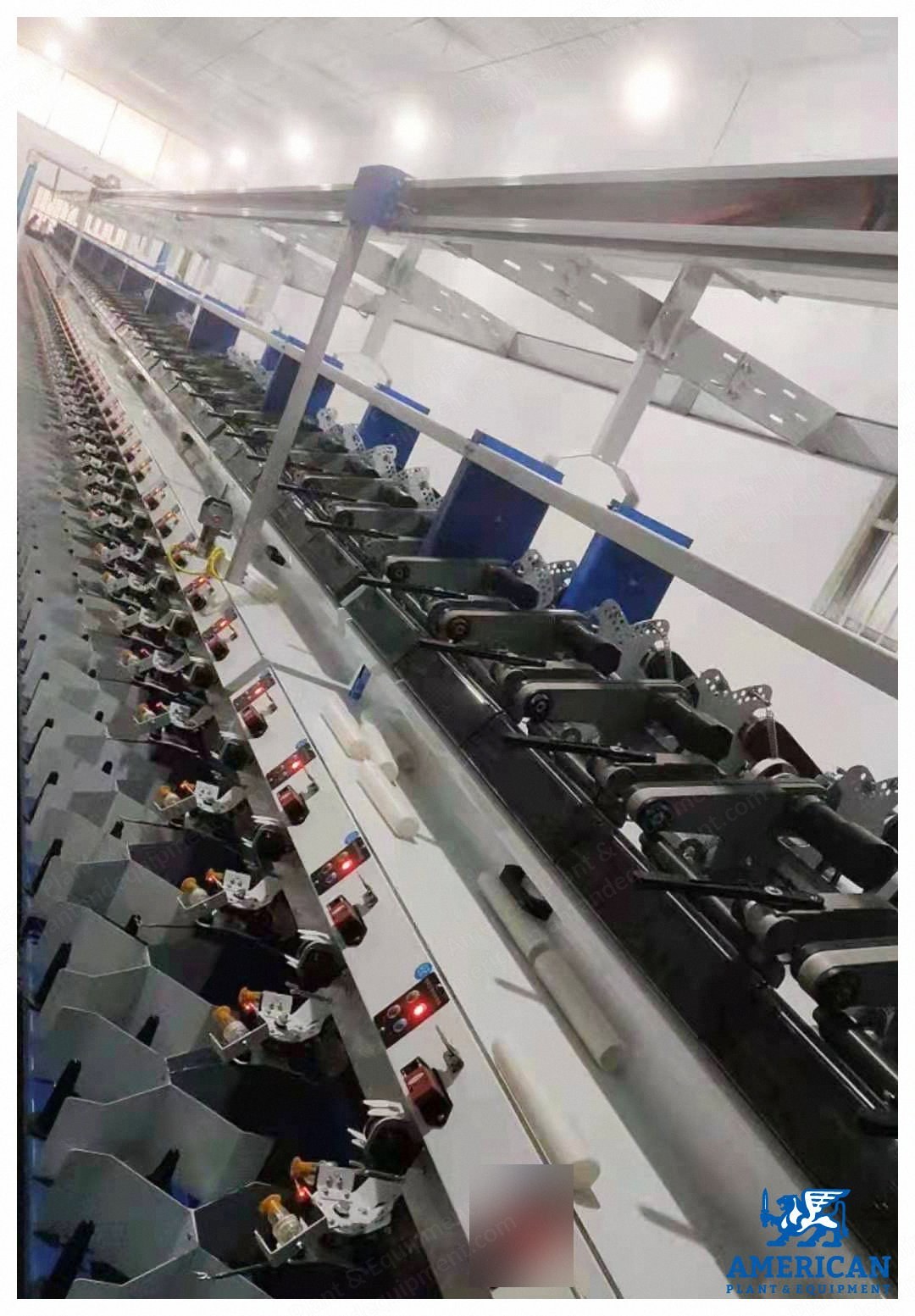

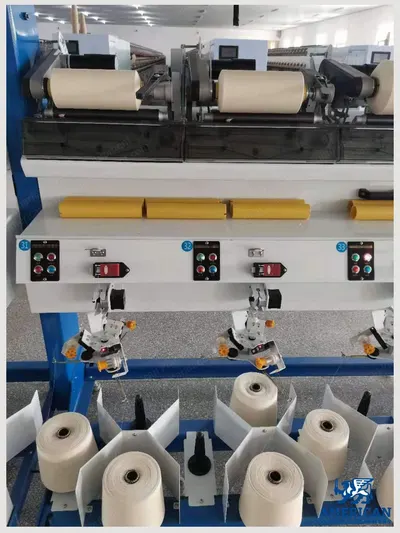

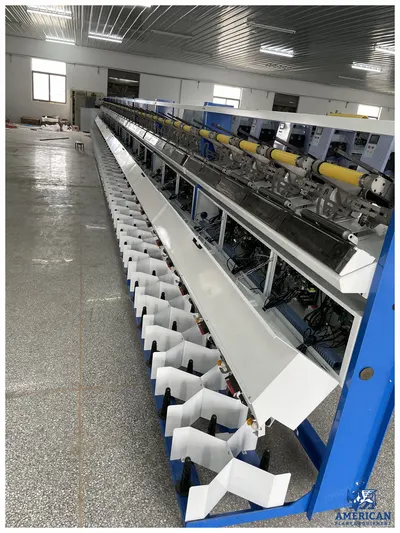

NovaStar, WN207, Assembly Winder, 48 Positions, Spindle Gauge 520mm, 10 Inch Traverse, New (New)

NovaStar, WN207, Assembly Winder, 48 Positions, Spindle Gauge 520mm, 10 Inch Traverse, New

Description

  1. Specifications
    1. Spindle gauge: 520 mm
    2. Overall length: 13616 mm
    3. Overall width: 1500 mm
    4. Traverse system: precision
    5. Winding speed: 500 to 1000 meters per minute
    6. Speed control: frequency inverter
    7. Driving style: single motor
    8. Control motor: start and stop individually
    9. Motor power: 350 watts per spindle
    10. Ribbon formation: electrical

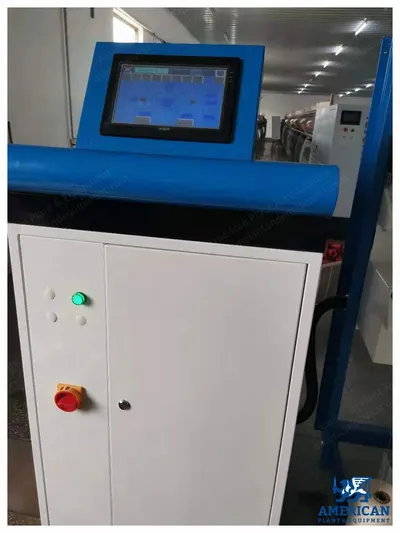

    11. Digital indicator: touch screen for speed, length, productivity
    12. Yarn tensioner: tension spring with 8 positions for each yarn
    13. Yarn sensor: electrical sensor for each yarn
    14. Yarn cutter: electrical
    15. Machine type: Double-sided
  2. Take-Up and Feeding Package
    1. Traverse: 10 inch (280 mm)
    2. Tube length: 290 mm (maximum)
    3. Tube diameter: 43 mm
    4. Maximum diameter of take-up package: 200 mm
    5. Maximum outside diameter of feed package: 250 mm
    6. Numbers of yarn: 3-ply
