Truetzschler, Spinnbau, Nonwoven Thermobonding and Chemical Bonding Line, 130in Working Width, 1000 lbs/hr Capacity

Truetzschler, Spinnbau, Nonwoven Thermobonding and Chemical Bonding Line, 130in Working Width, 1000 lbs/hr Capacity

Description

  1. Overview
    1. Capacity: 1000 lbs per hour
    2. Composed of a complete nonwoven production line
  2. Blend Line

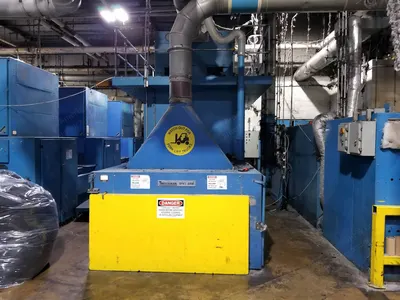

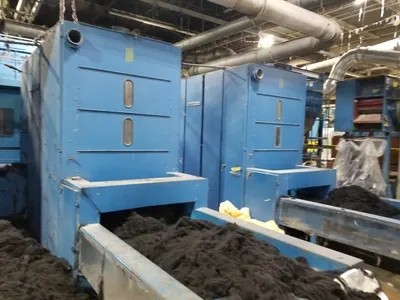

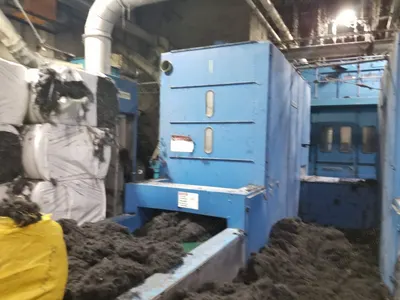

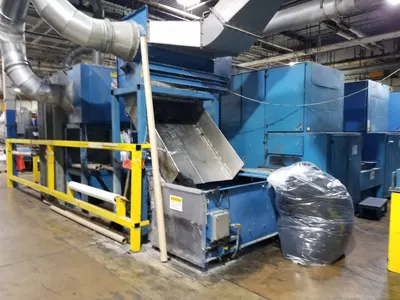

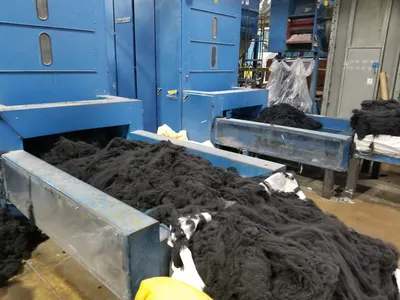

    1. Truetzschler blend line with 3 Truetzschler 48" manual feed fiber hoppers, model BOWO46, year 1995, each 48" wide with BOW1200 electronic weigh commanders
  3. Fiber Conveying and Opening
    1. Truetzschler fiber belt conveyor, model FM beater, year 1993, with inline hump magnet, fiber material transport blower fan, motor, and process piping
    2. Truetzschler fiber reserve, model EMA-1200, year 1997
    3. Truetzschler fiber fine opener, model TFVI-1600, year 1995

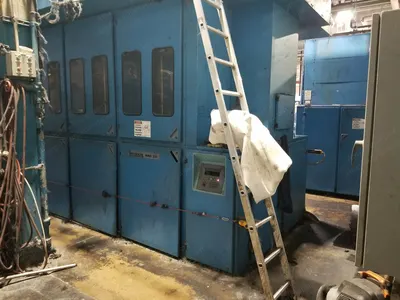

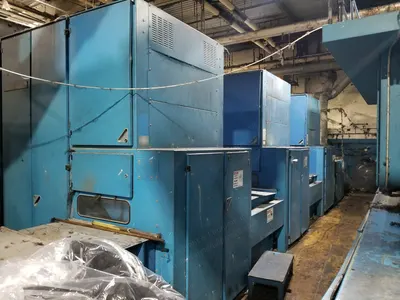

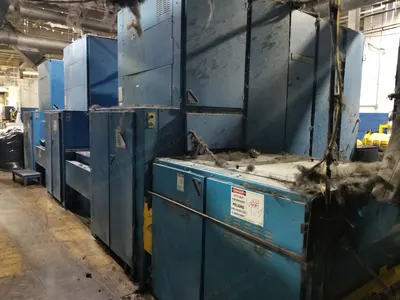

    4. Truetzschler 8-cell multi-mixer unit, model MM8-235, year 1995
    5. Temafa 40" fiber feed hopper, 40" wide, totally enclosed, complete with Truetzschler condenser, fiber material transport blower fan, motor and process piping
  4. Waste Processing

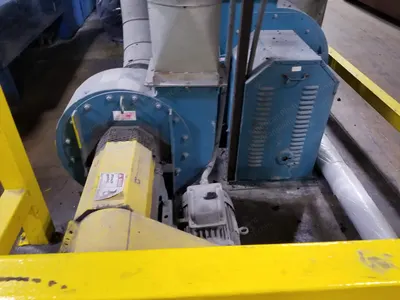

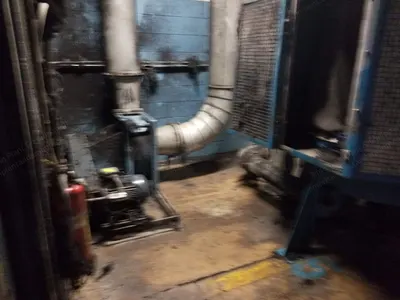

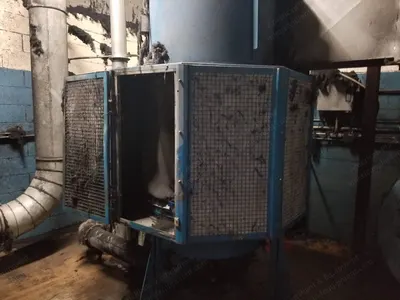

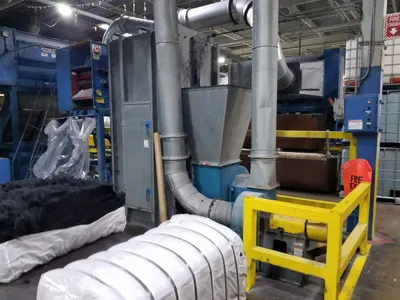

    1. Waste process consisting of 1 Twin City RBO-510 material transport blower fan with 10 hp motor, Twin City BOV-222 material transport blower fan with 10 hp motor, dust house, Continental rotary filter/separator, 24" diameter x 24" wide
  5. Carding

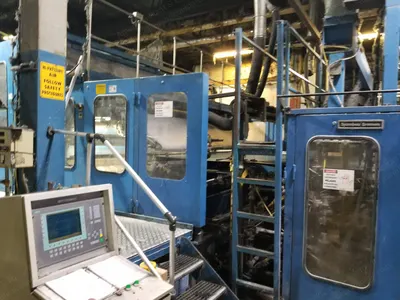

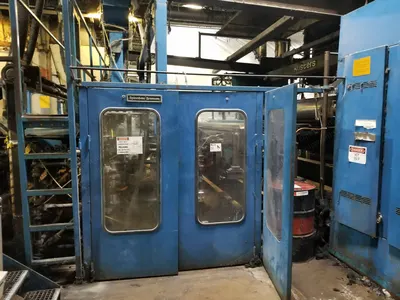

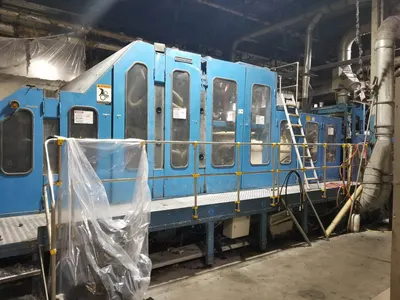

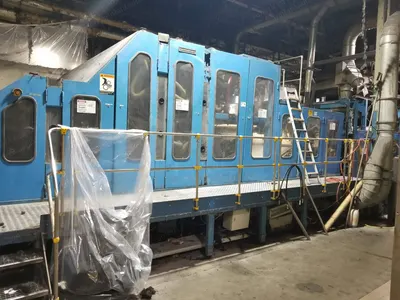

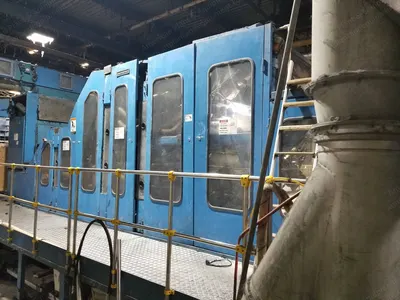

    1. Spinnbau Bremen 3500 mm nonwoven card, year 1996, double doffer, complete with Truetzschler card chute feed, model FBK3500, year 1997, 3500 mm wide, double doffing with lint removal system
  6. Calender and Resin Pad

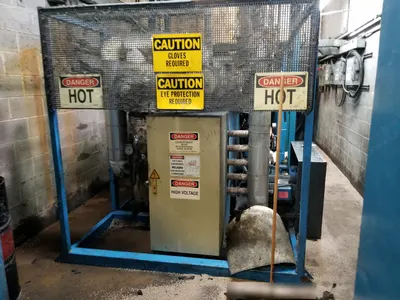

    1. Kusters three-roll vertical calendar, year 1995, 16" diameter x 130" face rolls, with Aura hot oil heater
    2. Unknown manufacturer two-roll vertical resin pad (plant constructed), rubber/stainless steel rolls, 16" diameter rolls x 144" wide, 8 ton pressure, SS trough
  7. Drying Range

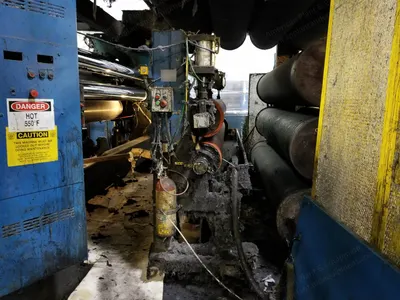

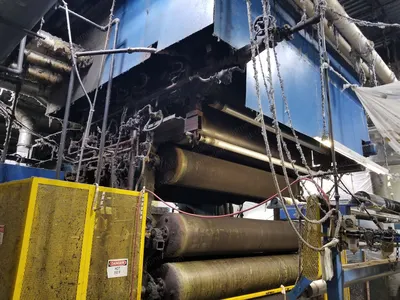

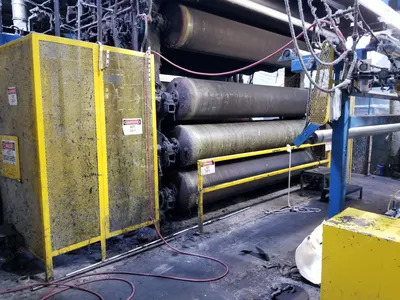

    1. Steam can range, consisting of 18 steam cans (23" diameter x 132" face), two-stacks of 9 steam cans/stack complete siphons, joints and belt pulleys with overhead steam hood and exhaust fan
    2. The cylinder dryers are heated by steam
  8. Winder

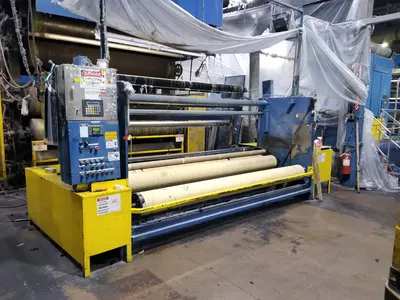

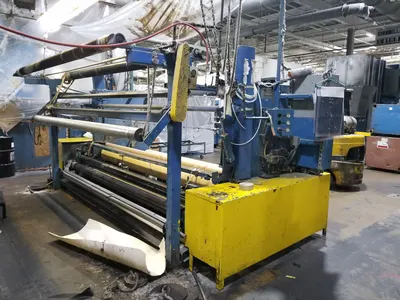

    1. Parkinson 130" two-roll winder, year 1980
  9. Electrical and Auxiliary Systems

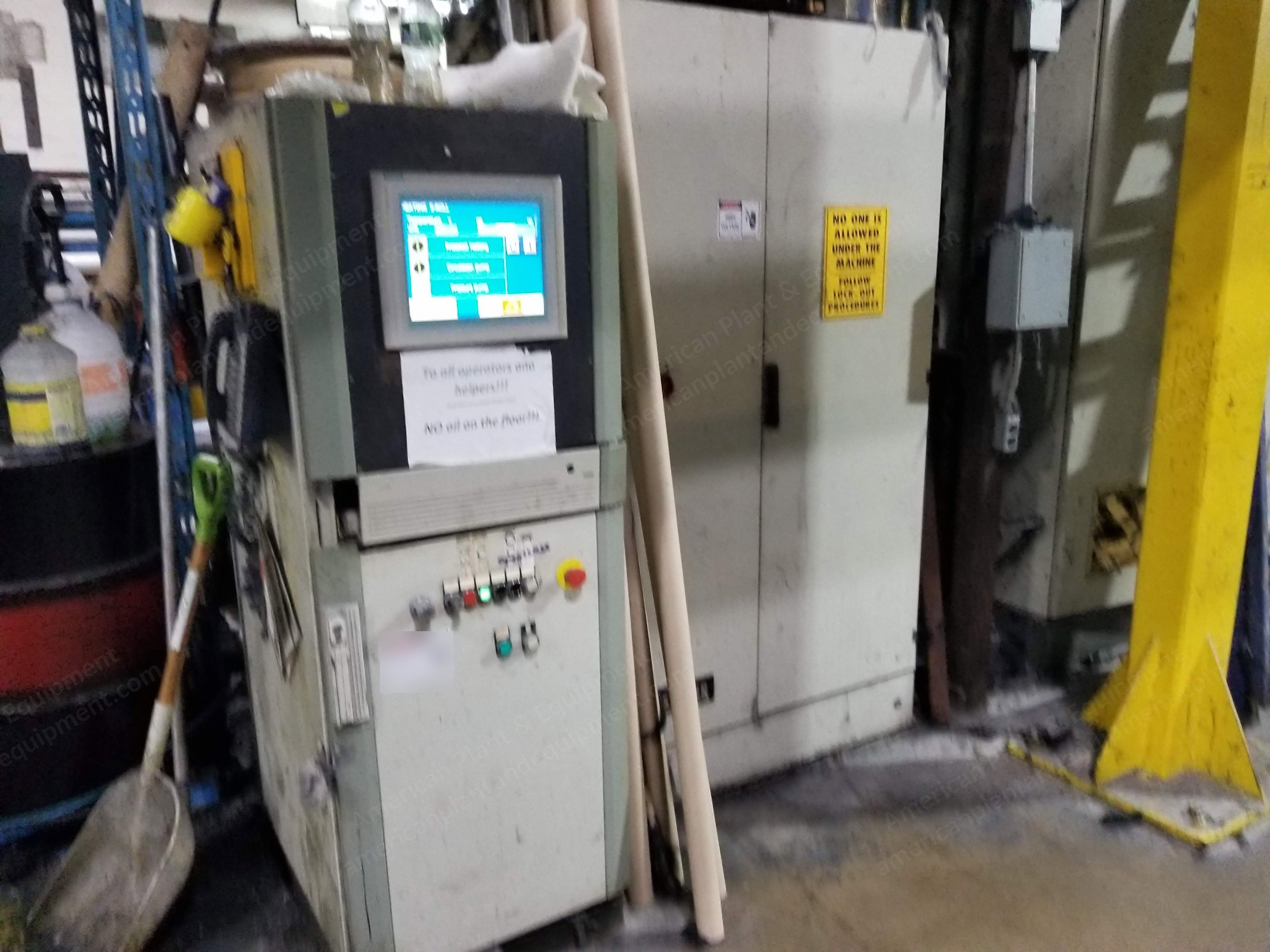

    1. Lot of all associated motor control drive panels, system control panels, electrical wiring, pressurizing plant air piping, process piping, valves and pump system
