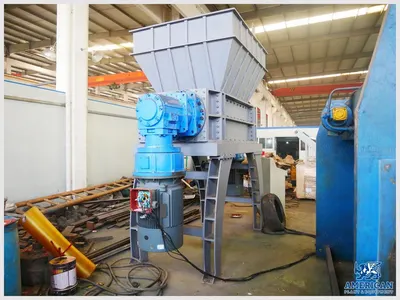

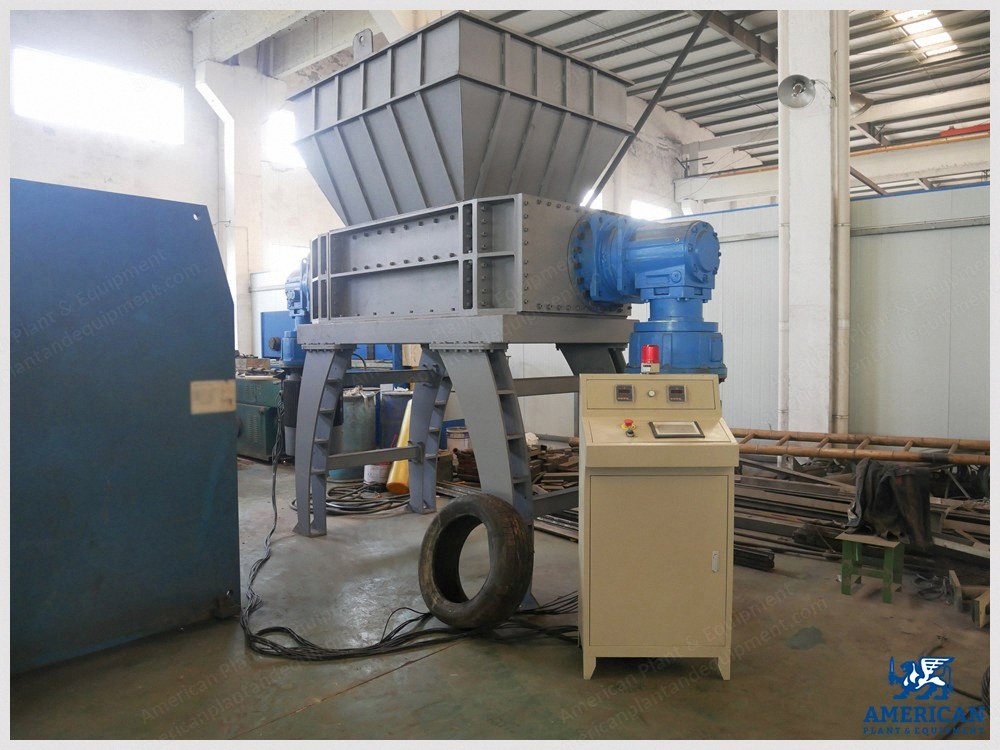

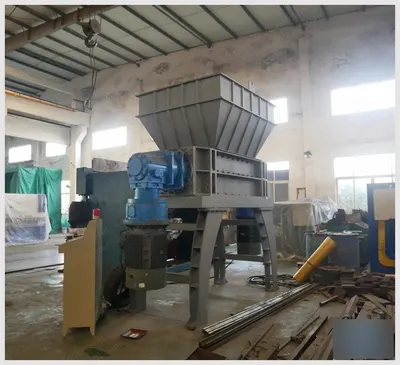

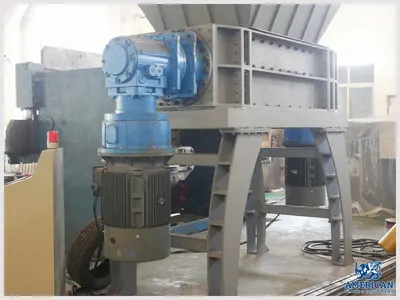

NovaStar, SG160, New, Double Shaft Shredder, 1500mm Working Width, 2x 75 kW (New)

NovaStar, SG160, New, Double Shaft Shredder, 1500mm Working Width, 2x 75 kW

Description

  1. Overview
    1. Double shaft shredder
    2. Working width of the rolls: 1500 mm
    3. Chamber dimensions: 1500 x 980 mm
    4. Torque force: 12,000 Nm
  2. Specifications

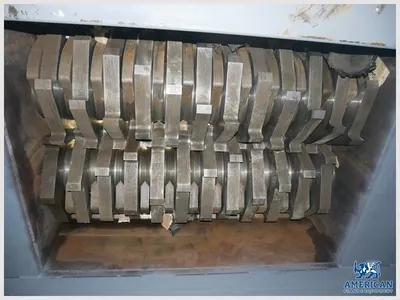

    1. Knives: 25 pieces, diameter 500 x 60 mm (OD x T)
    2. Spacers: 25 pieces, diameter 280 x 60 mm (OD x T)
    3. Shafts: 2 pieces, diameter 220 x 2800 mm (OD x T)
    4. Blade material: 42CrMo/4140 wear-resistant, hard and sharp
    5. Shaft material: 40Cr
    6. Main structure: No. 45 steel
    7. Voltage: 440 Volts, 3-Phase, 60 Hz
    8. Reducer: P11, 2 sets (Tongli or Guomao brand)
  3. Controls
    1. Siemens PLC touch screen
  4. Dimensions and Weight
    1. Dimensions: 4000 mm length x 1500 mm height x 2900 mm width
    2. Weight: 12,000 kg
  5. Packing and Shipping
    1. Packed dimensions: length 1340 x width 820 x height 1900 mm (plywood box)
    2. Packed weight: 850 kg
    3. HS code: 8477800000
