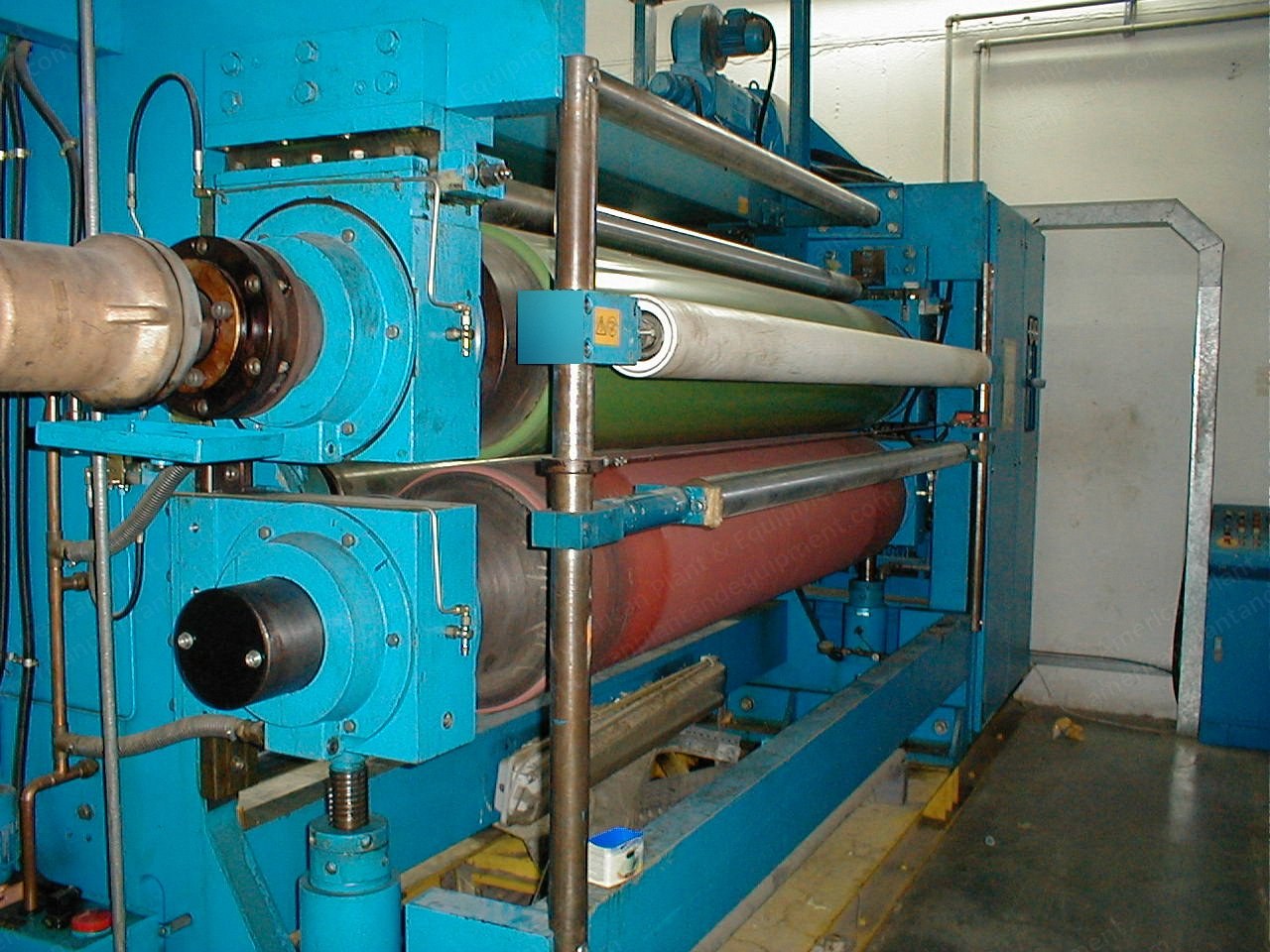

Ramisch Kleinewefers, RKK 210, 1994, Thermobonding Calender, 2200mm Working Width, 2-Roll

Ramisch Kleinewefers, RKK 210, 1994, Thermobonding Calender, 2200mm Working Width, 2-Roll

Description

  1. Overview
    1. For laminating of nonwoven fabrics
    2. Material: PE
  2. Specifications
    1. Maximum roll width: 2200 mm (100)
    2. Roll surface width: 2400 mm (94.5)
    3. Top roll: steel, teflon-coated, roll diameter 430 mm (16.9)
    4. Bottom roll: steel, silicone/rubber coated, roll diameter 470 mm (18.5)
    5. Cooling roll: 200 mm diameter (7.8)
    6. Heating roll: 200 mm diameter (7.8)
    7. Operating pressure: 15 to 35 N per mm
    8. Speed: 5 to 30 meters per minute
    9. Heating system: thermal oil heating
    10. Input power: steel roll about 5 kW, hydraulic about 3 kW, lubrication about 2 x 0.1 kW
    11. Voltage: 380 volts, 50 Hz, 3-phase with loadable neutral conductor
    12. Control and solenoid valve voltage: 220 volts, 50 Hz, G 24 V
    13. Paint finish: RAL 5015, sky blue
    14. Drive side: right, viewed in direction of fabric passage
    15. Cooling water: maximum 15 to 18 °C at 2 to 3 bar
