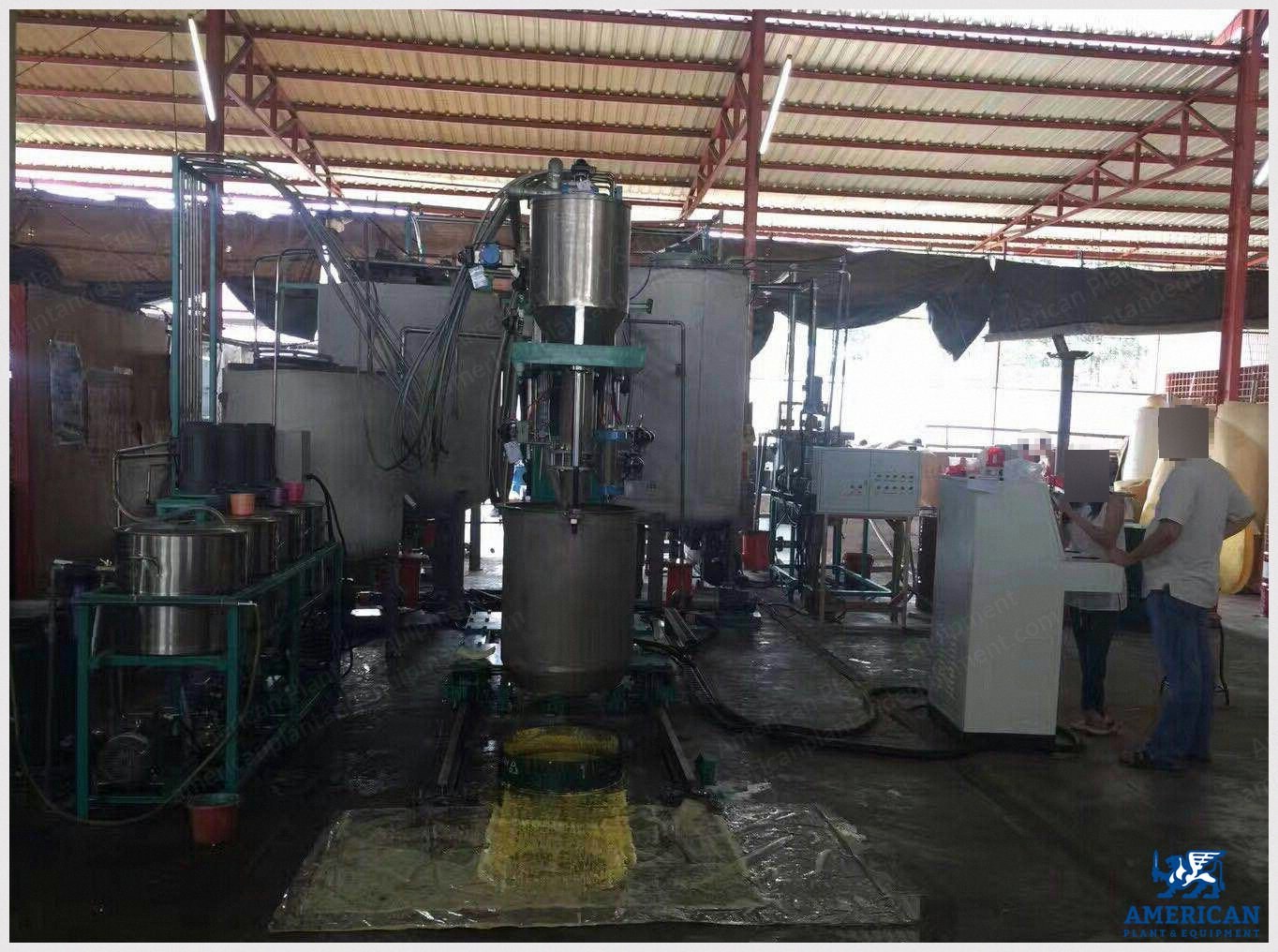

NovaStar, FG140, Automatic Box Foaming Machine, 180L Max Output, 7 Chemical Lines, 35 kW (New)

NovaStar, FG140, Automatic Box Foaming Machine, 180L Max Output, 7 Chemical Lines, 35 kW

Description

  1. Overview
    1. Machine is designed for making furniture foam.
    2. Maximum output per cycle: 180 liters.
    3. Foaming density: 10 to 60 kg per cubic meter.
    4. Foaming height: less than 1200 mm.
    5. Automatic feed and automatic mixing.
  2. Chemical Lines
    1. 3000 liter ppg, 1 line.
    2. 2000 liter tdi, 1 line.
    3. 500 liter mc, 1 line.
    4. 100 liter water, 1 line.
    5. 50 liter activators, 3 lines.
  3. Pumps and Control
    1. American and Taiwanese foaming pumps (tdi line uses asian brand magnetic coupling pump).
    2. Touch screen control panel.
    3. With chiller.
  4. Power and Electrical
    1. Mixing head power: 7.5 kw.
    2. Total power: 35 kw.
    3. 220 volts, 3-phase, 60 hz (or as per customer).
  5. Molds and Dimensions
    1. With 2 pieces manual square foaming molds.
    2. Mold dimensions: length 2440 mm x width 2050 mm x height 1200 mm.
  6. Certification
    1. Ce certificate.
