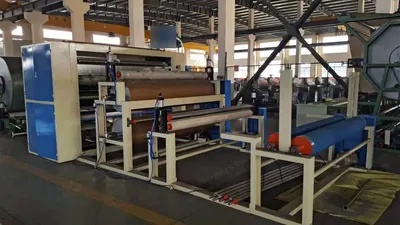

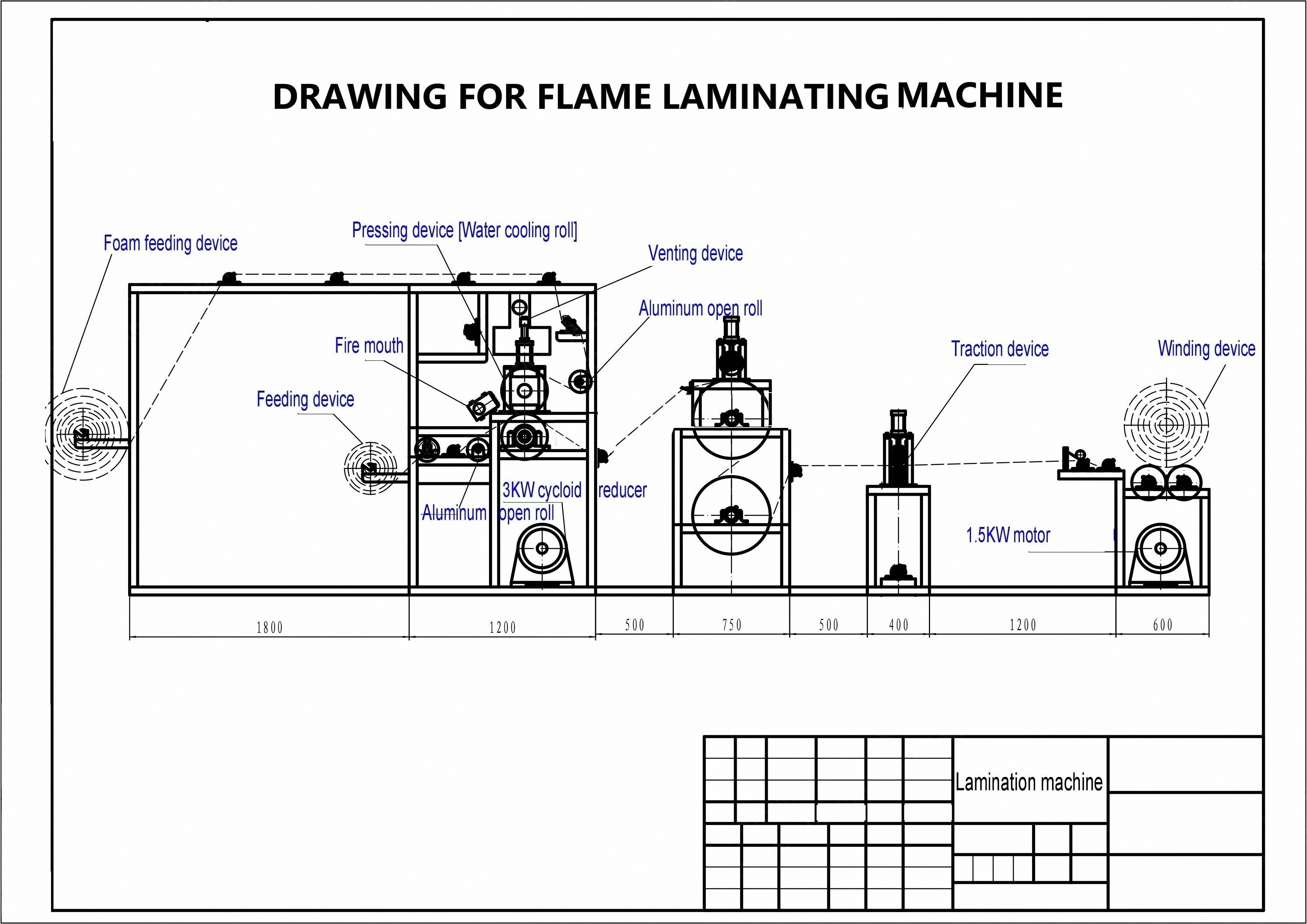

NovaStar, FL122, Flame Laminating Machine, Working Width 2100mm, Speed 40 m/min (New)

NovaStar, FL122, Flame Laminating Machine, Working Width 2100mm, Speed 40 m/min

Description

  1. Overview
    1. Flame laminating machine
    2. Roller width: 2300 mm
    3. Maximum material width: 2100 mm
    4. Burning fuel: LPG, LNG
    5. Combustion volume: 1.5 to 2.0 m³ per minute (gas mixture)
    6. Total power: about 10 kW
    7. Power: 220 volts, 3-phase, 60 Hz
    8. Machine speed: 10 to 40 meters per minute
    9. Machine weight: 3800 kg
    10. Dimensions: length 8000 x width 3500 x height 2500 mm
  2. Main Configuration
    1. Flame roller, diameter 299 mm x width 2300 mm, 2 pieces
    2. Expanding roller (aluminum), diameter 150 mm x width 2300 mm, 2 pieces
    3. Tenter, 2 sets
    4. Cylinder SCJ100*60-30, 2 sets
    5. Cylinder SC80*60, 1 set
    6. Cylinder SC80*170, 1 set
    7. Bearing housing SN210, 2 sets
    8. Bearing 2210, 4 sets
    9. Bearing housing (sliding), 2 sets
    10. Flame blade 2300, 1 set
    11. Ignition device, 1 set
    12. Axial flow fan, 1 set
    13. Drainage pipeline, 1 set
    14. Mixed-flow fan, 1 set
    15. Electronic flow meter, 1 set
    16. Cycloidal pin wheel gear motor, 2.2 kW, 1 set
    17. Converter 2.2 kW, 1 set
    18. Fabric guide roller, 4 pieces
    19. Rotary joint, 4 pieces
    20. Metal hose, 1 piece
    21. Tensioner pulley, 1 set
    22. Bearing P205, 12 sets
    23. Bearing P206, 2 sets
    24. Bearing 6204, 1 set
  3. Cooling Device
    1. Cooling roller, diameter 320 mm x width 2300 mm, 2 pieces
    2. Stepless gear box P2, 1 set
    3. General rubber roller, diameter 120 mm x width 2300 mm, 1 piece
    4. Cylinder SCJ80*60-30, 2 sets
    5. Rotary joint, 4 pieces
    6. Metal hose, 1 piece
    7. Fabric guide roller, 1 piece
    8. Tensioner pulley, 1 set
    9. Bearing 6208, 4 sets
    10. Bearing housing SN216, 4 sets
    11. Bearing T206, 2 sets
  4. Winding Device
    1. Winding roller, diameter 219 mm x width 2300 mm, 2 pieces
    2. Fabric guide roller, 2 pieces
    3. Traction rubber roller, diameter 120 mm x width 2300 mm, 1 piece
    4. Press roller, diameter 120 mm x width 2300 mm, 1 piece
    5. Cylinder SCJ80*60-30, 2 sets
    6. Bridge shaft, 1 piece
    7. Counter, 1 set
    8. Worm gear box WPA80-40, 11 sets
    9. Cycloidal pin wheel gear motor, 1.5 kW, 1 set
    10. Bearing P206, 6 sets
    11. Bearing T206, 4 sets
    12. Bearing P205, 2 sets
  5. Unwinding Device
    1. Hanger, 4 pieces
    2. Fabric perforating rod, 2 pieces
    3. Fabric guide roller, 2 pieces
    4. Bearing P205, 4 sets
  6. Equipment Surface Painting
    1. Putty
    2. Rustproof primer
    3. Surface spraying paint (custom color)
  7. Notes
    1. All pneumatic components are Airtac, Taiwanese brand
    2. An emergency stop switch will be installed in a relevant position
    3. Detailed structure and configuration design may be adjusted without damage to the performance of the complete machine (replacement shall be done within the scope of the same brands)
  8. Package
    1. Packed with protective film and loaded in container
