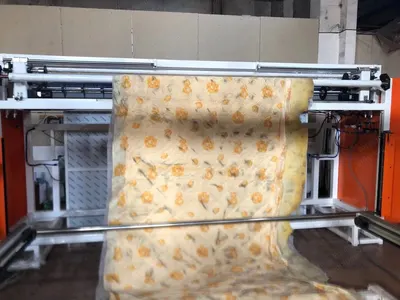

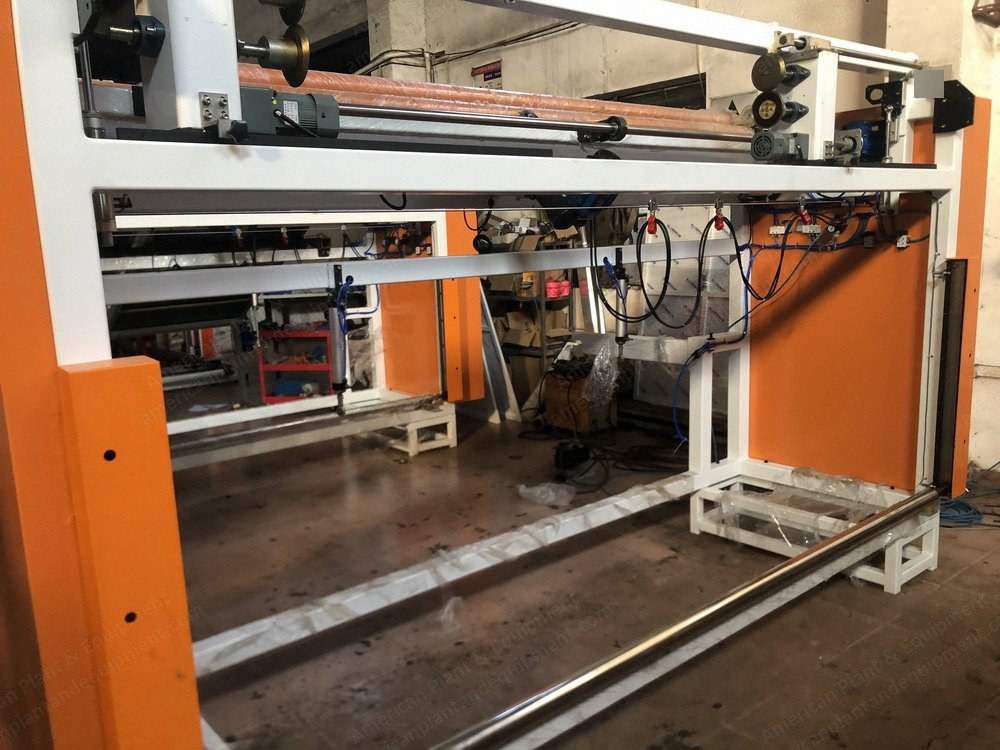

NovaStar, MA171, Panel Cutter, 3000x3000mm Cutting Capacity, 3 Unwinding Rollers, 4.5 kW (New)

NovaStar, MA171, Panel Cutter, 3000x3000mm Cutting Capacity, 3 Unwinding Rollers, 4.5 kW

Description

  1. Overview
    1. Cutting width: 3000 mm x 3000 mm (120 in by 120)
    2. Cutting length: 3000 mm (minimum, can be customized)
    3. Cutting speed: rolling 20 m/min, transection 3 m/cut
    4. Cuts approximately 4 to 5 pieces per minute for 2150 mm length fabric, depending upon the material (this is accomplished with servo system)
    5. Can cut 3 pieces together simultaneously
    6. With touch screen, can automatically set cut length
  2. Specifications
    1. Max. power: 4.5 kW
    2. 220 volts, 60 or 50 Hz (per customer’s requirement)
    3. Machine dimensions: 3200 x 3500 x 1700 mm
    4. 1500 kgs
  3. Included
    1. With 3 unwinding rollers
  4. Shipping
    1. Minimum order quantity: 2 sets
    2. 1 20 foot container holds 2 sets
