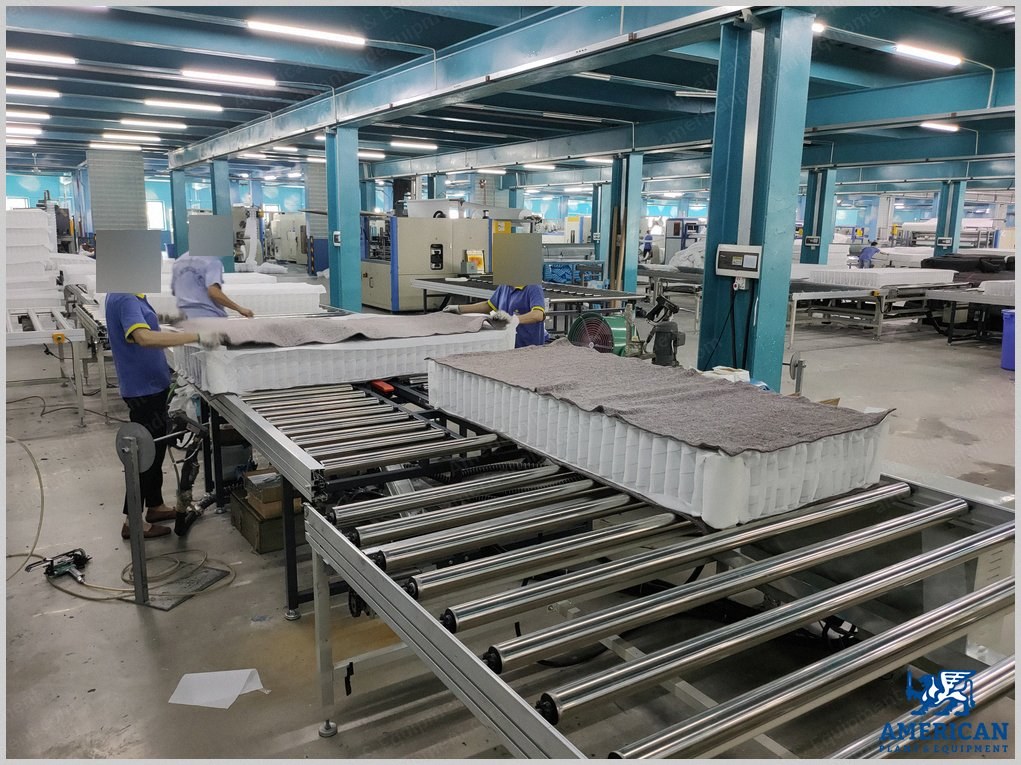

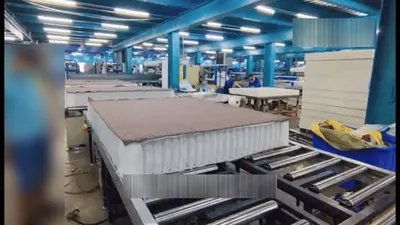

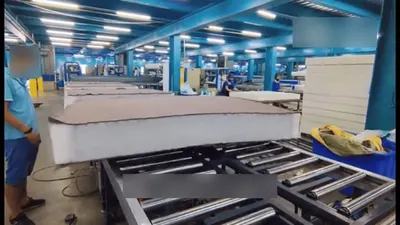

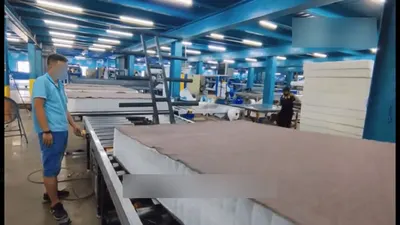

NovaStar, MH167, Conveyorized Mattress Flip Table, 4000x2000mm, 180 Degree Flip, 360 Degree Turning (New)

NovaStar, MH167, Conveyorized Mattress Flip Table, 4000x2000mm, 180 Degree Flip, 360 Degree Turning

Description

  1. Overview
    1. Roller diameter: 63 mm
    2. Speed regulating motor: 250 watts
    3. Maximum speed: about 20 meters per minute
    4. Uses four guide cylinder jacking
    5. Stroke: 150 mm
    6. Rotating load capacity: 80 kg
    7. Approximately 9 rpm

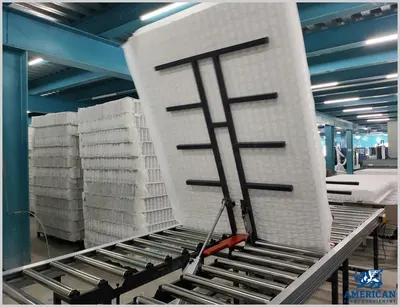

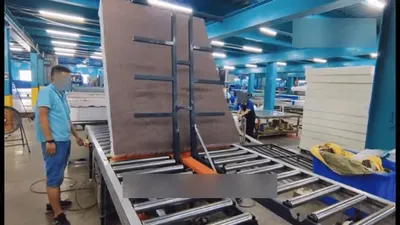

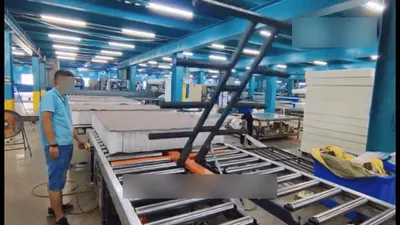

  2. Turnover Mechanism
    1. Turnover is cylinder driven, with two cylinders diameter 63 mm to lift the mattress up and two cylinders diameter 50 mm to catch the mattress and slowly lower it down.
  3. Dimensions
    1. Length: 4000 mm
    2. Width: 2000 mm
    3. Height: 750/900 mm
  4. Specifications
    1. Flip function: 180 degrees
    2. Roller material: Stainless steel
    3. Turning function: 360 degrees
    4. Roller center distance: 200mm
