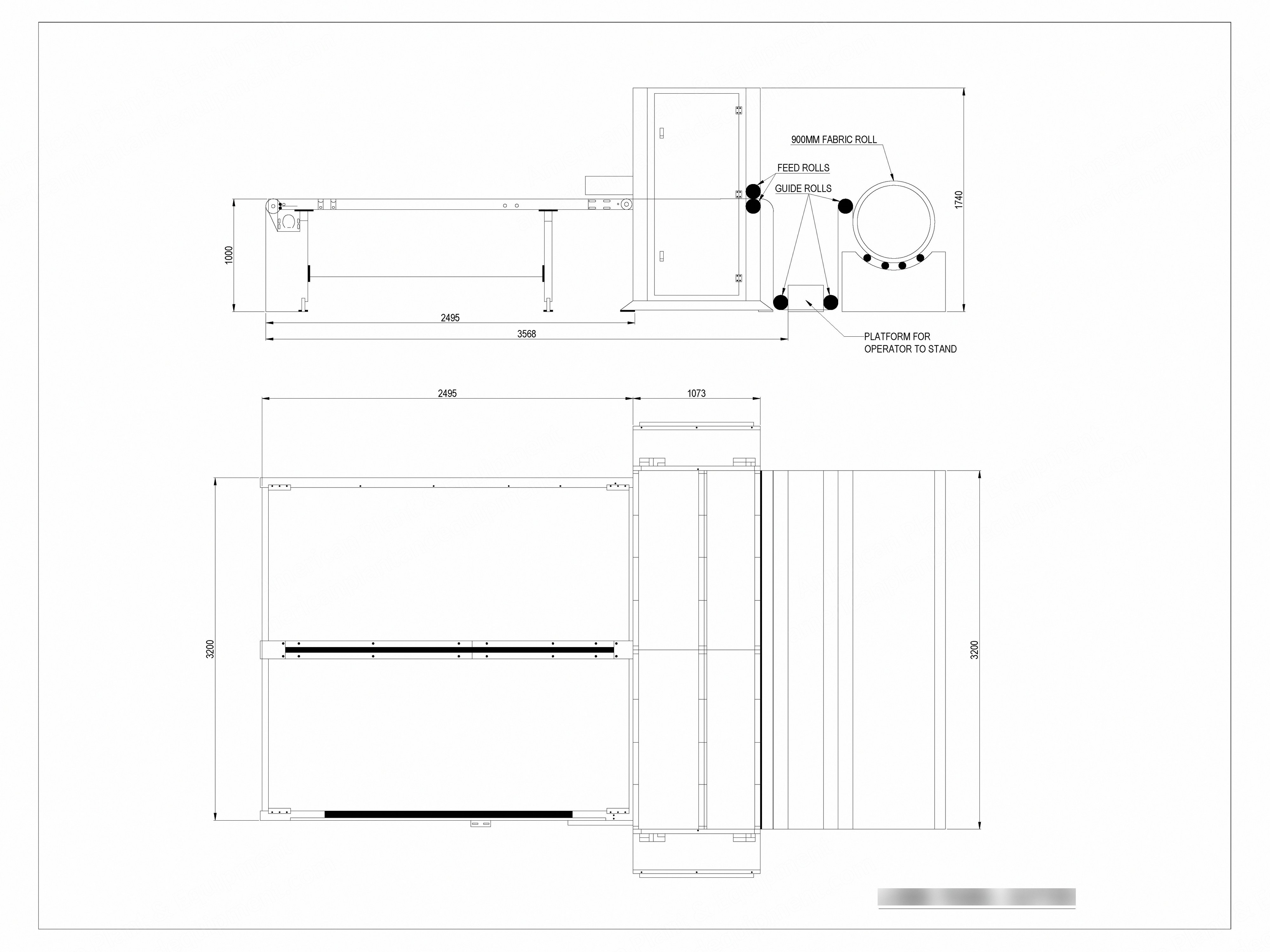

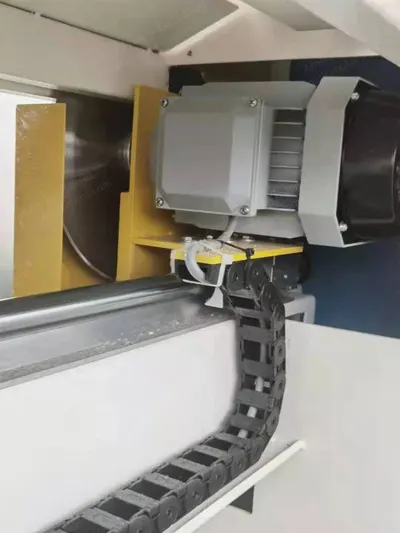

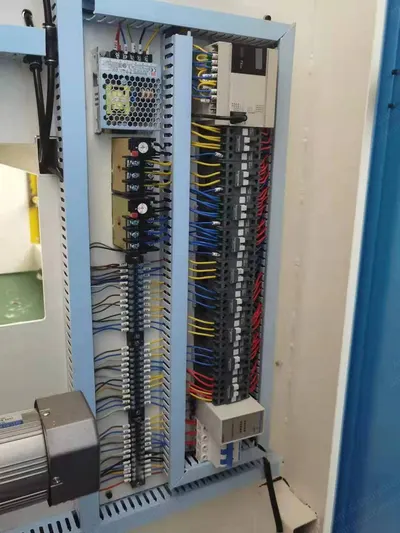

Description Overview Pneumatic slitting cutter design 5 inch touch screen interface Controlled by PLC and touch screen Can cut maximum width of 2400mm by the side trimmer Length is cut by crosscutting blade, length decided by operator If no more than 2300mm, then you can cut by the mode of encoder If more than 2300mm, you can cut by photoelectric inductor Specifications Cross cutting speed: 10 meters per minute Cutting thickness: 50mm maximum Maximum “X” dimension: 2400mm Minimum “X” dimension: 50mm Minimum “Y” dimension: 30mm Power: 2 kW Voltage: 220 volts, 60 or 50 Hz Weight: 800 kg Dimensions: 3570mm length x 3200mm width x 2200mm height Packed dimensions: 3300mm x 1300mm x 1800mm Gross weight: 1000 kgs Motors 10 motors on the machine Roller driver motor with brake, 1 unit Crosscutting blade motor, 1 unit Crosscutting blade moving motor, 1 unit Side trimmers motors, 2 units Side trimmers moving motors, 2 units Slitters blades motor, 1 unit Conveyor belt motor, 1 unit Photoelectric inductor, 1 unit Blades 3 types of blades Crosscutting blade, 1 piece, diameter 280mm Side trimmers blades, 2 pairs, 1 pair with 2 pieces, total 4 pieces, diameter 125mm Slitters blades, total 10 pieces, diameter 180mm Included Touch screen interface PLC control system Photoelectric inductor All motors and blades as listed above Not specified in the provided description Image
