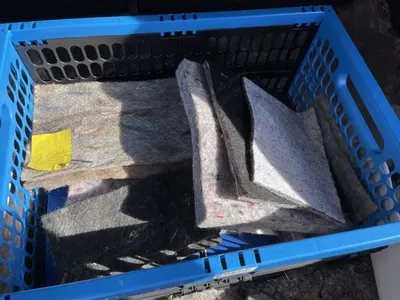

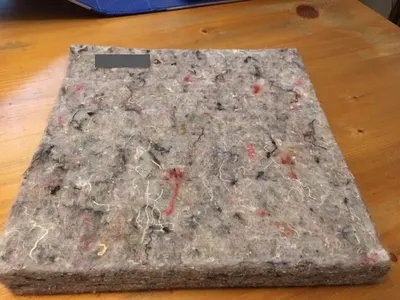

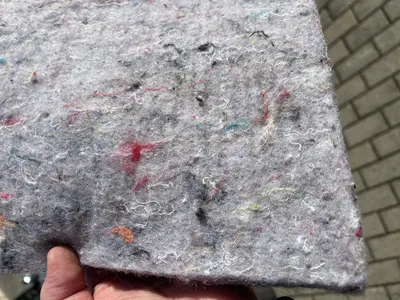

Produces a wide variety of nonwovens for mattress, insulation, furniture, automotive and clothing industries, separating layers in multi-composite systems and others.
Producible weight per unit area is between 300 to 3000 gsm depending on raw material.
For raw materials: natural fibers and man-made fibers: PES 1.6 to 3.3 dtex, VIS 1.7 dtex, PP fibers 11 to 17 dtex, glass fibers 12 to 24 µm, recycled fibers.
Processes fiber lengths up to 80 mm.
The performance of the system is up to 600 kg per hour depending on raw material used and weight per unit area.
Finished product width: 2500 mm.
Specifications
Year: 1993.
Voltage: 380 volts, 3-phase, 50 Hz.
Total power: 146 kW.
Floorspace required: length 30 meters x width 20 meters x height 6 meters.
Consisting Of

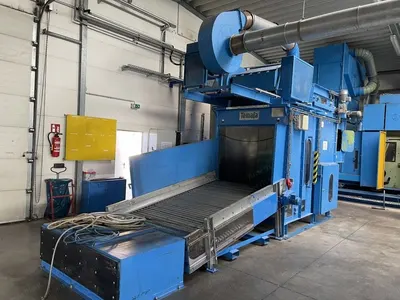

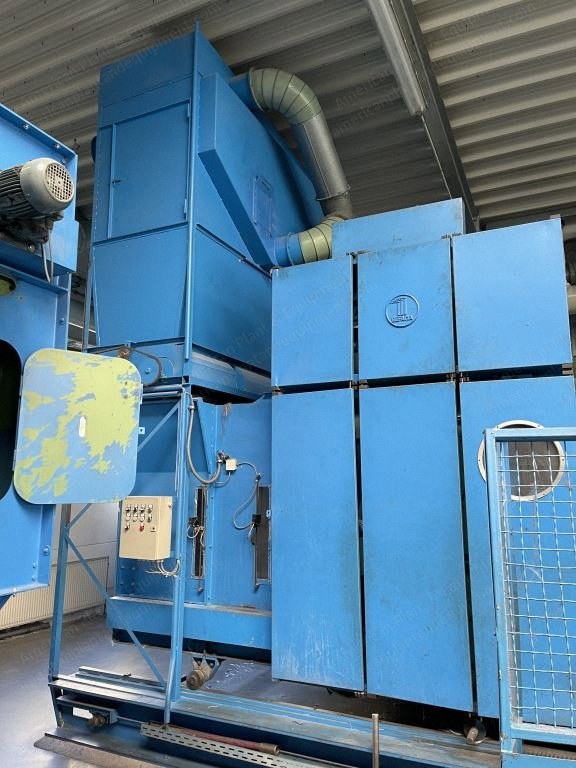

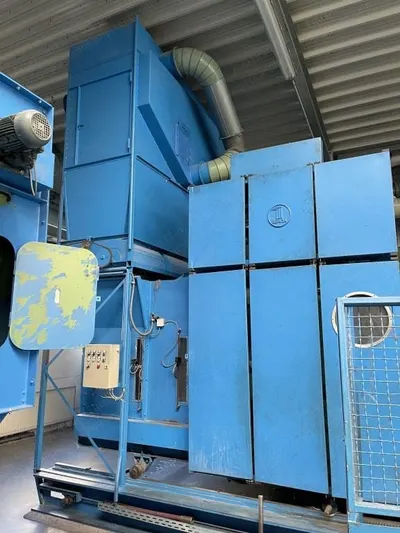

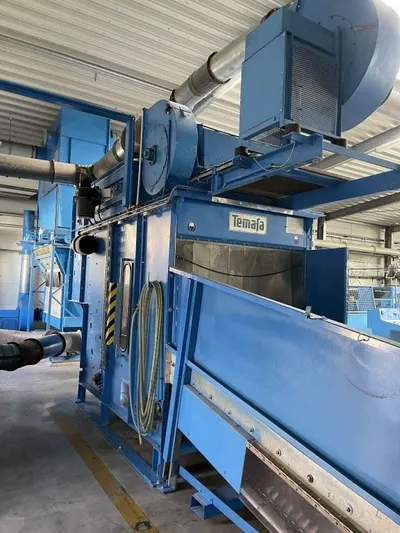

1 Temafa bale opener.

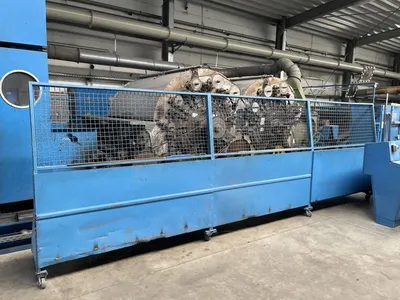

1 Befama carding machine (left):

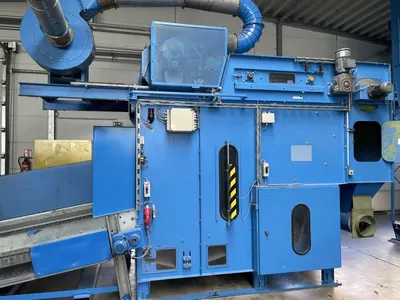

Befama feed with scales.

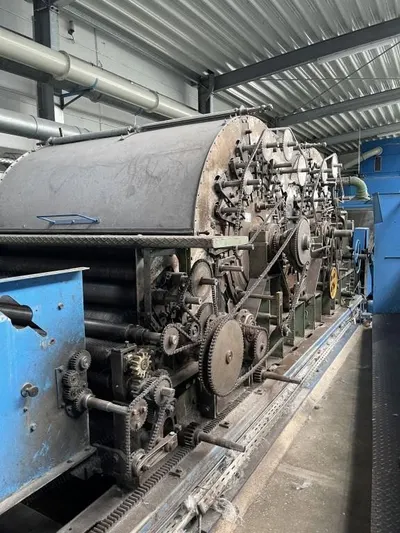

Befama carding machine, AB 2000 mm, type CU 641 consisting of licker-in, breast roller diameter 900 mm with 2 workers / turner, transfer roller master cylinder diameter 1500 mm with 4 workers / turner, further transfer roller, main cylinder diameter 1500 mm with 4 workers / turner, customer 1000 mm, hacker. Capacity 300 kg per hour.
2 Befama carding machines (right):
Befama feed with scales.
Befama carding machine, AB 2000 mm, type CPU 641 consisting of: lickerin, breast roller diameter 900 mm with 1 worker / turner, transfer roller, main cylinder diameter 1500 mm with 4 workers / turner, customer 1000 mm, chopper. Capacity 300 kg per hour.
1 Autefa compensating stacker, entrance 2500 mm, exit 2500 mm.
1 Dilo Di Loom OD-IIS25 needling machine, with CBF 25, working width 2500 mm, stroke 60 mm, up to 12,000 needles (2 x 6000 needles), 1500 strokes per minute.
1 Autefa winder with 4 incline squeezing knives and guillotine cross-section, maximum roll diameter 1500 mm.

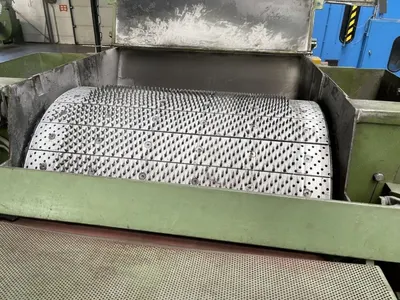

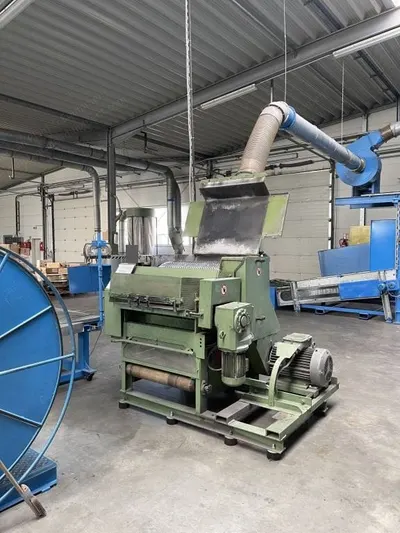

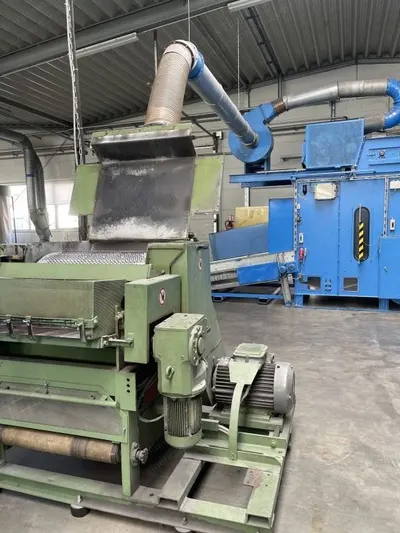

1 Autefa edge strip ripper AB 800 mm, aluminum boards with diagonal pins. Note: conversion from a former Autefa tearing machine. The edge trim is processed online, the fibers are fed back directly to the card.
A lot of spare parts, fans, new Graf trimmings and a roller applicator.
Graf Sets On The Two Cards
Tambour: VE 5015-12.
Transfer roller: VG 5030-10.
Doffer: VF 5040-16.
Turner: VE 5015-10.
Worker: VE 5015-8.
Willow: VD 50.
