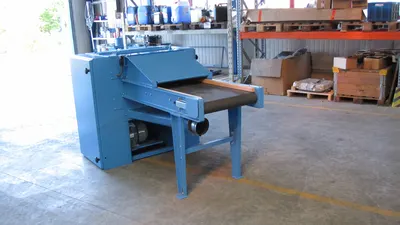

Reisser, Zweistufig, Fine Opener for Edge Trim, 1500mm Working Width, 1000 kg/h Capacity (New)

Reisser, Zweistufig, Fine Opener for Edge Trim, 1500mm Working Width, 1000 kg/h Capacity

Description

  1. Overview
    1. Edge trim opener for opening of needled or bonded edge trim, of natural or synthetic fibers.
    2. Tambour is equipped with wooden needle boards in very strong design.
    3. Working width: 1500 mm.
    4. Capacity: 1000 kg per hour.
  2. Composition
    1. Feed table.
    2. Pair of feed rollers with squeezing device.
    3. Tearing roller.
    4. Frame and housing.
  3. Specifications
    1. Feed table: 1000 mm wide, around 1300 mm long.
    2. Working width: 1000 mm.
    3. Speed opening roller: 2070 rpm.
    4. Voltage: 220 volts, single phase or 400 volts, three-phase.
    5. Catch box: without.
    6. Power installed: 7.87 kW.
    7. Feed rollers: adjustable to customer requirement.
    8. In case of order, the desired speed must be chosen to cooperate with thermobonding or card equipment plant. Max speed is 27 meters per minute.
    9. Voltage: 230 volts, single phase, or 400 volts, three-phase.
    10. Tube access: 250 mm.
    11. Installed power: 5.50 kW.
  4. Condition
    1. Feed rollers are covered with metallic card clothing to feed the edge trim with constant speed to the tearing roller.
    2. Feeding section is equipped with squeezing device to be able to feed a various range of difference thickness edge trims into the machine.

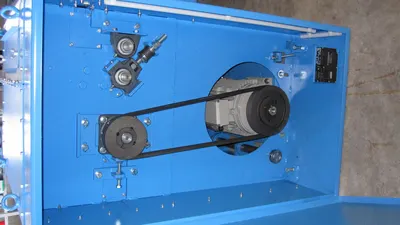

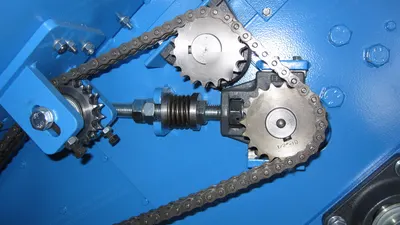

    3. Feed rollers are driven by helical gear motor and are infinitely variable to meet production requirements.
    4. The tearing roller, running at high velocity, is equipped with pins and is ac motor driven.
    5. Machinery housing can be opened while the machine is stopped to allow access for cleaning and maintenance work.
  5. Function
    1. Edge trim to be reclaimed is fed into the machine by conveyor belt into the pair of feed rollers.
    2. It is taken over and guided towards the underneath arranged tearing roller.
    3. Due to the high fiber draft that results in difference circumference speed of feed, and the pinned tearing roller, it is possible to reclaim edge trim into fibers.
    4. The reclaimed fiber material is conveyed towards the suction funnel by overpressure generated in the machine where they are transported pneumatically by fan back into the production cycle.
  6. Included
    1. Rag opener equipped with card wire feed roller and feed trough system.
    2. Opening roller equipped with sawtooth wire.
    3. Control panel for rag opener.
    4. Conveying fan.
