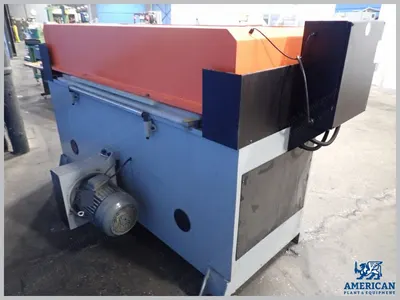

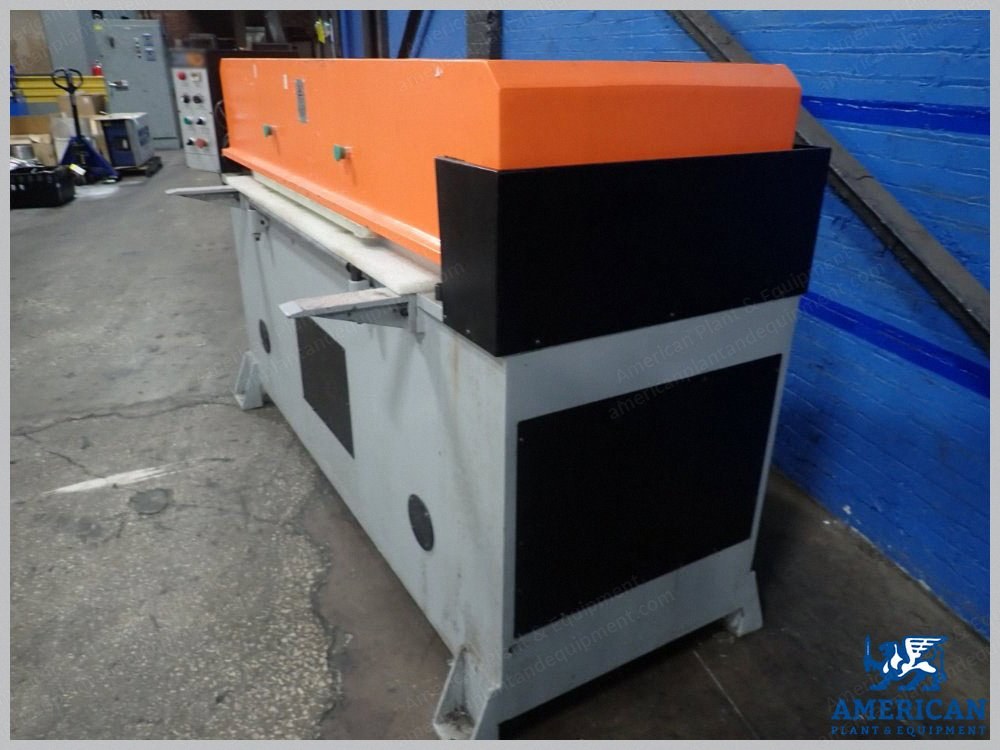

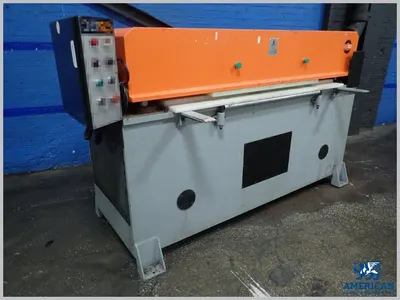

CJR Tech, Hydraulic Beam Press, 60 Ton Capacity, 63x31.5 inch Pressing Area, 6 HP

CJR Tech, Hydraulic Beam Press, 60 Ton Capacity, 63x31.5 inch Pressing Area, 6 HP

Description

  1. Overview
    1. Capacity: 60 tons
    2. Travel adjustment range: 5.0 in
    3. Range between the working tables: 2.0 in
    4. 4 posts
  2. Specifications
    1. Size of upper pressing board: 63.0 x 31.5 in
    2. Size of lower worktable: 63.0 x 32.0 in
    3. Motor power: 6 hp
    4. Power: 220 volts, 3-phase, 60 Hz
    5. Startup amps: 75
    6. Operating amps: 20
    7. 1680 rpm
    8. 5 foot power cord
    9. Weight: 3023.6
    10. Dimensions: 87 x 53 x 71 inches
    11. Lower worktable size: 63.0 x 32.0 inches
    12. Travel adjustment range: 5.0 inches
    13. Upper pressing board size: 63.0 x 31.5 inches
    14. Range between working tables: 2.0 inches
  3. Dimensions And Weight
    1. Overall dimensions: 87 x 53 x 71 in
    2. Net weight: 6666 lbs
  4. Condition And Included
    1. Hydraulic fluid (not included): ISO 68
