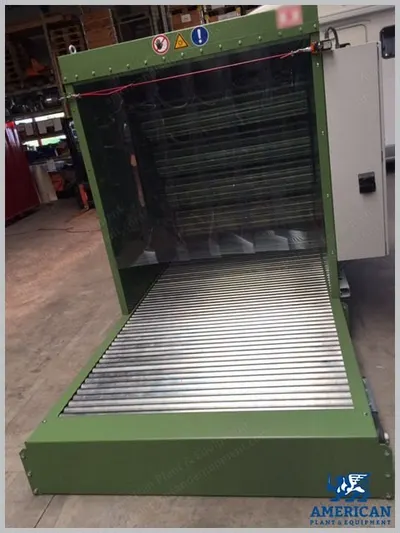

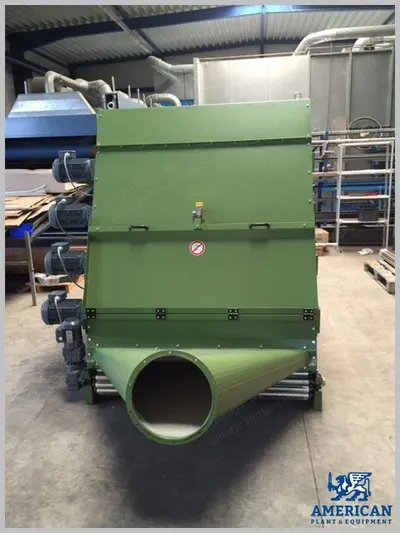

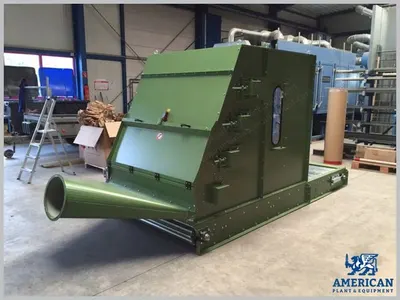

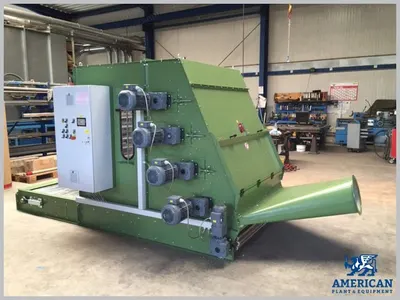

Description Overview Machine designed to open bales of cotton or polyester. Heavy duty steel construction. Working width: 1400 mm. Total height: approximately 2000 mm. Total kW: 12.37 kW. Power connection: voltage 415 volts / 60 or 50 Hz, 3 phase supply, neutral to one phase 230 volts, 60 or 50 Hz, or others. Specifications Bottom conveyor equipped with 4 bale breaking cylinders with pinned needle spires encased in thick steel c-profile. Pins are staggered 4 times for advanced opening degree. Each roller is driven by high-powered gear motor and horizontally attached. Distance of the opening rollers can be adjusted, influencing the opening degree and throughput quantity. Movable feed conveyor is equipped with steel plate construction. Galvanized rollers on both sides to prevent sideways movement of the transport table. Speed of the belt is adjustable by means of an inverter and timer. Opening rollers are operated by an inverter to achieve the right speed. Tambour is equipped with 12 needle boards with 7 rows of needles with 72 needles each, 4 times staggered, totaling 6048 needles. Tambour is fully covered with needle boards around it without any gap. Conveyor feed table length: 3500 mm in tubular steel construction. Conveyor feed table height: 320 mm. Feeder control: material feed is controlled by the set amperage of the opening rolls. Fiber suction system: at the rear of the machine via funnel. Condition and Safety Safety equipment: European standard according to CE. Included Control cabinet included.
