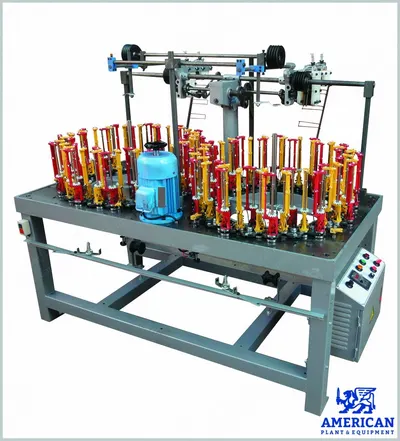

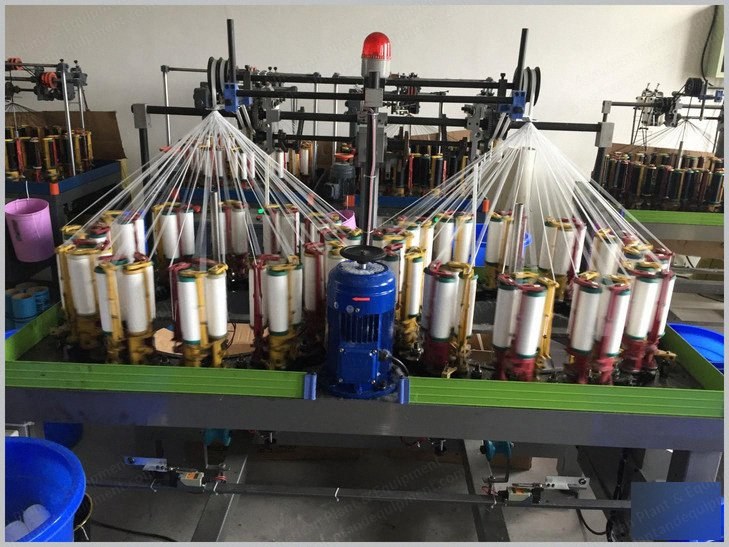

NovaStar, BE119, High Speed Braiding Machine, 48 Carriers, 2 Ribbons, 90mm Horngear (New)

NovaStar, BE119, High Speed Braiding Machine, 48 Carriers, 2 Ribbons, 90mm Horngear

Description

  1. Overview
    1. Machine designed to produce rope, shoelaces, elastic tape, pull tape, and similar products.
  2. Specifications
    1. Carriers per head: 48
    2. Ribbon number: 2
    3. Horn gear size: 90 mm
    4. Horn gear rpm: 300 rpm
    5. Carrier type: A
    6. A bobbin dimensions: diameter 47 mm x 142 mm
    7. Motor power: 1.5 hp (1.1 kW)
    8. Voltage: 220 volts, 3-phase, 60 or 50 Hz
    9. Machine dimensions: 1950 x 1200 x 1500 mm
    10. Voltage: 220V/380V, 3-phase, 50/60 Hz
