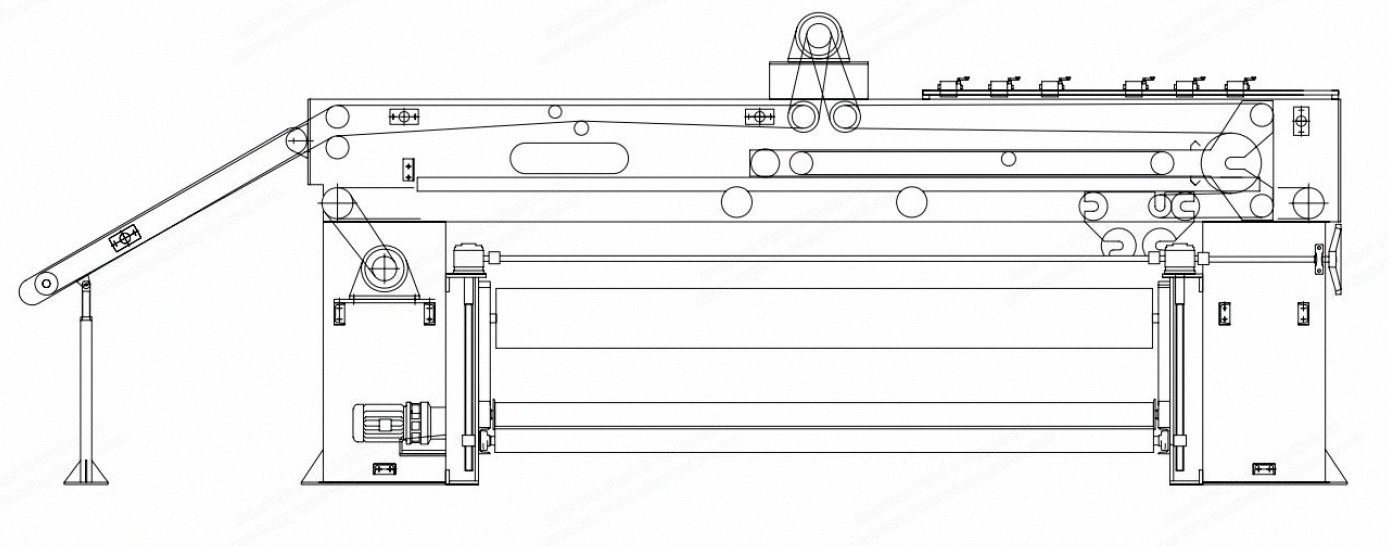

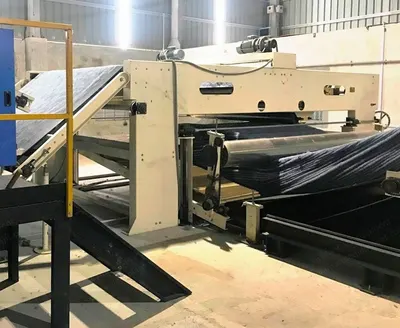

Diagonal curtain is a pattern curtain, the bottom curtain is an aluminum alloy curtain, and the rest are leather curtains
Each curtain drive roller is made of Ø108 mm seamless steel pipe, and the shaft head is strengthened
The feet of the frame are equipped with adjustable supports
Drive and Control
Laying reciprocating is controlled by servo motor, anti-collision switches are added at both ends
Synchronous belt transmission for reciprocating belt
The web guide roller of reciprocating trolley is made of stainless steel with diameter Ø200 mm, chain drive, bullet-shaped at both ends to prevent entanglement of the shaft head
Bottom curtain button jogs to adjust the height, and the upper and lower limit switches are installed
Bottom curtain equipped with large pressure roller
Installed Power
Diagonal curtain: 2.2 kW
Frequency reciprocation: 5.5 kW
Servo, bottom curtain: 2.2 kW
Frequency, bottom curtain lift: 0.75 kW x 2
