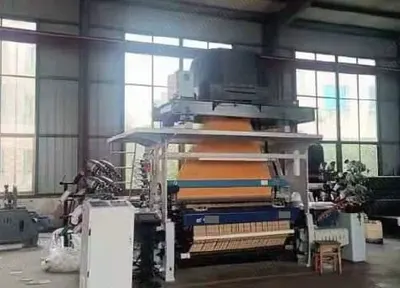

Description Overview Rapier loom Speed: 600 rpm maximum Working width: 1700 mm (machine full width 1900 mm) Repeat: 8 repeats for taffeta (1 repeat = 200 mm); 16 repeats for satin (1 repeat = 100 mm) Jacquard with 1300 hooks Number of cycle groups: 8 groups of plane machine (one group = 200 mm) Control System Microprocessor control with color touch screen display Self-diagnosis system Machine stops automatically when warp or weft is broken Stopping mode program can be adjusted Let Off and Coiling Let off device: electronic let off Coiling device: electronic control coiling system with drive Weft and Filling Weft density adjustment: electronic touch screen adjustment, 3–200 weft per centimeter, adjustable Weft selection system: stepper motor control and adjustment rotary electronic weft selection Filling finding system: automatic filling guide, program can be adjusted Lubrication and Dimensions Lubrication system: forced oil filter cycle Longitude axis diameter: 800 mm Winding diameter: 600 mm maximum
