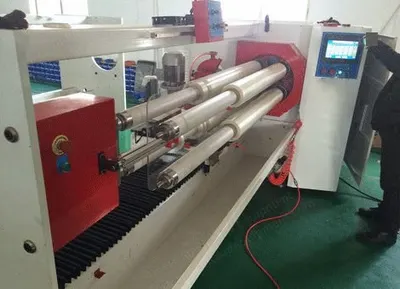

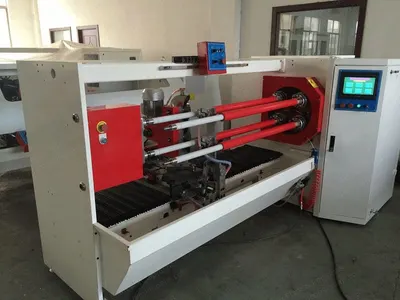

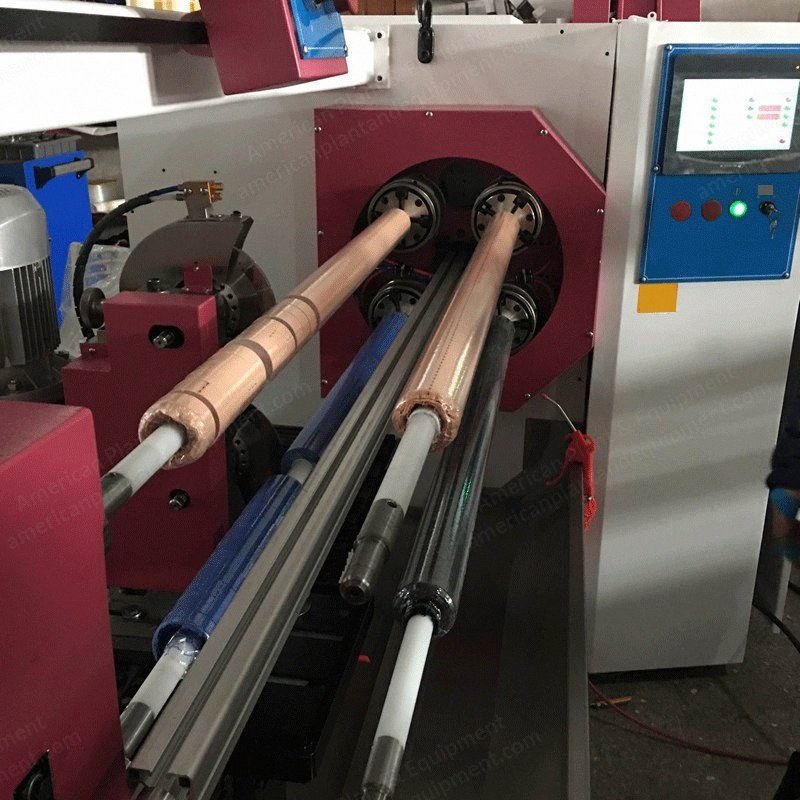

NovaStar, SR166, 1700mm Roller Width, 5.0 HP, 3140x1550x1450mm (New)

NovaStar, SR166, 1700mm Roller Width, 5.0 HP, 3140x1550x1450mm

Description

  1. Overview
    1. Suitable for various tapes such as PVC, masking, double sided, OPP packaging and foam tapes, etc.
  2. Standard Accessories
    1. Main motor: AC 5.0 HP inverter control, 1 set
    2. Width setting: servo motor driven, 1 set
    3. Cutter stand: ball spline – 2 pieces, ball screw – 1 piece
    4. Cooling system: automatic water supply, 1 set
    5. Shaft turret change: turret change over by air auto control, 1 set
    6. Cutting shaft: for paper core ID 1 inch, 4 pieces
    7. Shaft sleeve: PE tube 1 inch (spare), 10 pieces
    8. Circular blade: 2 mm x 1 inch ID x 180 mm OD (C-type), 2 pieces
    9. Knife angle adjustment: angle change by servo motor drive +/- 8 degree, 1 set
    10. Knife motor: 1 HP 1/10 turbo motor with inverter control, 1 set
    11. Cutter guard: connected type movable small plate, 1 set
    12. Shaft ending rack: automatic control, 1 set
    13. Cutting system: servo motor drive, 1 set
    14. Maintenance kit, tools and instructions, 1 set
  3. Electrical Section
    1. Control system: PLC 3 servo motor system, 1 set
    2. 20 memory sets for cutting width
    3. Automatic error detection system
    4. Display mode: touch panel screen
  4. Specifications
    1. Voltage: 220V 3-Phase 60Hz
    2. Capacity: Cutting width 2mm to 1700mm, Max cutting diameter 160mm
    3. Weight: 2100
    4. Dimensions: 3140x1550x1450mm
    5. Roller width: 1700mm
    6. Gross weight kg: 2300
