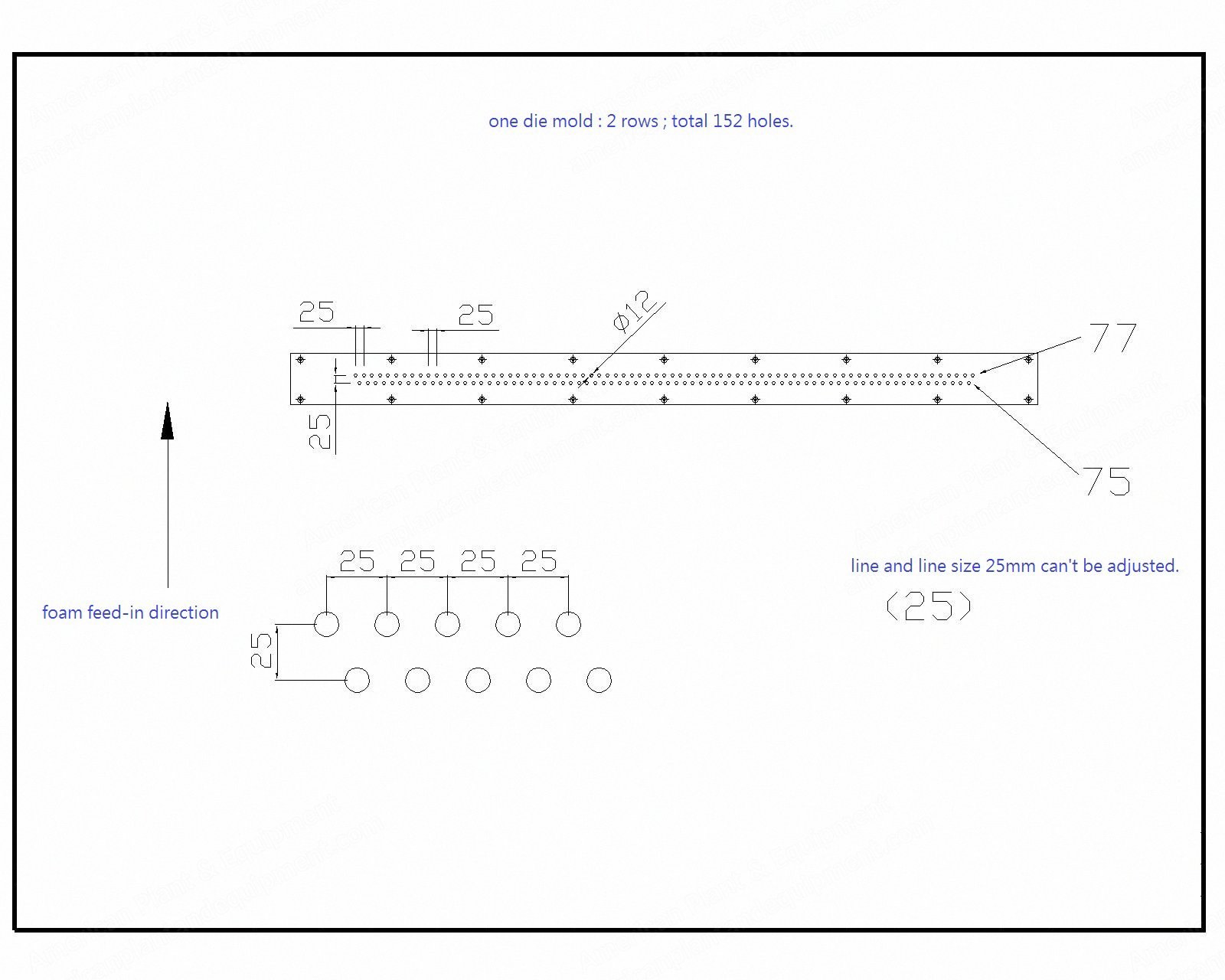

Description Overview Smallest hole diameter: about 10 mm (depends on foam type, hardness and thickness) Row to row punching distance can be preset PLC man machine interface monitor, 10” Specifications Working height maximum: 200 mm Working width maximum: 2100 mm Loading conveyor: 2200 mm x 1600 mm Unloading conveyor: 2200 mm x 1600 mm Motor: AC 15 hp x 1, 3 hp x 1, ½ hp x 2 Servo motor: 1 hp x 2 Voltage: 480 volts, 3-phase, 60 Hz Condition Requires 1 forty foot container to ship Included Options Customized die tool (2 rows), hole diameter 12 mm, hole quantity: 152 Customized die tool (2 rows), hole diameter 20 mm, hole quantity: 76
