NovaStar, PC243, Pillow Production Line, Capacity 200 kg/h, 6-Piece Line (New)

Name: NovaStar, PC243, Pillow Production Line, Capacity 200 kg/h, 6-Piece Line
Brand: NovaStar
SKU: J-4112

‹ Go Back Next Product ›

Description

Overview
1. System capacity: 200 kg per hour
2. Composed of six main items plus all connecting hoses and pipes
Item 001: Conveyor
1. Feed hole width: 550 mm
Item 002: Fiber Opening Machine
1. Capacity: 200 kg per hour
2. Conveyor belt width: 550 mm
3. Motor: 4 kW + 0.75 kW
4. Weight: 460 kg
Item 003: Feeder
1. Power: 2.2 kW
2. Weight: 50 kg
3. Dimensions: 760 x 600 x 780 mm
Item 004: Storage Mixer
1. Tank width: 1400 mm
2. Power: 2.2 kW
3. Capacity: 2 cubic meters
4. Weight: 120 kg
5. Dimensions: 1400 x 1300 x 1660 mm

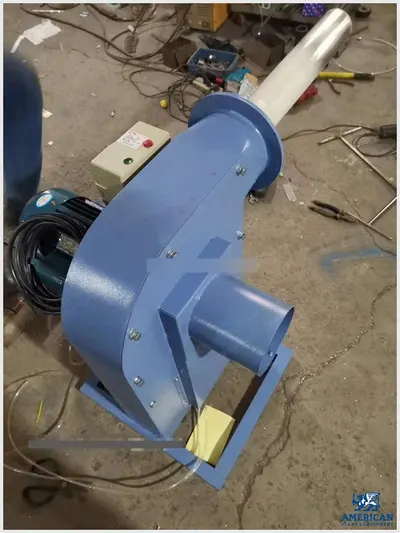

Item 005: Pillow Filling Fan
1. Capacity: 180 to 200 kg per hour
2. Dimensions: 1050 x 700 x 1000 mm
3. Motor: 2.2 kW
4. Weight: 120 kg
Item 006: Pillow Vacuum Compress Packing Machine
1. Sealing area size: 800 x 800 mm
2. Weight: 260 kg
3. Dimensions: 1150 x 1100 x 1950 mm
Included Accessories
1. All connecting hoses and pipes
Specifications
1. Weight: 1010

Additional Specifications

Specifications

Capacity

200 kg per hour

Included

['Conveyor (Feed hole width: 550mm)', 'Fiber Opening Machine (Capacity: 200 kg/h, Motor: 4 kW + 0.75 kW, Weight: 460 kg)', 'Feeder (Power: 2.2 kW, Weight: 50 kg, Dimensions: 760x600x780mm)', 'Storage Mixer (Tank width: 1400mm, Power: 2.2 kW, Capacity: 2 cubic meters, Weight: 120 kg, Dimensions: 1400x1300x1660mm)', 'Pillow Filling Fan (Capacity: 180 to 200 kg/h, Motor: 2.2 kW, Weight: 120 kg, Dimensions: 1050x700x1000mm)', 'Pillow Vacuum Compress Packing Machine (Sealing area: 800x800mm, Weight: 260 kg, Dimensions: 1150x1100x1950mm)']

Dimensions

Weight	1,010 kg
