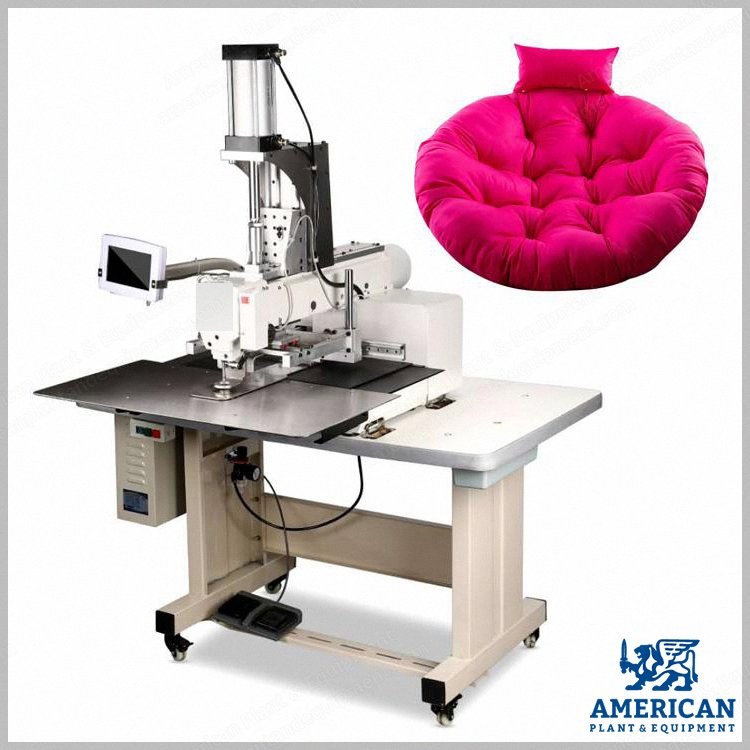

NovaStar, PW110, Maximum Head Lift 250mm, Working Area 400mm, Sewing Speed 2500 RPM (New)

NovaStar, PW110, Maximum Head Lift 250mm, Working Area 400mm, Sewing Speed 2500 RPM

Description

  1. Overview
    1. cushion tufting machine to sew fixed-point circular tufts on thick cushion materials such as sofa cushions, recliner cushions, car seat cushions, pillows, etc.
  2. Specifications
    1. Maximum head Lift: 250 mm
    2. machine inside distance: 400 mm
    3. Working area maximum size: 400 mm
    4. Sewing speed: 200 to 2500 rpm
    5. Sewing range: 100 mm x 100 mm
    6. Feeding method: intermitted feeding, stepping motor, 2-axis drive
    7. Stitch length: 0.1 to 12.7 mm
    8. Number of stitches: 8000 stitches per pattern
    9. Presser foot form: pneumatic
    10. Pattern storage, internal memory: 999 patterns, stored on u-disk
    11. Shuttle bed: 2 times the shuttle
    12. Needle: DP17
    13. Spindle motor: direct drive servo motor, 750 watts
    14. Air pressure: 4.5 MPa to 8 MPa
    15. Power: 220 volts
    16. Dimensions: 1200 x 1150 x 1600 mm
    17. Net weight: 260 kg
