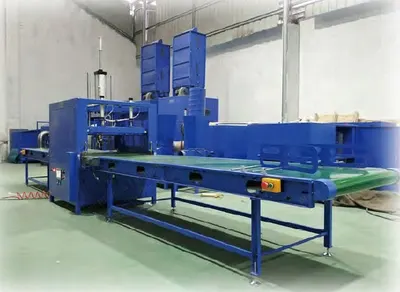

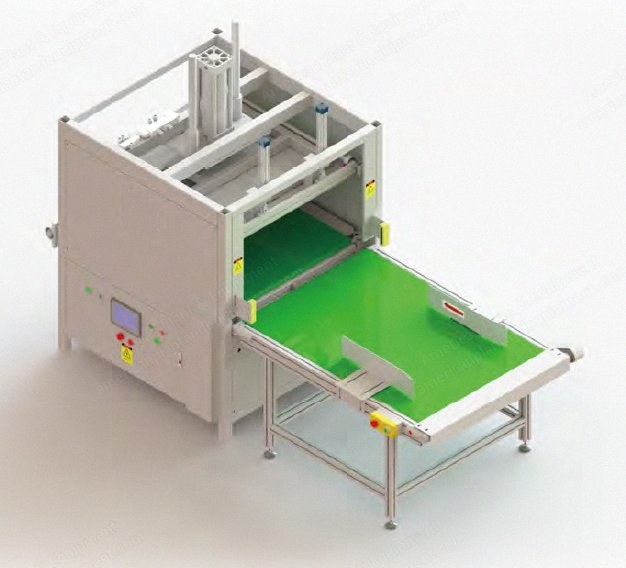

NovaStar, PQ124, Automatic Pillow Vacuum Packing Machine, 350 pcs/h, 5 Ton Compression, 1000mm Conveyor (New)

NovaStar, PQ124, Automatic Pillow Vacuum Packing Machine, 350 pcs/h, 5 Ton Compression, 1000mm Conveyor

Description

  1. Overview
    1. Automatic pillow packing machine
    2. Automatic feeding, compression, sealing and discharging
    3. Circulating water cooling to ensure quality of each seal
    4. Plc programmed control system with display screen for setting parameters
    5. Requires 1 operator
  2. Specifications
    1. Capacity: 6 to 8 pieces per minute
    2. Minimum pillow size: 400 mm wide x 500 mm long x 120 mm tall
    3. Maximum pillow size: 900 mm wide x 1200 mm long x 250 mm tall
    4. Conveyor belt width before entrance: 1000 mm
    5. Sealing bar width: 5 mm
    6. Platen (presser plate) size: 1400 mm long x 1000 mm wide
    7. Compression stroke: 350 mm
    8. Maximum pressure: 5 tons (oil hydraulic system)
    9. Air pressure: 0.8 Mpa
    10. Power: 7.5 kW
    11. Capacity: 300-350 pcs/h (6 to 8 pieces per minute)
