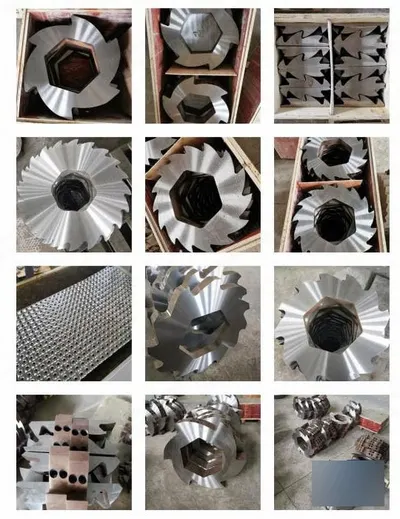

Description Overview Capacity: 240 license plates per hour (4 pieces per minute) Working width of the shredding chamber: 400 mm x 450 mm (shredder chamber size) Chamber dimensions: length 450 mm x width 500 mm Main shaft speed: 17 rpm Torque force: 2,176 Nm Specifications Knives: 26 pieces, diameter 180 mm x 15 mm Spacers: 26 pieces, diameter 100 mm x 15 mm Shaft: 2 pieces, diameter 60 mm x 450 mm Reducer: 1 set, Mingmei brand Gear motor: Mingmei brand Motor power: 4 kW Voltage: 220 volts Blade material: 9CrMo (HRC 52-55 wear-resistant, hardened) Shaft material: 40Cr Main structure: No. 45 steel Electric components: Schneider Electric Control panel: Delixi brand Dimensions And Weight Dimensions: length 1200 mm x height 1000 mm x width 1300 mm Weight: 550 kg Electrical Notes Amps draw is 70 amp Use time delay fuse with gauge wire There is a control that protects the motor of over amperage Therefore, a 60 amp time delay fuse is enough and 8 gauge wire is sufficient
