NovaStar, PC249, Microfiber High-Precision Pillow Filling Machine, 250 to 280kg/hr Opener Capacity, 2 Filling Nozzles, 220V (New)

NovaStar, PC249, Microfiber High-Precision Pillow Filling Machine, 250 to 280kg/hr Opener Capacity, 2 Filling Nozzles, 220V

Description

  1. Item 001 (V-1996) - Microfiber Opener, Hopper, Transfer Fan

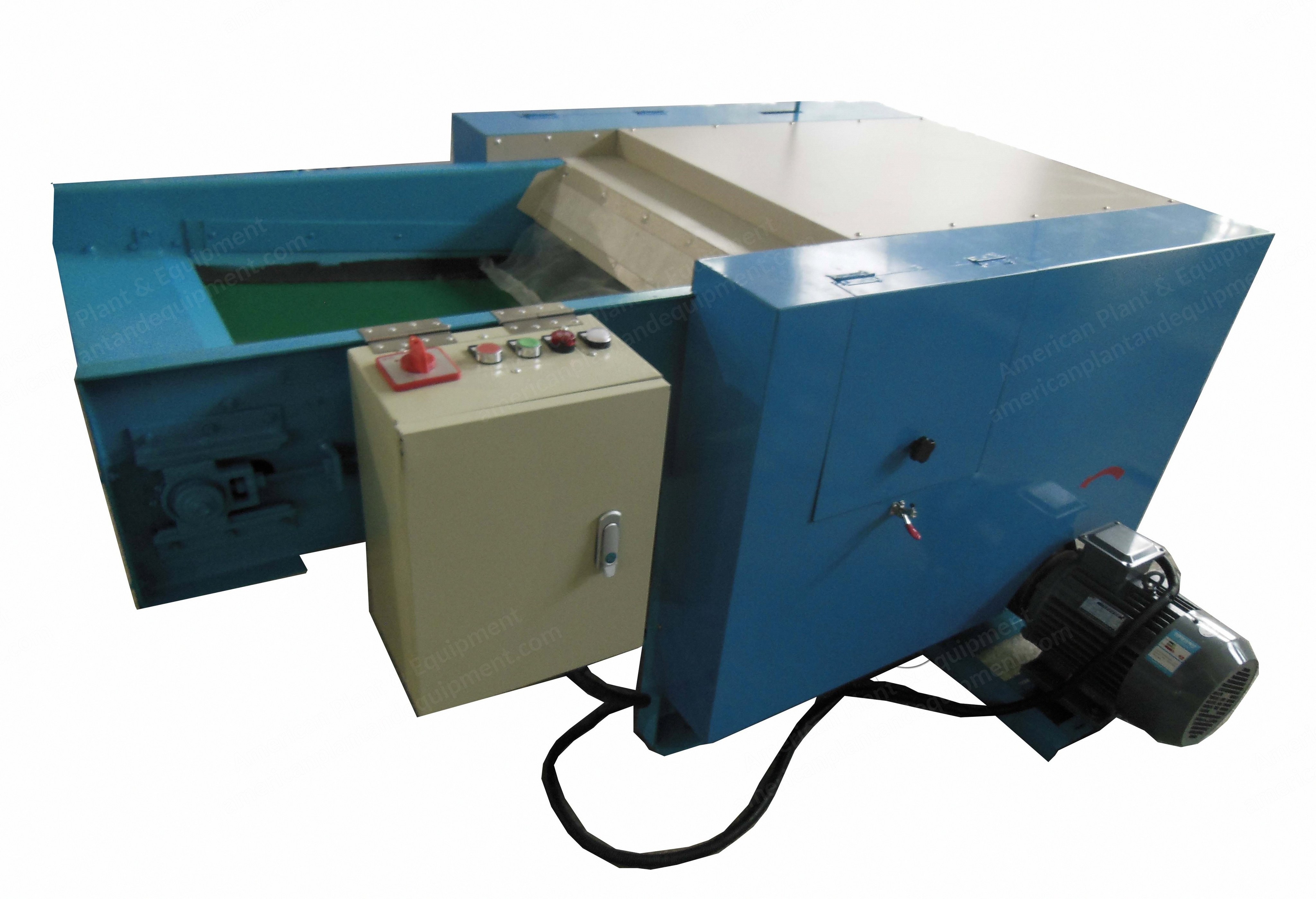

    1. Microfiber Opener
      1. Dimensions (LxWxH): 4530mm long x 1470mm wide x 2370mm tall.
      2. Total power: 11.8kw.
      3. Total net weight: 1500kg.
      4. Capacity: 250 to 280kg per hour.
      5. Chute feed.
      6. Useful width: 900mm.

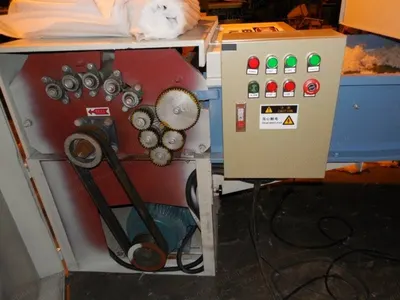

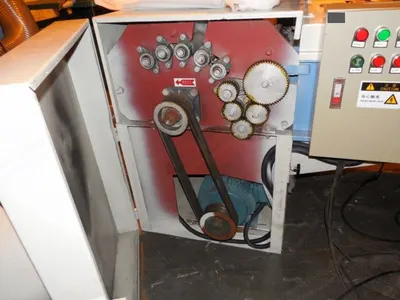

    2. Opening Drum 900mm Working Width
      1. 490mm main roll diameter.
      2. 7.5kw motor.
      3. 15 points per square centimeter.
      4. 0.75kw motor on feed apron.
      5. Two feed rolls.
      6. Nine working rolls.

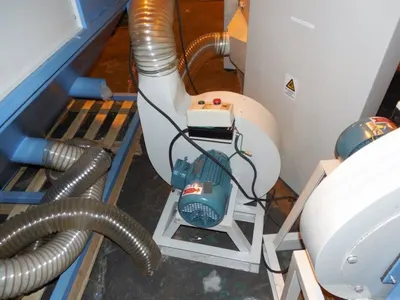

    3. Feed Suction (Transfer) Fan
      1. Dimensions (LxWxH): 1085mm x 700mm x 1020mm.
      2. Power: 4kw.
      3. Net weight: 130kg.
      4. Pan feed (alternatively, conveyor feed).
  2. Item 002 (AJ-1131) - Automatic Feather And Down Pillow Filling Machine, Up To 200 Grams Per Fill - New
    1. Plc controlled weighing system dispenses correct amounts of material automatically.
    2. Main silo capacity: 10 to 20 kgs.
    3. Weigh scales capacity: 60 to 80 grams.
    4. Weigh scale accuracy: approximately 0.2 grams.
    5. Grams per fill: 0.2 to 200 grams (it takes about 10 seconds to reload the next 200 grams after filling).
    6. Filling cycle time: 1 to 2 seconds.
    7. Maximum 5 fills required to meet weight for 1 kg (1000 gram) pillow.
    8. Filling nozzles: 2.
    9. With automatic piece-counting.
    10. Voltage: 220 volts, 60 or 50 hz (as per customer).
    11. Power: 2.5 kw.
    12. Machine dimensions: 1650 x 900 x 2350mm.
    13. Weigh scale dimensions: 1200 x 600 x 1000mm.
    14. Operator’s platform dimensions: 850 x 450 x 1000mm.
    15. Machine weight: 502 kgs.
    16. Main motor weight: 468 kgs.
    17. Requires air compressor with these specifications:
      1. Working pressure: 0.6 to 0.8 mpa.
      2. Air compressor power requirement: 11 kw.
    18. Packed dimensions and weight:
      1. Motor: 1680 x 1010 x 2150mm, weight 468 kg.
      2. Weighing: 1230 x 1260 x 1050mm, weight 104 kg.
      3. Motor and weighing stations will be packed separately but weighing stations will be packed together.
    19. Hs code: 8479899990.
  3. Specifications
    1. Weight: 2002
