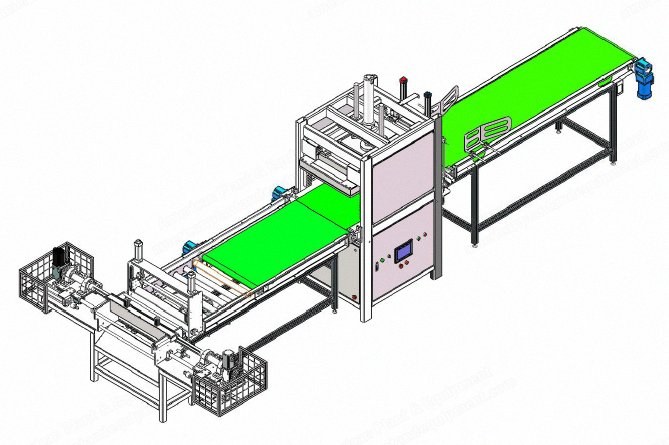

NovaStar, PQ126, Pillow Vacuum Press & Roll Machine, 4 to 6 pcs/min, 11.2 kW, 220V (New)

NovaStar, PQ126, Pillow Vacuum Press & Roll Machine, 4 to 6 pcs/min, 11.2 kW, 220V

Description

  1. Overview
    1. Pillow vacuum press and roll packing machine
  2. Specifications
    1. Maximum pillow dimensions for vacuum pressing: 900 mm wide x 1200 mm long x 350 mm high
    2. Maximum pillow dimensions for roll packing: 800 mm wide x 1200 mm long x 350 mm
    3. Capacity: 4 to 6 pieces per minute
    4. Maximum pressure (hydraulic): 5000 kg (pressure can be adjusted)
    5. Power: 11.2 kW
    6. Voltage: 220 volts, 3-phase, 60 Hz
    7. Compression stroke: 350 mm (can be adjusted)
    8. Pressure: 0.4 to 0.8 MPa
