Temafa, Thibeau, Fehrer, Fleissner & Technoplants Airlay/Thermobond Lines, 2400mm, 2000 lbs/hr, 150-1300 GSM

Temafa, Thibeau, Fehrer, Fleissner & Technoplants Airlay/Thermobond Lines, 2400mm, 2000 lbs/hr, 150-1300 GSM

Description

  1. Overview
    1. Opening, carding, heatset, winding or board cutting, wrapping
    2. Maximum width: 2400 mm
    3. Approximately 2000 lbs maximum per hour per line and 25 ypm (product dependent)
    4. Line 1: 2006 model with board cutting
    5. Line 2: 2007 model with rolls only
    6. Fibers typical: PES, low melt PES, PP, modified acrylic, Visil, Kenaf, Panox (and blends)
    7. 150 to 1300 gsm typical
    8. 2 to 100 denier typical
    9. 10 mm to 100 mm thickness typical (200 mm maximum)
  2. Line 1
    1. Temafa mix master / flat belt and incline spike apron, 5000 lbs capacity
    2. Temafa heavy particle separator with fan
    3. Temafa fine opener, 1600 mm
    4. Mesutronic metal detector with drop bag
    5. Temafa reserve with condenser

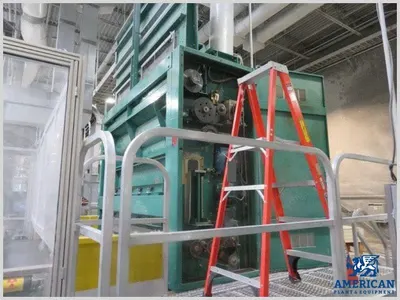

    6. Thibeau TMS/TCF chute feed, 2500 mm width

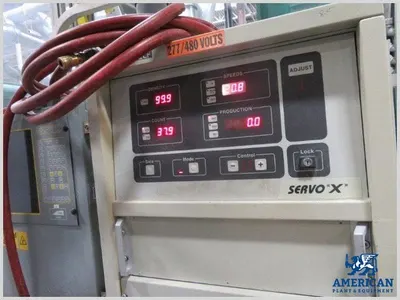

    7. Andritz Servo X weight control

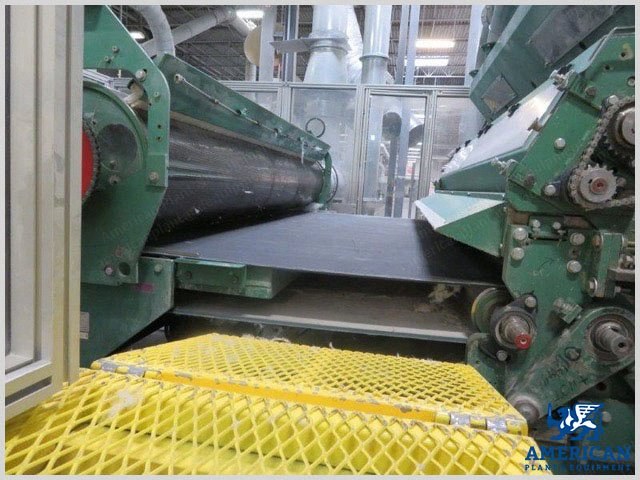

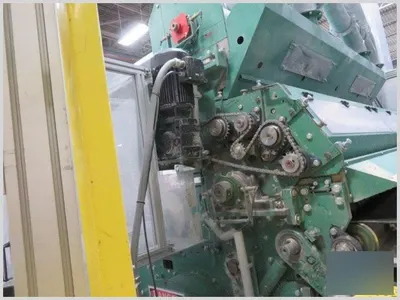

    8. Fehrer V21 / K12 airlaid card, 2400 mm

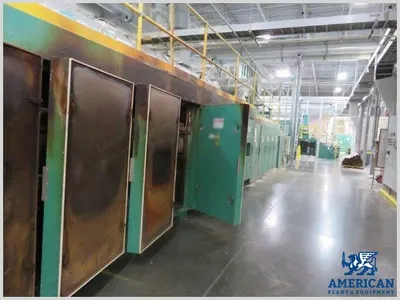

    9. Fleissner Vario Air TV/Z24 through air oven: 4 zone heat section, 3 zone cooling, double Teflon belt top and bottom
    10. Technoplants motorized accumulator, type AC.26.MB, 100 yard capacity

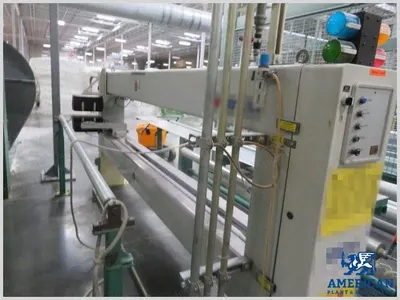

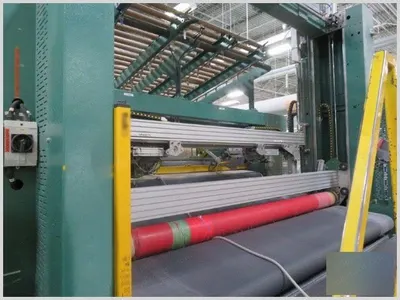

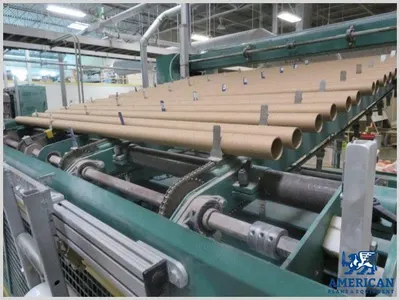

    11. Technoplants auto compression winder: low tension accumulator, working width 2600 mm, 3 crush cut slitters with trim grinders, cross cutter, automatic tube loading and doffing, 1500 mm maximum roll diameter
  3. Line 2
    1. Temafa mix master / flat belt and incline spike apron, 5000 lbs capacity
    2. Temafa heavy particle separator
    3. Temafa fine opener, 1600 mm with fan
    4. Mesutronic metal detector with drop bag
    5. Temafa reserve with condenser and fan
    6. Thibeau TMS/TCF chute feed, 2500 mm width
    7. Andritz Servo X weight control
    8. Fehrer V21 / K12 airlaid card, 2400 mm
    9. Fleissner Vario Air TV/Z24 through air oven: 4 zone heat section, 3 zone cooling, double Teflon belt top and bottom
    10. Technoplants motorized accumulator, type AC.26.MB, 150 yard capacity
    11. Technoplants auto compression winder: low tension accumulator, working width 2600 mm, 3 crush cut slitters with trim grinders, cross cutter, automatic tube loading and doffing, 1500 mm maximum roll diameter
    12. Roll wrapping station: manual bagging (built in house)
    13. Roach conveyor system / 4 dump stations
