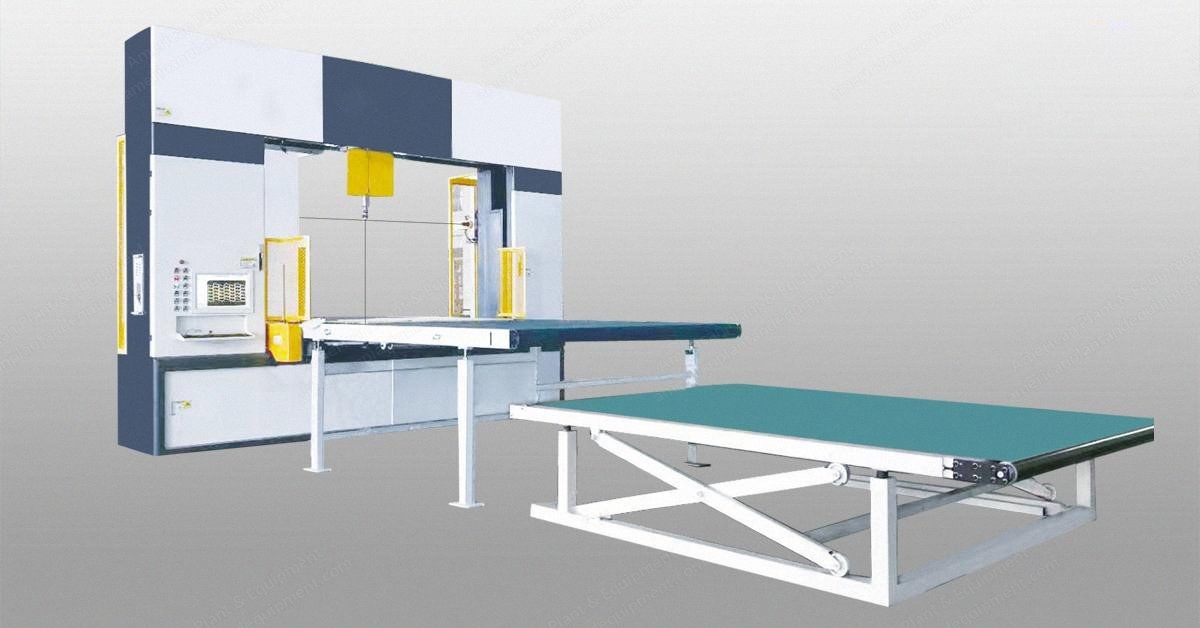

NovaStar, FN255, 3000x2300x1200mm Max Bun Size, CNC Continuous Vertical & Oscillating Horizontal Blades Foam Cutting Machine (New)

Name: NovaStar, FN255, 3000x2300x1200mm Max Bun Size, CNC Continuous Vertical & Oscillating Horizontal Blades Foam Cutting Machine
Brand: NovaStar
SKU: J-4348

‹ Go Back Next Product ›

Description

Overview
1. Maximum bun length: 3000 mm
2. Maximum bun width: 2300 mm
3. Maximum bun height: 1200 mm
4. Cut precision: +/- 1 mm
5. Minimum cutting radius: 5 mm
6. Hs code: 8477800000
Cutting Specifications
1. Cut speed: 0 to 60 meters per minute (continuous vertical blade)
2. Cut speed: 0 to 10 meters per minute (oscillating horizontal blade)
3. Vertical blade size: length 14000 x width 3.5 x 0.6 mm
4. Horizontal blade size: length 2510 x width 3 x 0.6 mm
Operating System and Controls
1. Operating system: industrial pc with windows 7
2. Blade break protection system
3. Self diagnostics system
Power and Air Requirements
1. Voltage: 220/380/415 volts, 60 or 50 hz, 3-phase
2. Total power: 13 kw
3. Compressed air: 6 bar
Dimensions and Weight
1. External dimensions: length 6700 x width 5300 x height 3300 mm
2. Total weight: 5200 kg

Additional Specifications

HS code	8477800000

Specifications

Capacity	Max Bun Size: 3000x2300x1200mm
Cut Precision	+/- 1mm

Performance

Cut Speed Horizontal	0-10 m/min
Cut Speed Vertical	0-60 m/min

Dimensions

Dimensions	6700x5300x3300mm
Height	3,300 mm
Length	6,700 mm
Minimum Cutting Radius	5 mm
Weight	5,200 kg
Width	5,300 mm

Power & Electrical

Total power	13 kW
Voltage	220 V
