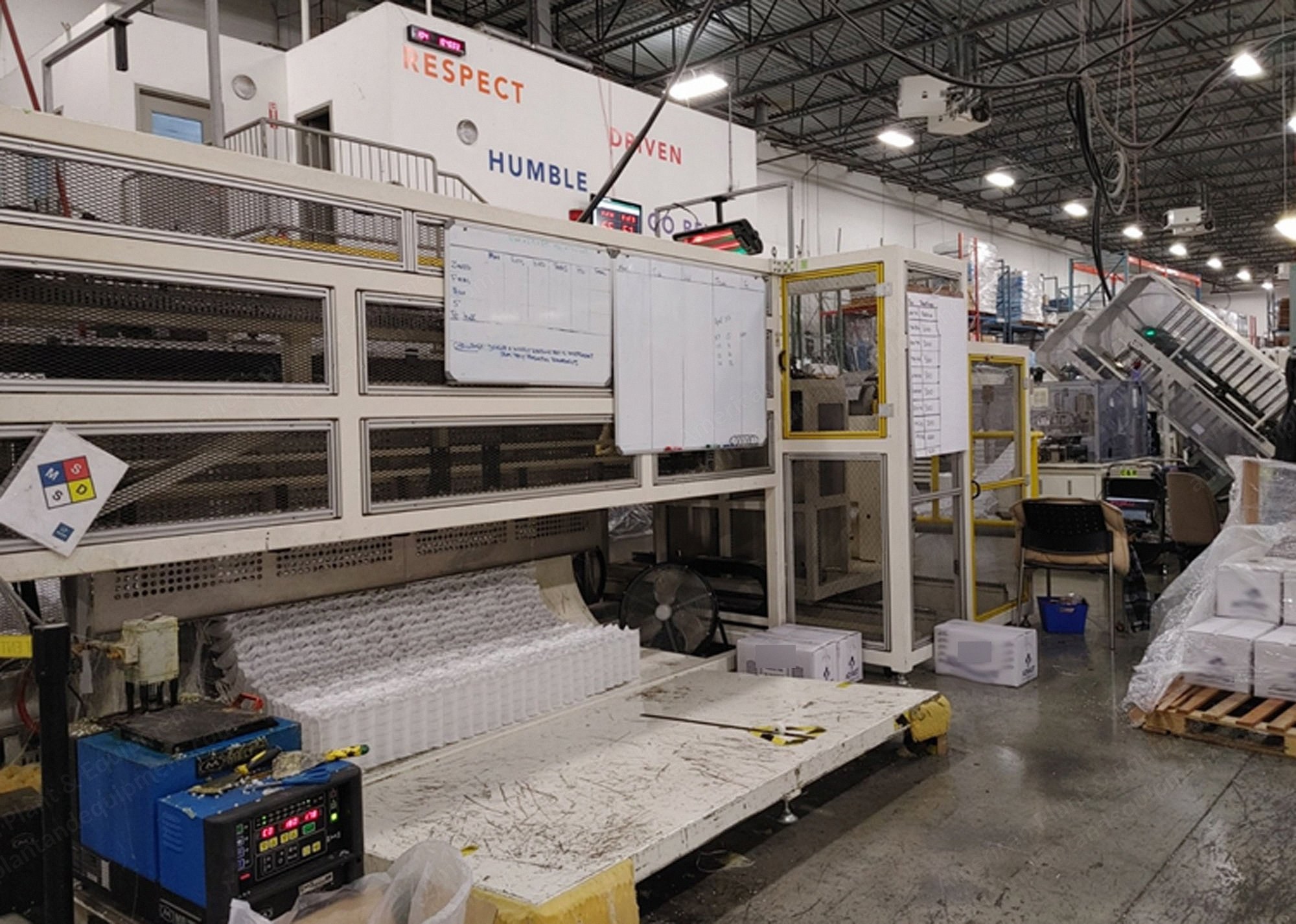

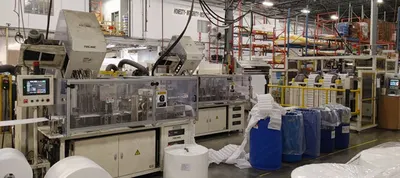

Matsushita Tecmic, Pocket Coil Plant, 2011, 5000 to 6000 Coils/Hr, 2 Coilers, 1 Assembler

Matsushita Tecmic, Pocket Coil Plant, 2011, 5000 to 6000 Coils/Hr, 2 Coilers, 1 Assembler Sold

Description

  1. Overview
    1. Make: Matsushita Tecmic
    2. Year: 2011
    3. Total capacity: 5000 to 6000 coils per hour (each coiler makes 3000 coils per hour)

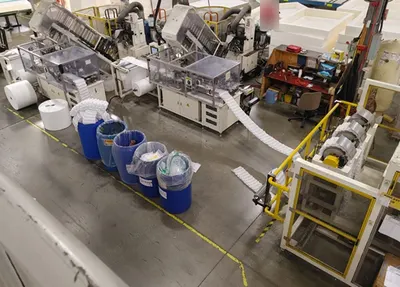

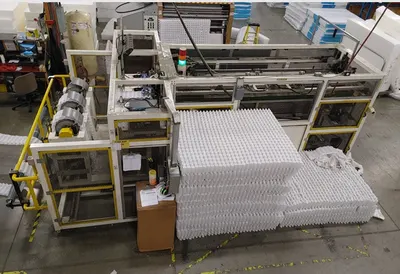

    4. Configuration: 2 coilers feeding 1 assembler
    5. Status: Currently running, available mid-November 2022
  2. Coilers

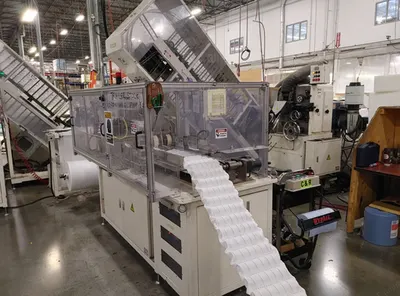

    1. Quantity: 2
    2. Model: CM-60

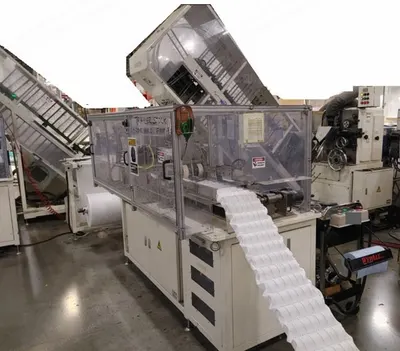

    3. Each coiler produces coils with wire turn table feed
    4. Each turntable capacity: 1500 lbs
    5. One transformer included for each machine
    6. Floorspace: 16 ft x 15 ft (4800 mm x 4500 mm)

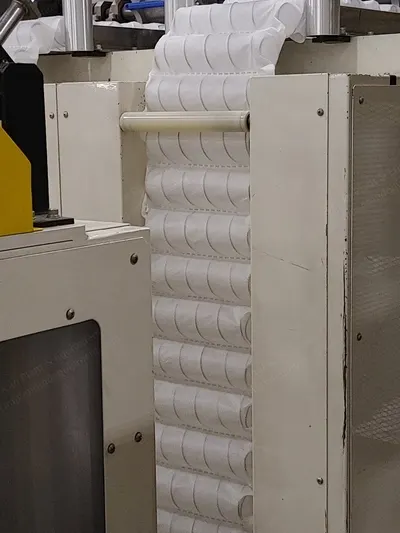

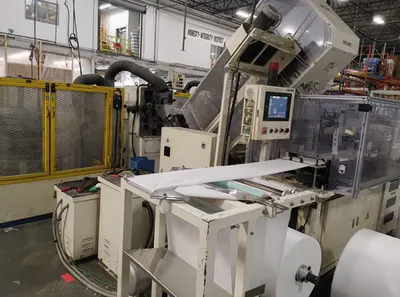

  3. Pocketers
    1. Quantity: 2
    2. Model: PKT-200HK3
    3. Attached to the coilers
    4. One transformer included for each machine

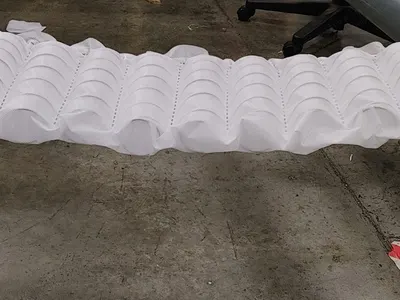

  4. Coil Specifications

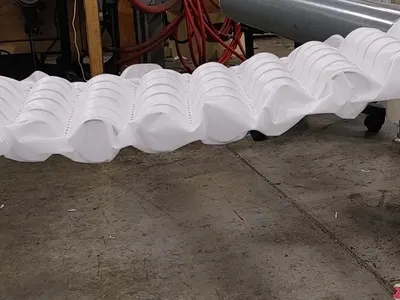

    1. Producing 5 and 9 inch tall coils (127 mm and 229 mm)
    2. Coil diameter: 56 mm

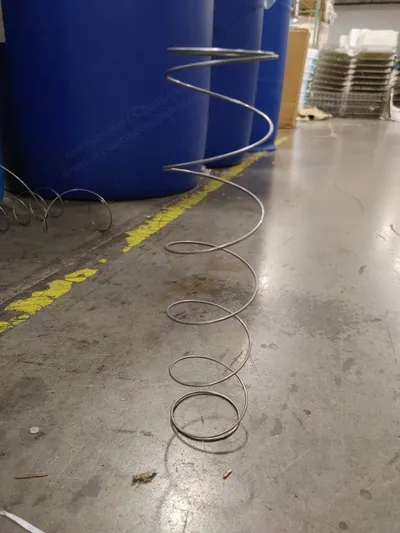

    3. Coil shape: barrel shape; ends are a little smaller than the center coil; the center of the coil measures 56 mm
  5. Hot Melt System
    1. Hot melt tank is included, attached to the assembler
    2. Brand: Valco Melton
  6. Roll Packing Machine
    1. Quantity: 1
    2. Make: Amelco
    3. Model: RL2000A
    4. Can be sold separately
    5. Floorspace: 12 ft x 7 ft (3600 mm x 2100 mm)
  7. Electrical Specifications
    1. Voltage: 480 volts, 3-phase
    2. Currently connected to a 600 volt supply with a transformer downstepping to 480 volts, 3-phase, to run entire setup
    3. Two control boxes: one box at 480 volts with 80 amps controls the assembler and one pocket coiling unit; one box at 480 volts with 60 amps controls the second pocket coiling unit. These are not included.
    4. No transformers included except the ones attached to each coiler/pocket coil system
  8. Total Required Floorspace

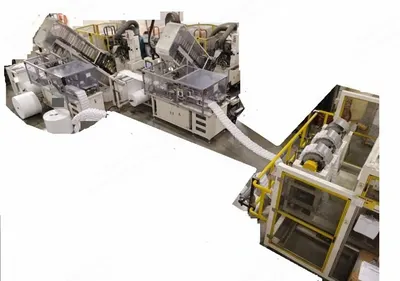

    1. 53 ft x 23 ft for two coilers, turntable, pocket coil machines and assembler (15,900 mm x 6900 mm)
