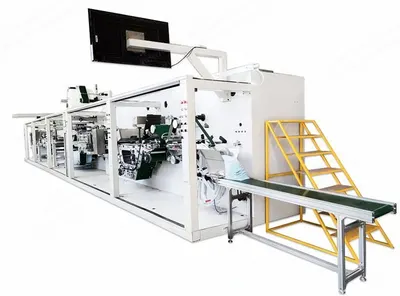

If the size of the finished product is 600 x 600 mm, the machine running speed is 200 pads per minute (8 hour output is 96,000 pieces)
Machine dimensions: 16000 x 2200 x 2600 mm (length x width x height)
Power supply: 480 volts, 60 Hz (or as per customer)

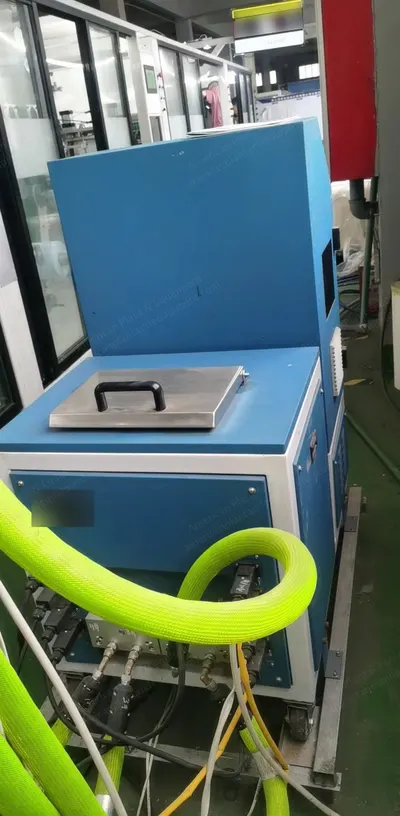

Total power: about 80 kW (not including glue)
Yield: 98% or greater (excluding errors due to glue machine, material change and joints caused by defective goods)

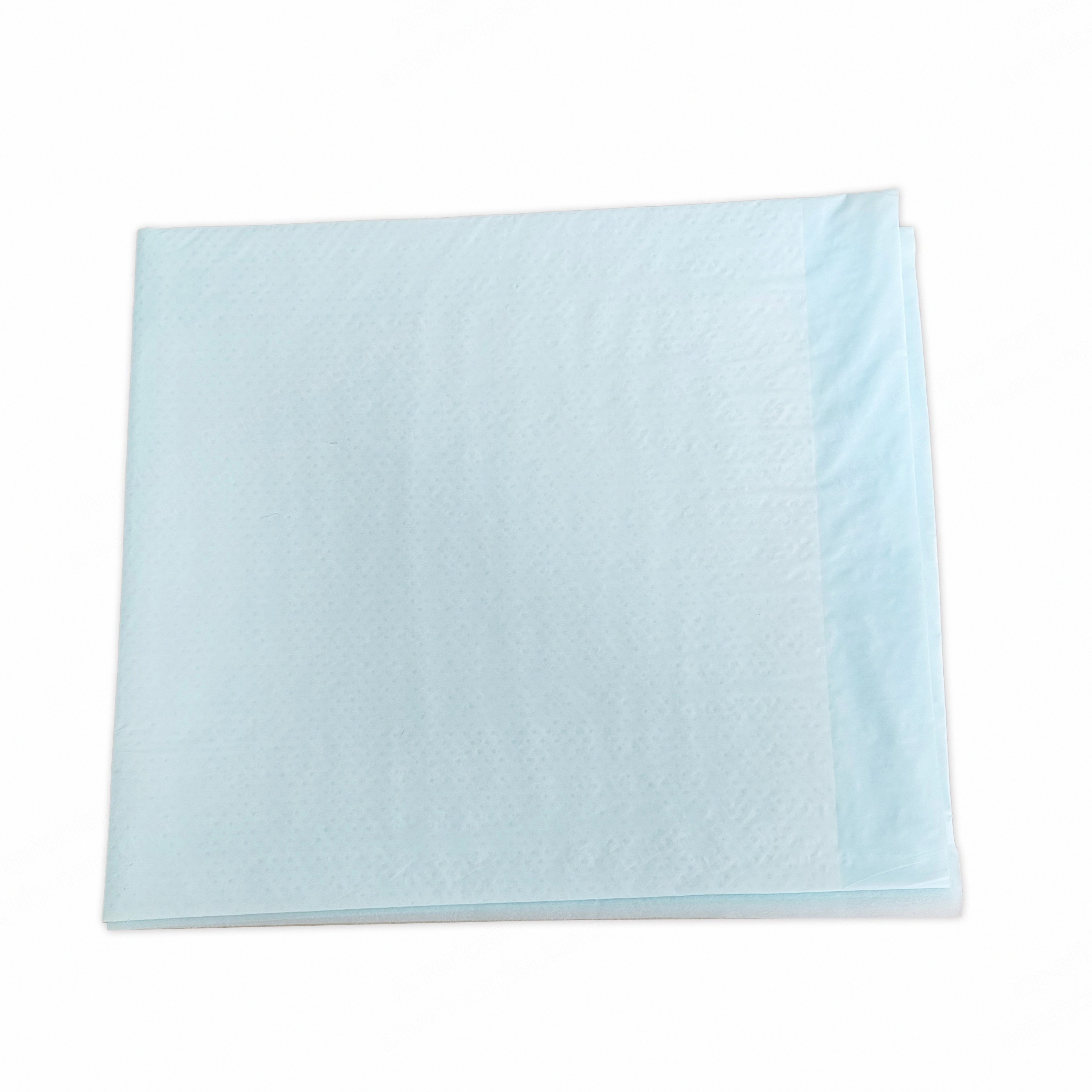

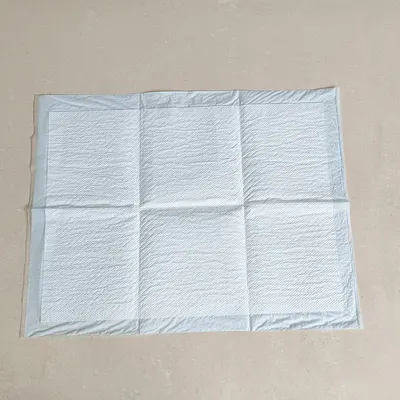

Raw Material Layers And Composition
There are 3 layers of raw materials in total. They are pe film, absorbent layer, hydrophilic nonwoven fabric. The absorbent layer is composed of two layers of tissue with sap and fluff between them.
The middle absorbent layer is a semi-finished product. Wood pulp paper and sap are pre-mixed and sandwiched between the upper and lower tissue papers.
Percentage of sap: 20 to 25%
Percentage of wood pulp paper: 45 to 60%
Raw material specifications: air-laid paper/blotting paper – width 540 mm, weight 60 to 80 gsm, maximum roll diameter 650 to 700 mm
Raw material specifications: hydrophilic nonwoven fabric (sss spunbond) (tissue) – sss, width 600 mm, weight 13 gsm, maximum roll diameter 650 mm
Raw material specifications: polyethylene film – weight 19 to 25 gsm, width 600 mm, maximum roll diameter 400 to 550 mm
Raw material specifications: structural adhesive – type 818
Raw materials per 40 foot container: depends on the size of the finished product being produced. For example, finished product size of 600 x 600 mm: a 40 foot container holds about 100 rolls of pe film, 100 rolls of hydrophilic nonwoven fabric and 150 rolls of absorbent layer
Unwinding Part
Active uncoiling of raw materials
Belt friction to match a set of core body volume infinitely adjustable-speed pulley friction
Fabric belt friction to match a set of infinite speed friction pulley volume
Bottom membrane rolling with an infinitely adjustable-speed pulley belt friction volume
Absorbent Core Section
Absorbing core embossing device, 1 set
Absorbing core cutting (internal cutting) device, 1 set (with 1 set servo drive)
Pad tri-folding device, 1 set (with 2 servo drives) (custom 5 panel fold is available)
Products pressure device, 1 set
Cutter device, 1 set (with servo drive)
Output conveyor belt device, 1 set
Frame Wallboard And Transmission Part
Frame sides are 20 mm steel plate and base frame uses 120 x 120 mm square tubing

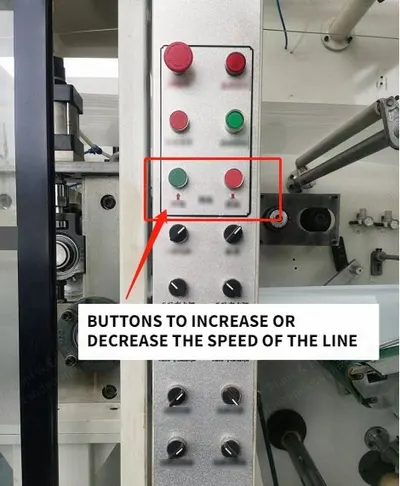

Machine uses mechanical drive of coupling, timing belt and multi-axis connection
Main drive uses high-precision helical gearbox universal joint connection to ensure more stability at high-speed operation

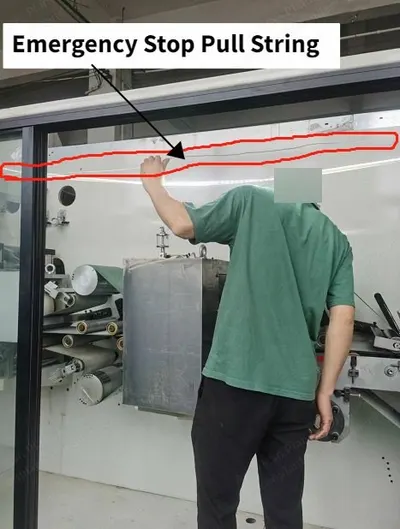

Finished pad is arranged and set out by the output mechanism
Suction Air Piping

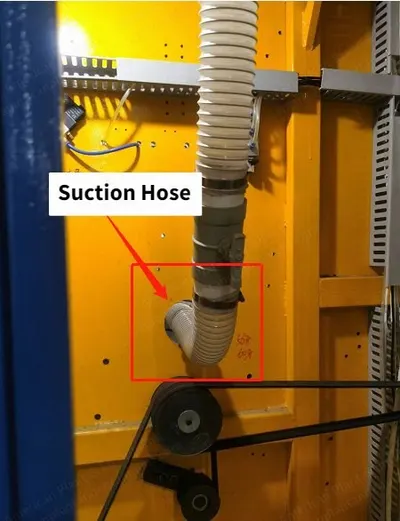

Main suction pipe for the machine is made of steel.

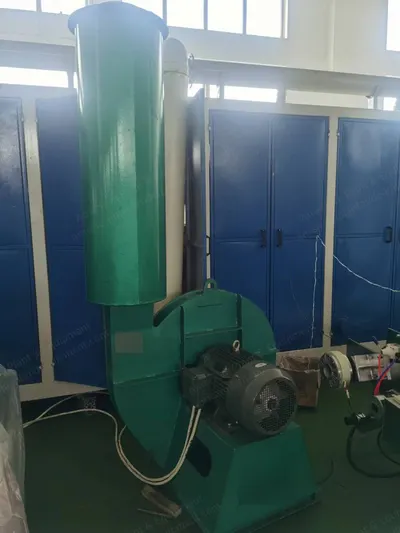

The main suction hose connector is through a reinforced plastic hose and the suction of each section is adjustable. (Suction holes are connected with air hose and connected to suction fan. Machine is equipped with centrifugal suction fan, power 18.5 kW)
There are holes on the conveyor to create a suction surface.
Airflow (for air compressor): 1100 liters per minute; suction pressure 6 to 8 bars (atmospheres)
Spare Parts Included
Inside cutting blade – 1 piece
Outside cutting blade – 1 piece
Electrical schematic diagram – 1 piece
Equipment operation instructions – 1 piece
Electric heat pipe – 1 piece
General tools – 1 set
Tool box – 1 piece
Recommended spare parts: internal and external cutting blades, electric heating tubes, flat belts and synchronous belts
Location And Shipping
Required floorspace: length 16000 x width 2200 x height 2600 mm
Requires 1 40 foot hq container and 1 20 foot container to ship
