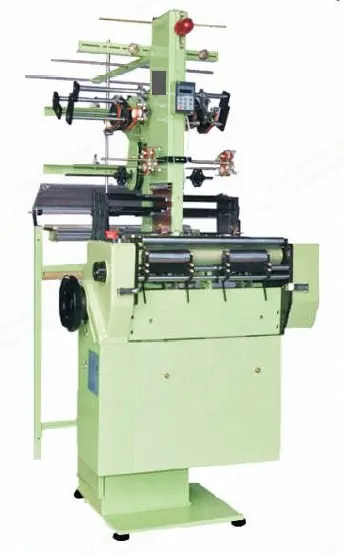

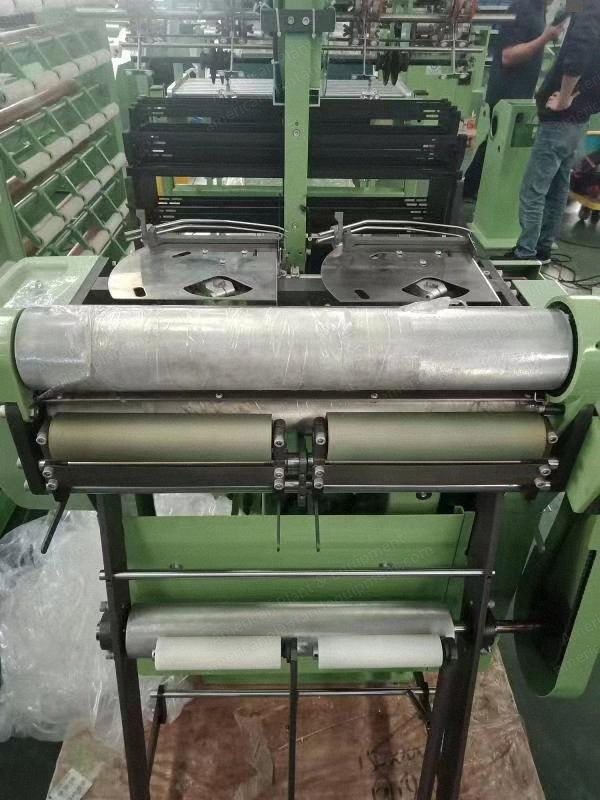

Description Overview Used to produce high quality, varied elastic or non-elastic belts, such as underwear elastic, ribbon, shoes, belts in garment industry, laces, etc. Stepless frequency conversion motor, easy to operate Brake system is suitable and reliable to protect the yarn Optional electronic weft density system and servo motor Specifications Weaving heads: 2 Reed width: 175 mm Maximum tape width: 170 mm Number of frames: 20 Length of frame: 530 mm Pattern chain: 1:8/16-48 Single needle, single weft carrier / double needle, double weft as spare Weaving head: double ribbon plate type / single ribbon plate as spare Weft density: 2.9 to 62.4 per cm Speed: 200 to 800 rpm Frequency inverter Yarn feeding: feeding belt type Take off roller: double silicone 14 position back creel Meter counter Machinery rubber feeder Big handle with two springs Voltage: 220 volts, 3-phase Power: 1.8 kW Dimensions of machine: 1500 x 980 x 2100 mm Weight of machine: 500 kg
