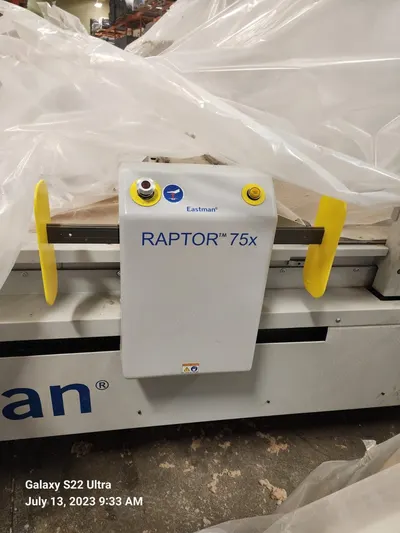

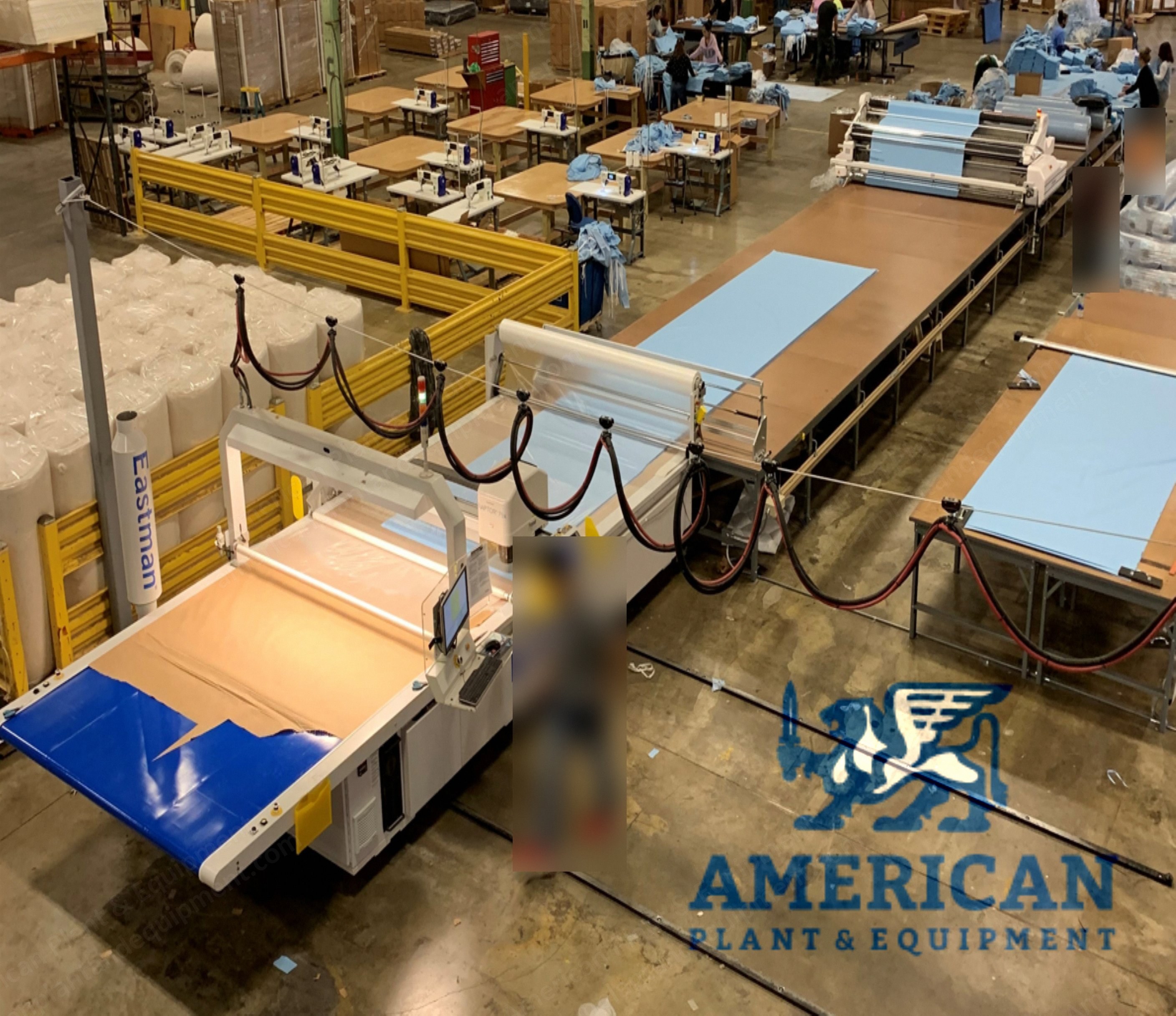

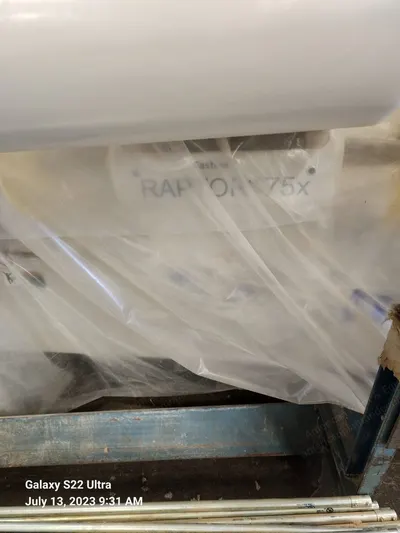

Eastman, Raptor 75x, 78x7.5, 78 in. x 7.5 ft. Working Dimensions, 3 in. Cutting Capacity, 40 HP Vacuum

Eastman, Raptor 75x, 78x7.5, 78 in. x 7.5 ft. Working Dimensions, 3 in. Cutting Capacity, 40 HP Vacuum Sold

Description

  1. Overview
    1. Super excellent condition, like new
    2. Machine is practically new, only ran about 200 hours
    3. In perfect running condition
    4. Available immediately
  2. Standard Equipment
    1. Reciprocating straight knife with quick-removal clamp, 10 spare blades
    2. 2 automated sharpening discs, 1 extra set of discs included (choice of: 60, 80, 100, or 150 grit)
    3. Dual-x rack and pinion drive with brushless servo motors
    4. Y-axis belt drive with brushless servo motors
    5. Onboard control panel with full interface terminal and joystick
    6. 2 stop discs; 4 remote emergency stops
    7. E-chain x-axis cable earner
    8. Laser diode alignment tool
    9. Integrated control cabinet - 220V, 3 phase, 50/60 Hz standard
    10. Computer, software and support
    11. 20" flat screen monitor
    12. Windows 10, 64-bit operating system
    13. Cutpro- cutter control and management software
    14. Distributed motion control with intelligent network nodes
    15. Intellicut™ knife control software
    16. Vacuum table
    17. 40 hp, vacuum turbine
    18. Long lasting bristle blocks
    19. Chain driven cutting surface
    20. Heavy-duty ball bearing bristle support surface
    21. 12 dp rack and pinion drive system
    22. Conveyor belt take-off table with manual and automated control
    23. Take-off end bristle transition fingers
    24. Plastic overlay roll holder - includes (1) roll of plastic
    25. Stacked silencer and replaceable air filter
    26. Variable frequency drive (VFD) vacuum control - 440V, 3 phase, 50/60 Hz standard
  3. Working Dimensions
    1. X-axis: 7.5 ft. / 2280mm
    2. Y-axis: 78. / 19800mm
  4. Overall Dimensions
    1. 110" width, 19' length
    2. 6.6' unloading conveyor
    3. 3" compressed height cutting capacity - material dependent
  5. Power Requirements
    1. Controller: 220V/3PH - standard. Any other voltages would either require a step up/down transformer
    2. Vacuum: 380/440/575V, 3PH, 50/60 Hz
  6. Shop Air Requirements
    1. 9 flpsi minimum @ 18 scfm
  7. Condition
    1. Status: stopped, removed from production area, can be seen running
