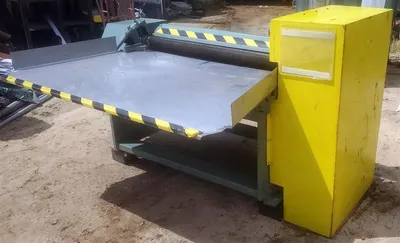

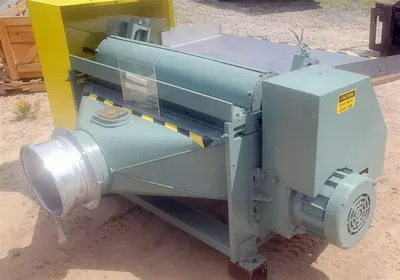

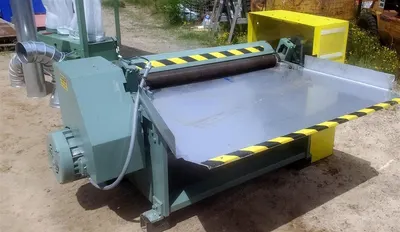

Hollingsworth, Shredmaster, 1981, 42 inch Width, 7.5 HP, Dual Shaft

Hollingsworth, Shredmaster, 1981, 42 inch Width, 7.5 HP, Dual Shaft

Description

  1. Overview
    1. 42" wide opening (1066 mm)
    2. Dual shaft feed/shred

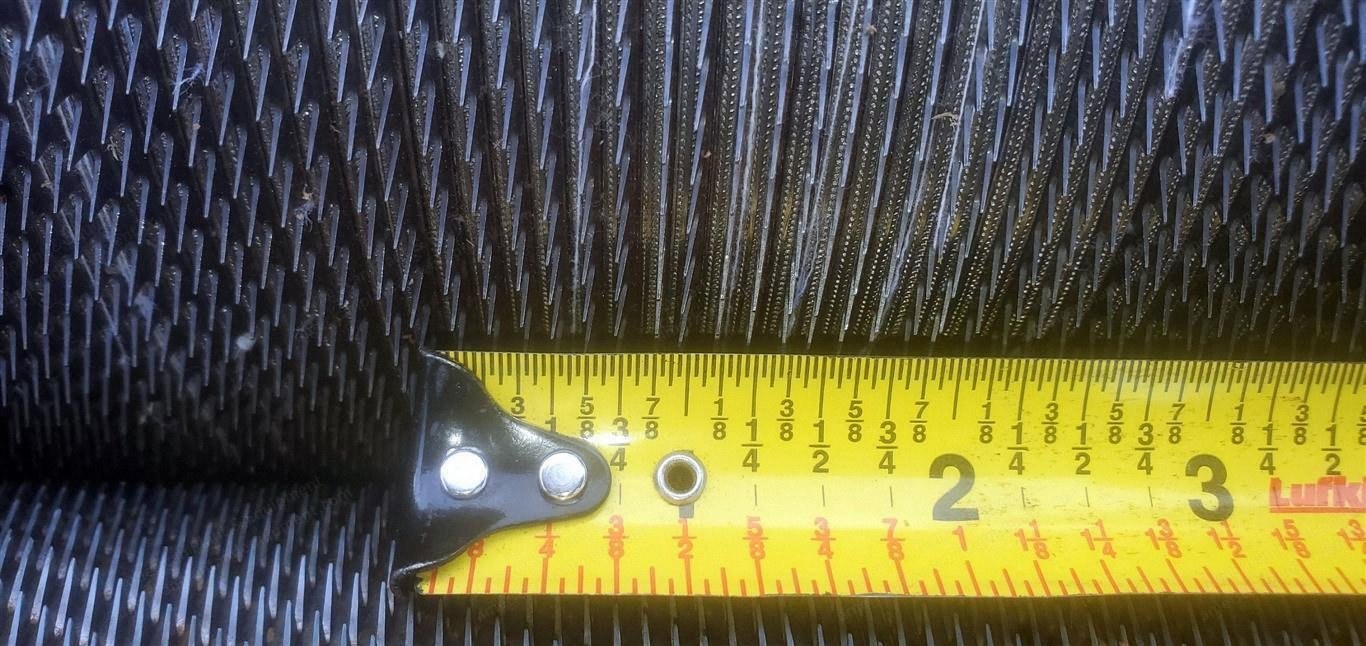

    3. 10 teeth per inch on both shafts
    4. Variable output speed
    5. Comes with updated digital controller with AC VFD drive
  2. Specifications
    1. 7.5 hp, 1800 rpm motor is 575 volt, 3-phase, 60 Hz
    2. Input voltage: 460/600 volts, 3-phase
    3. Overall dimensions: 10 feet deep x 82" wide, dust collector mounted directly behind shredder (these dimensions do not include the control panel which is 36" wide x 18" deep)
    4. Weight: 1283.67
  3. Included Items

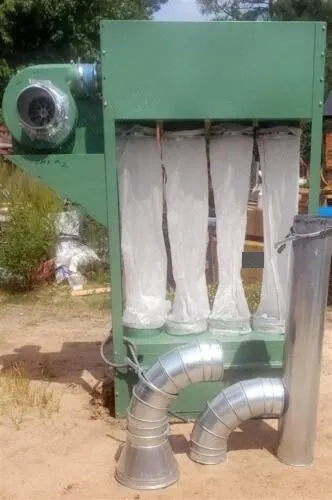

    1. 3 hp baghouse dust collector with extra bags and all ductwork
    2. Stainless steel infeed chute (not attached; will need support legs added or chute bolted to infeed side of machine)
  4. Condition
    1. In excellent condition
    2. Needs a notched timing belt and notched timing pulley replaced that connects shred shaft to feed shaft
  5. Shipping Dimensions
    1. Will ship as three separate pieces: shredder, control panel, and dust collector
    2. Shredder: 60" x 86" x 50" h, 1900 lbs, class 100, NMFC 133300-09

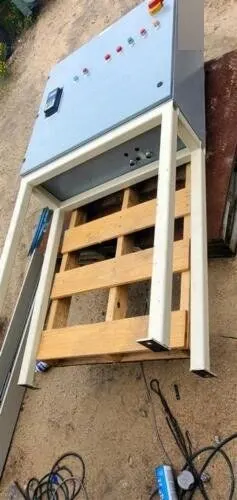

    3. Control panel: 42" x 82" x 20" h, 340 lbs, class 175, NMFC 133300-08
    4. Dust collector: 38" x 96" x 76" h, 590 lbs, class 400, NMFC 133300-07
