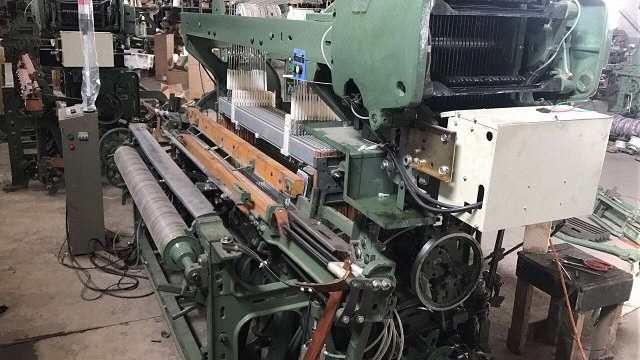

NovaStar, WM269, Shuttle Loom, Working Width 80 Inches, with Dobby, 4 Colors (New)

NovaStar, WM269, Shuttle Loom, Working Width 80 Inches, with Dobby, 4 Colors

Description

  1. Overview
    1. Shuttle loom
    2. Working width: 80 NCHes
    3. With dobby
    4. 20 levers (electrically controlled)
    5. Dobby is controlled by thumb drive
    6. Design is generated on a desktop computer, transferred to a thumb drive, then loaded onto the control panel
    7. Manual weft replenishing (when yarn is finished in pirn, needs to be changed by hand)
  2. Specifications
    1. Harness frame: 10 pieces
    2. Harness wire: 4000 pieces
    3. Dropper: 4000 pieces
    4. Reed: 1 piece

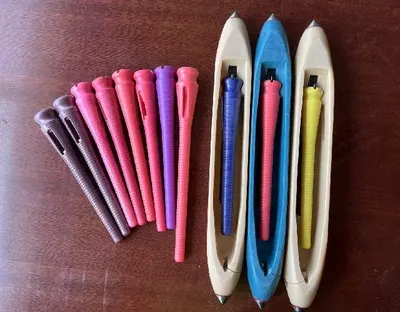

    5. Shuttle: 4 pieces
    6. 4 colors – 4 shuttles
    7. Multi-box color drive (servo motor type): 1.5 kW
    8. Pirn: 10 pieces
    9. Spindle rpm: 300 to 500 rpm
    10. Main motor kW: 0.8 kW
    11. Weight: 1800.0
    12. Dimensions: 3600x1800x1700mm
  3. Condition
    1. Reed included, count to be confirmed
  4. Included
    1. Warp beam, one piece included
    2. Cloth roll, one piece included
